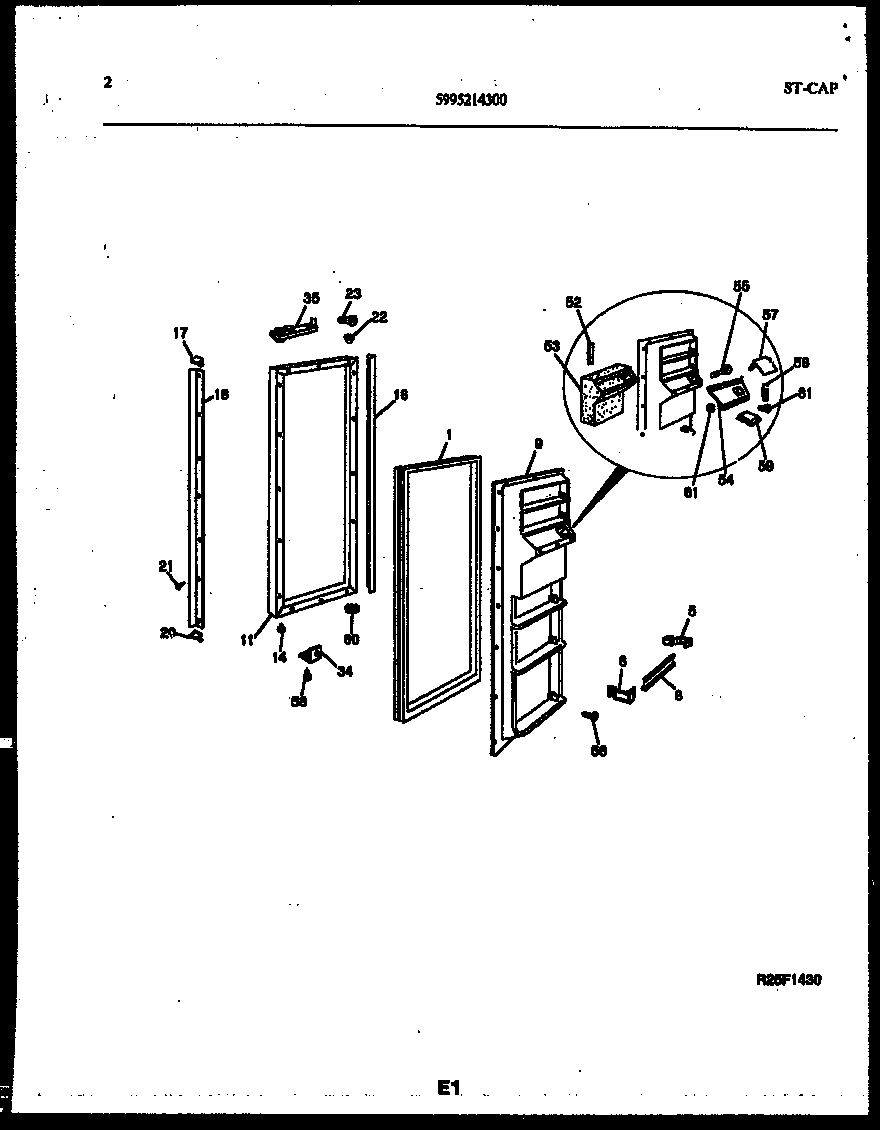

RS249MCD2 02 – FREEZER DOOR PARTS

Products

Position	Product
*57449	INSULATION-BULK (NON-ILLUSTRATED)
*57449	WCI 5303208843
1	WCI 5303208398
5	SUPPORT RS (5)
6	SUPPORT LS (5)
8	WCI 5303208841
9	WCI 5318062901
11	WCI 5303916545
14	WCI 5315230801
16	WCI 5303275365
17A	WCI 5300179271
17	WCI 5300177143
18A	WCI 5300177144
18	WCI 5303279715
20A	WCI 5300179270
20	WCI 5300177142
21	WCI 5308011745
22	WCI 5303001022
23	WCI 5303001020
34	WCI 5308000790
35	WCI 5303200272
52	WCI 5303001046
53	WCI 5308017045
54	WCI 5303205851
55	WCI 5303001048
56	SPRING-FLIPPER
57	WCI 5303205848
58	5304455651 Frigidaire Refrigerator Screw
59	WCI 5303211300
60	BUSHING-LOWER HINGE
61	NUT, SELF-THREADING, 1/8
81	5304455650 Frigidaire Refrigerator Screw
