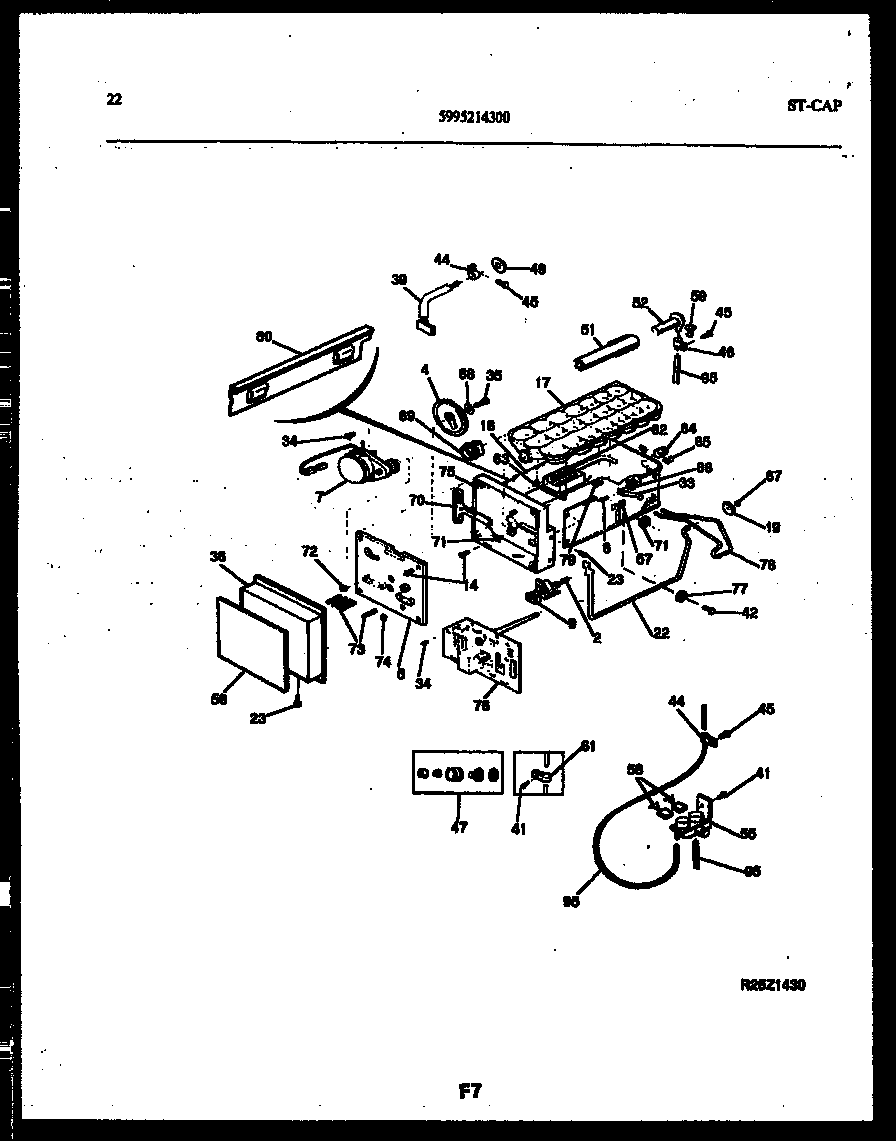

RS249MCD2 12 – ICE MAKER AND INSTALLATION PARTS

Products

Position	Product
2	WCI 5303001139
4	WCI 5301124984
5	PLATE-MOUNTING
6	SCREW - TRANSFORMER (2) (NON-ILLUSTRATED)
7	WCI 5301124982
9	WCI 5301124983
14	SCREW (5)
16	WCI 5301138166
17	ICE TRAY
19	BEARING-GAUGE ARM
22	SENSING ARM
23	WCI 5303001020
33	SPRING-TRAY
34	WCI 5301124507
35	WCI 5303001119
36	WCI 5303015830
39	WIRING HARNESS-ICE MAKER (UPPER)
41	5308000039 Frigidaire Refrigerator Screw
42	WCI 5308012819
44	5308000133 Frigidaire Refrigerator Clamp
45	5304455651 Frigidaire Refrigerator Screw
46	5303001193 Frigidaire Refrigerator Clamp
47	ADAPTER-WATER SPLY
49	5303001147 Frigidaire Refrigerator Plug-Harness Hole
51	WCI 5308015765
52	215456100 Frigidaire Refrigerator Water Inlet Tube
55A	CAP-WATER VALVE (NON-ILLUSTRATED)
55	WATER VALVE SOLENOID
56	WCI 5303208861
57	WCI 5308012818
58	WIRING HARNESS-ICE & WATER (LOWER)
59	WCI 5303001191
61	5304455846 Frigidaire Refrigerator Clamp
62	WCI 5303001141
63	WCI 5301138379
64	WCI 5300618683
65	WCI 5303001132
