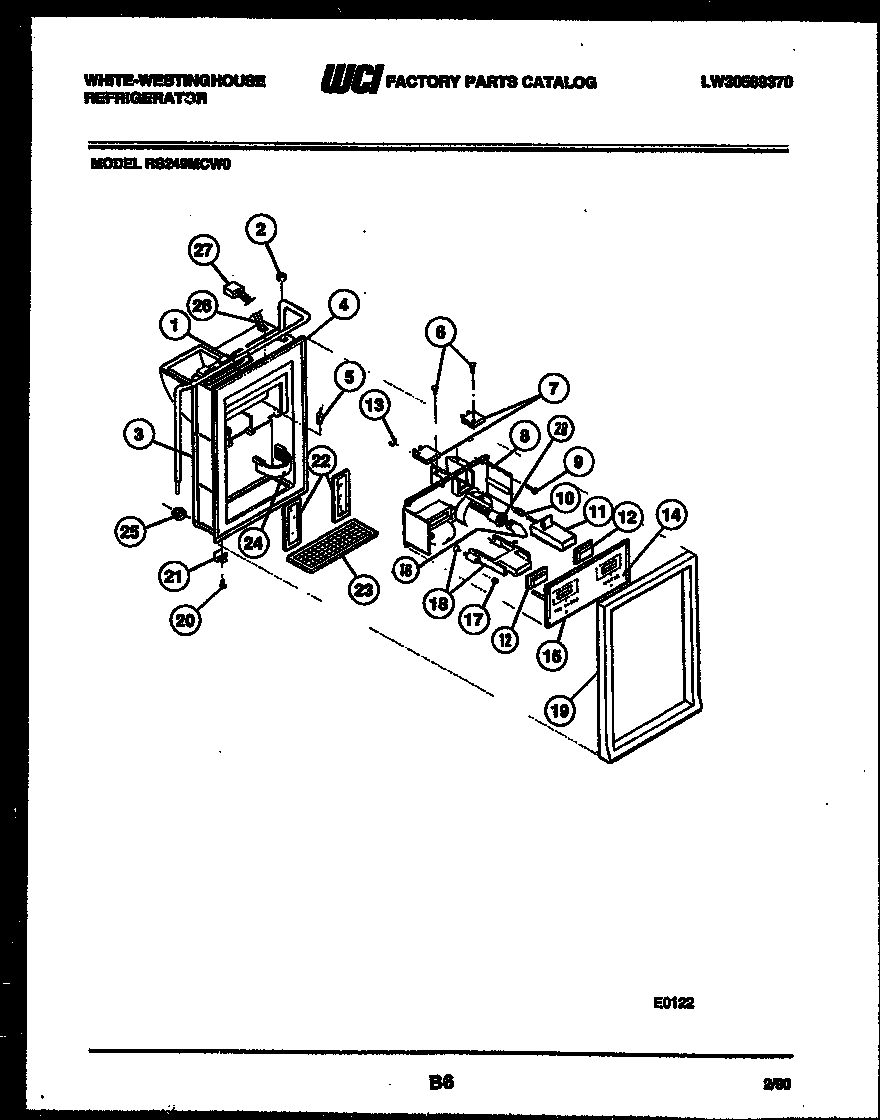

RS249MCV0 07 – ICE DOOR, DISPENSER AND WATER TANKS

Products

PositionProduct
*25798WCI 5303001074
*25798WCI 5318653301
1TUBE-WATER INLET & PILOT ASSY
2WCI 5303001066
3WCI 5308015588
4WCI 3202406
5WCI 5308010326
6SCREW (4)
7WCI 5303001078
8PLATE-SWITCH MTG
9SCREW (4)
10SPRING-WATER ACTUATOR
11WCI 5303001077
12BUTTON-ICE
12ALABEL-ACTIVATOR BUTTON (NON-ILLUSTRATED)
13WCI 5302832214
14WCI 5303208251
15FRONT PANEL
16WCI 5304506475
17WCI 5303001081
18ACTUATOR & CUP ASSY-ICE
19WCI 5303205853
19AWCI 5303208868
20WCI 5308010330
21WCI 5300179966
22PAD-FILL (2)
23WCI 5303208845
24WCI 5318000402
25NUT, SELF-THREADING, 1/8
26WCI 5303001567
27PLUG-HARNESS BOTTOM
28SOCKET-LIGHT BULB
