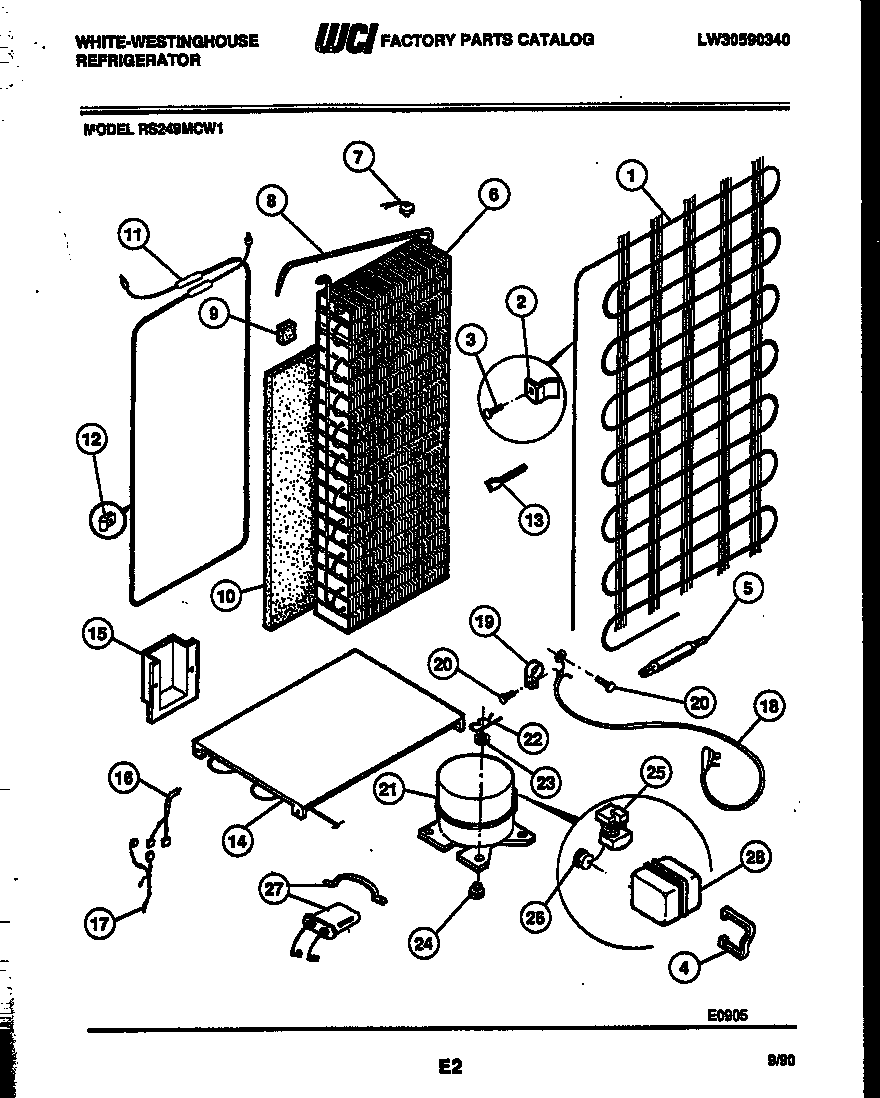

RS249MCV1 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*35510	WCI 5300189379
1	WCI 5308017119
2	BRACKET, MOUNTIN, CONDENSER, (4)
3A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
5	5303305677 Frigidaire Replacement Filter Dryer Filters
6A	WCI 5308009619
6	WCI 5303916605
6B	TUBE-INLET (NOT ILLUSTRATED)
7	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
8	WCI 5308017565
8A	5308000133 Frigidaire Refrigerator Clamp
9	WCI 5308000828
10	WCI 5303001235
11	WCI 5303007568
12	WCI 5308002777
13	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
14	WCI 5308017118
14B	5308000039 Frigidaire Refrigerator Screw
14D	218843801 Frigidaire Refrigerator Screw
14C	WCI 5308002780
14A	WCI 5308002782
15	WCI 5303001197
16	WCI 5303015098
17	WCI 5308009616
18	CORD-ELECTRIC POWER
19	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
20	5304455651 Frigidaire Refrigerator Screw
21	COMPRESSOR WITH ELECTRICALS
22	CLIP - COMPRESSOR MTG
23	WASHER-COMPR MTG
24	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	RELAY-TL
26	WCI 5308017526
27	CAPACITOR
