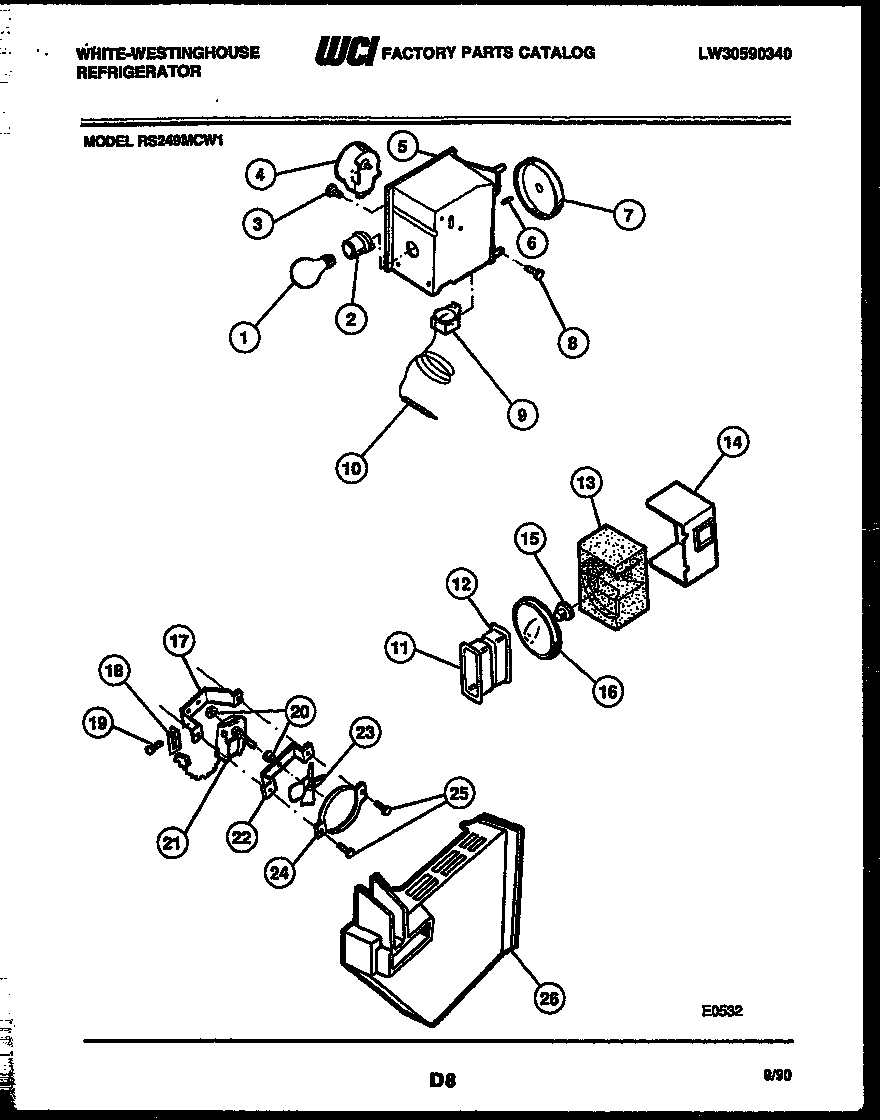

RS249MCW1 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

Position	Product
*35487	WCI 5308000809
*35487	WCI 5303015098
*35487	WCI 5308000808
1	316538904 Frigidaire Oven Lamp Light
2	SOCKET-LIGHT/LAMP
3	5304455649 Frigidaire Refrigerator Screw
4	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
5	WCI 5308017561
5A	WCI 3001269
6	WCI 5303001260
7	WCI 5308010380
8	5304455852 Frigidaire Refrigerator Screw
9	WCI 5308000068
10	TUBE
11	WCI 5303001276
12	WCI 5303001277
12A	WCI 5303001280
13	WCI 5308000771
14	WCI 5303211383
14A	5304455650 Frigidaire Refrigerator Screw
15	WCI 5300185373
16	WCI 5316521701
17	BRACKET-MOTOR MTG, REAR
18	WCI 5308000107
19	5304455651 Frigidaire Refrigerator Screw
20	G187559 Frigidaire Refrigerator Bushing
21	5300158289 Frigidaire Evaporator Fan Motor
22	WCI 5303001226
23	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
24	RING-FAN ORIFICE
25	218843801 Frigidaire Refrigerator Screw
26	WCI 5308015764
