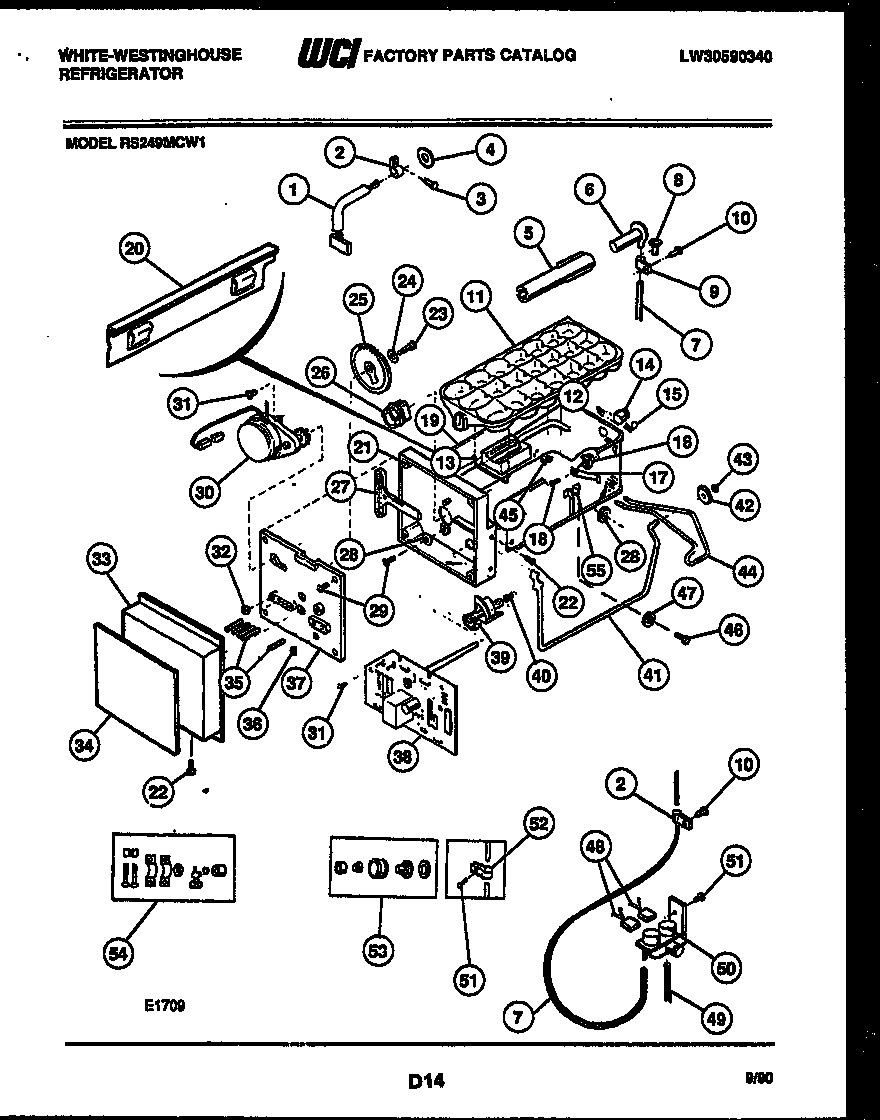

RS249MCW1 09 – ICE MAKER AND INSTALLATION PARTS

Products

Position	Product
*35504	HOLDER-CABLE
1	WIRING HARNESS-ICE MAKER (UPPER)
2	5308000133 Frigidaire Refrigerator Clamp
4	5303001147 Frigidaire Refrigerator Plug-Harness Hole
5	WCI 5308015765
6	215456100 Frigidaire Refrigerator Water Inlet Tube
8	WCI 5303001191
9	5303001193 Frigidaire Refrigerator Clamp
10	5304455651 Frigidaire Refrigerator Screw
11	WCI 53032832432
12	WCI 5303001141
13	WCI 5301138379
14	WCI 5300618683
15	WCI 5303001132
16	WCI 5300174436
17	SPRING-TRAY
18	SCREW – TRANSFORMER (2) (NON-ILLUSTRATED)
19	WCI 5301138166
20	WCI 5300175135
21	HOUSING-ICE MAKER
22	WCI 3001020
23	WCI 5303001119
24	WCI 5303001117
25	WCI 5301124984
26	WCI 5301124972
27	WCI 5303001136
28	WASHER
29	SCREW (5)
30	WCI 5301124982
31	WCI 5301124507
32	NUT – HEX 10-32 LH
33	WCI 5303015830
34	WCI 5303208861
35	FOLLOWER-CAM (PIN)
36	RETAINING RING
37	PLATE-MOUNTING
38	PRINTED CIRCUIT BOARD
39	WCI 5301124983
40	WCI 5303001139
41	SENSING ARM
42	BEARING-GAUGE ARM
43	RETAINING RING (NON-ILLUSTRATED)
44	WIRE-SHUT OFF
45	RETAINER-SHUT OFF WIRE (NON-ILLUSTRATED)
46	WCI 5308012819
47	WASHER-NYLON,3/16 X 5/8 OD
48	WIRING HARNESS-ICE & WATER (LOWER)
49	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
50	WATER VALVE SOLENOID
50A	CAP-WATER VALVE (NON-ILLUSTRATED)
51	5308000039 Frigidaire Refrigerator Screw
52	5304455846 Frigidaire Refrigerator Clamp
53	ADAPTER-WATER SPLY
54	WCI 5308000247
55	WCI 5308012818
