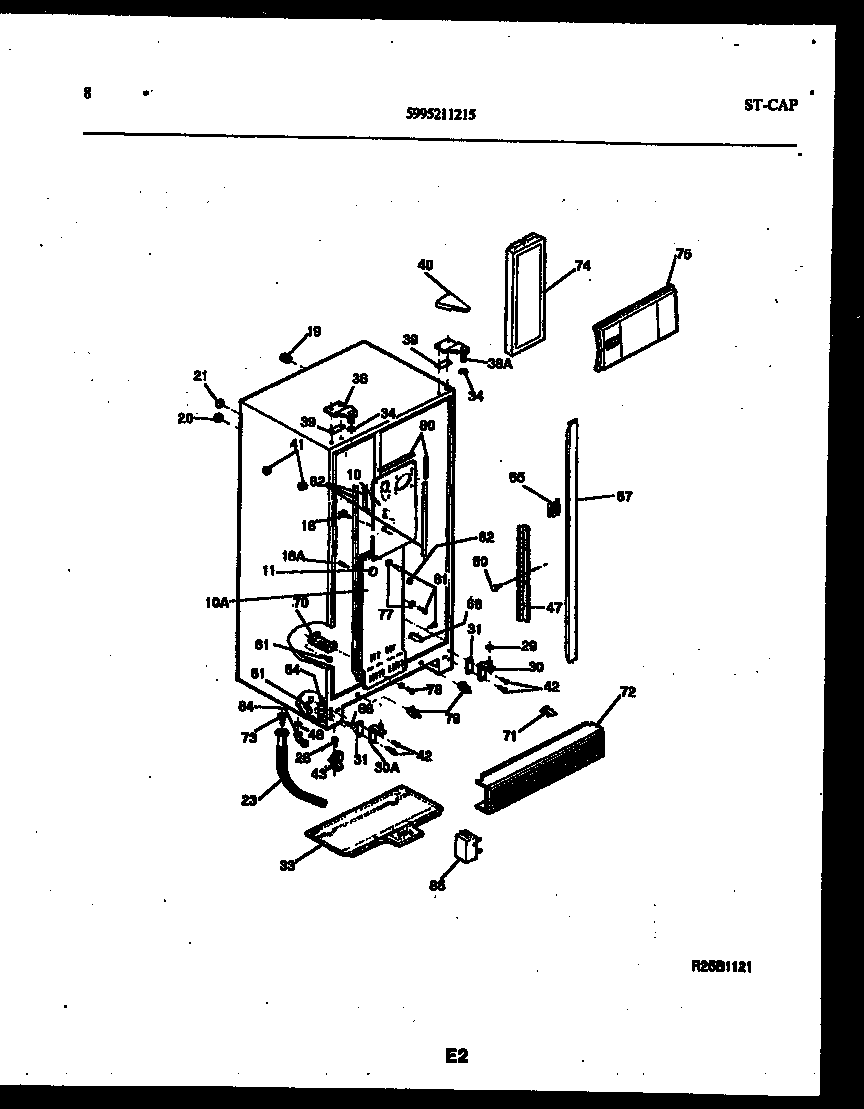

RS249NCD1 05 – CABINET PARTS

Products

Position	Product
*55082	PUSH NUT-SCREW
*55082	CLIP-WIRING HARNESS
47	CHANNEL-SHELF MTG (2)
48	NUT, 7/16 X 20, NYLON
60	5304455852 Frigidaire Refrigerator Screw
61	WCI 5300077210
62	WCI 5303001231
64	WCI 5303001273
65	WCI 5303001281
65A	WCI 5300169100
66	WCI 08017447
67	WCI 3916446
68	WCI 5308000013
70	WCI 5308000738
71	CLIP, GRILLE (2)
72	WCI 5303001032
73	WCI 5308000853
74	WCI 5303279503
75	WCI 5303271923
77	WASHER-NYLON,3/16 X 5/8 OD
78A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
78	5304455651 Frigidaire Refrigerator Screw
79A	CLIP-CABLE
79	5303289051 Frigidaire Refrigerator Light Switch
80	WCI 5303001219
81	5304455650 Frigidaire Refrigerator Screw
82	WCI 5303001233
84	WCI 5308010289
85	COVER-BOTTOM HINGE
