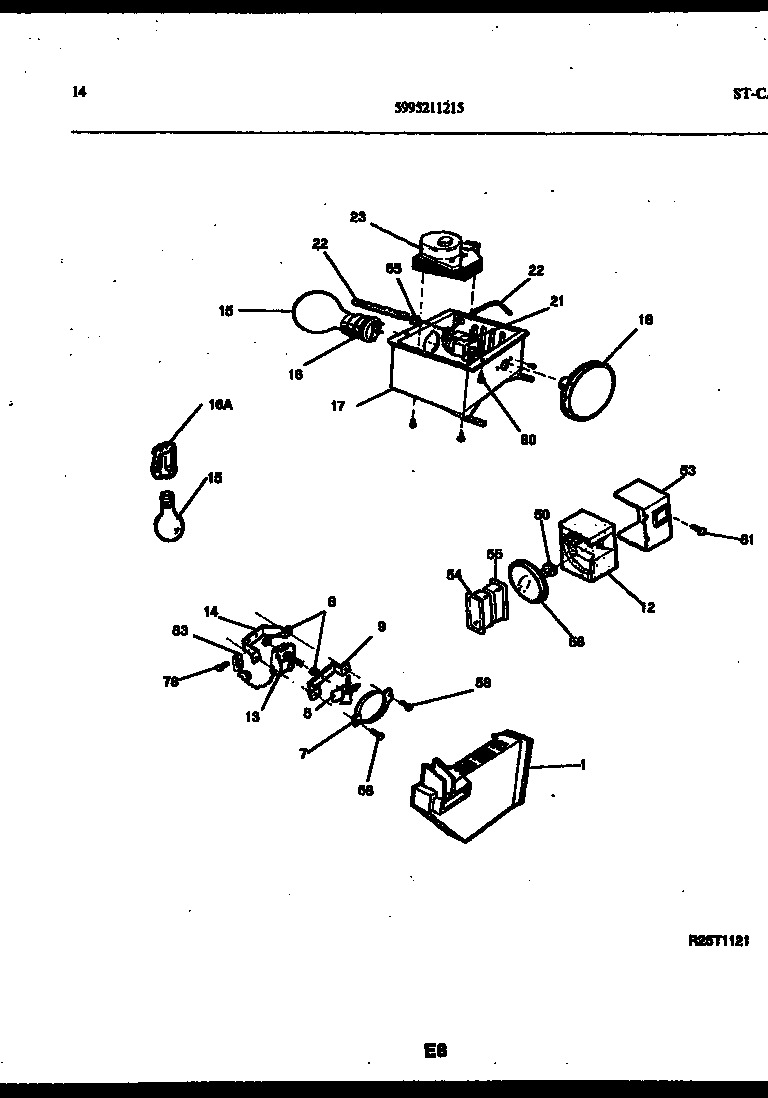

RS249NCD1 08 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

Position	Product
1	WCI 5308015764
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
12	WCI 5308000771
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
15	316538904 Frigidaire Oven Lamp Light
16A	218906802 Frigidaire Light Lamp Socket
16	SOCKET-LIGHT/LAMP
17	WCI 5308017561
17A	WCI 3001269
18	WCI 5308010380
21	WCI 5308000068
21A	WCI 5303001260
22	TUBE
23A	5304455649 Frigidaire Refrigerator Screw
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
50	WCI 5300185373
53	WCI 5303211383
54	WCI 5303001276
55A	WCI 5303001280
55	WCI 5303001277
56	WCI 5316521701
60	5304455852 Frigidaire Refrigerator Screw
78	5304455651 Frigidaire Refrigerator Screw
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
