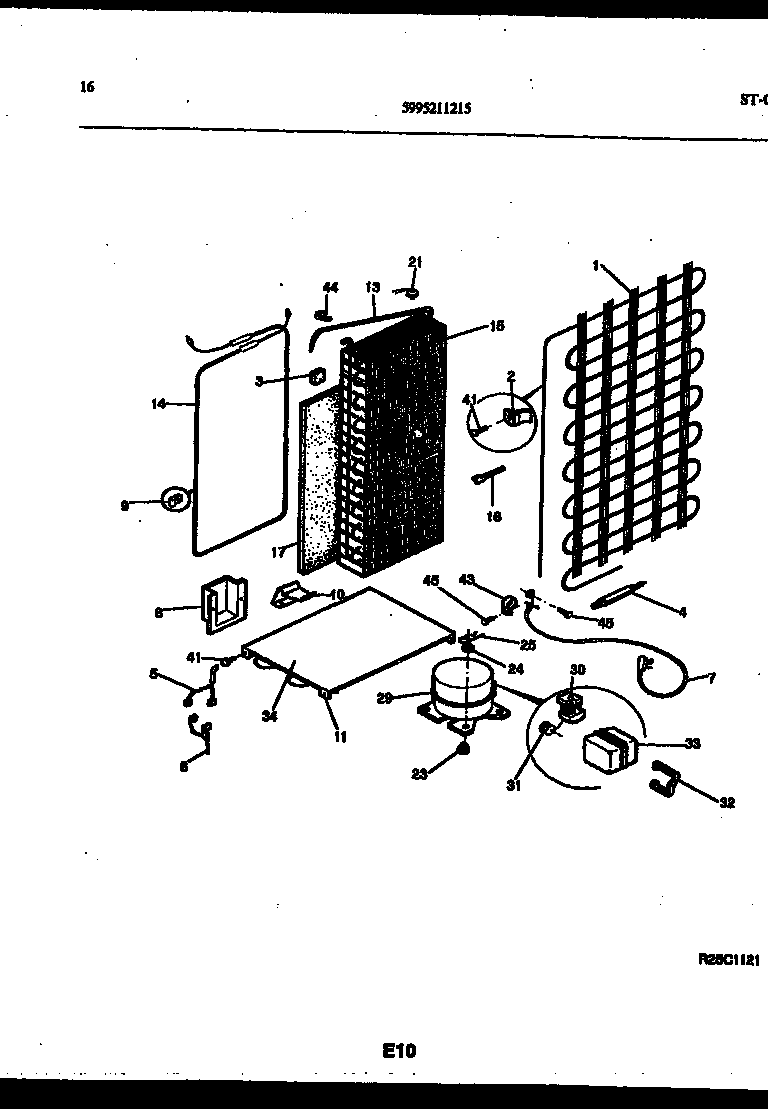

RS249NCD1 09 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI 5308017119
2	BRACKET, MOUNTIN, CONDENSER, (4)
2A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
3	WCI 5308000828
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 5303015098
6	WCI 5308009616
7	CORD-ELECTRIC POWER
8	WCI 5303001197
9	WCI 5308002777
10	WCI 5308002780
11	WCI 5308002782
13	WCI 5308017565
14	WCI 5303007568
15	WCI 5303916605
15A	TUBE-INLET (NOT ILLUSTRATED)
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	WCI 5303001235
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER-COMPR MTG
25	CLIP - COMPRESSOR MTG
29A	CAPACITOR
29	COMPRESSOR WITH ELECTRICALS
30	RELAY-TL
31	WCI 5303279434
32	5303006412 Frigidaire Refrigerator Cover Mounting Strap
34	WCI 5308017118
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
44	5308000133 Frigidaire Refrigerator Clamp
