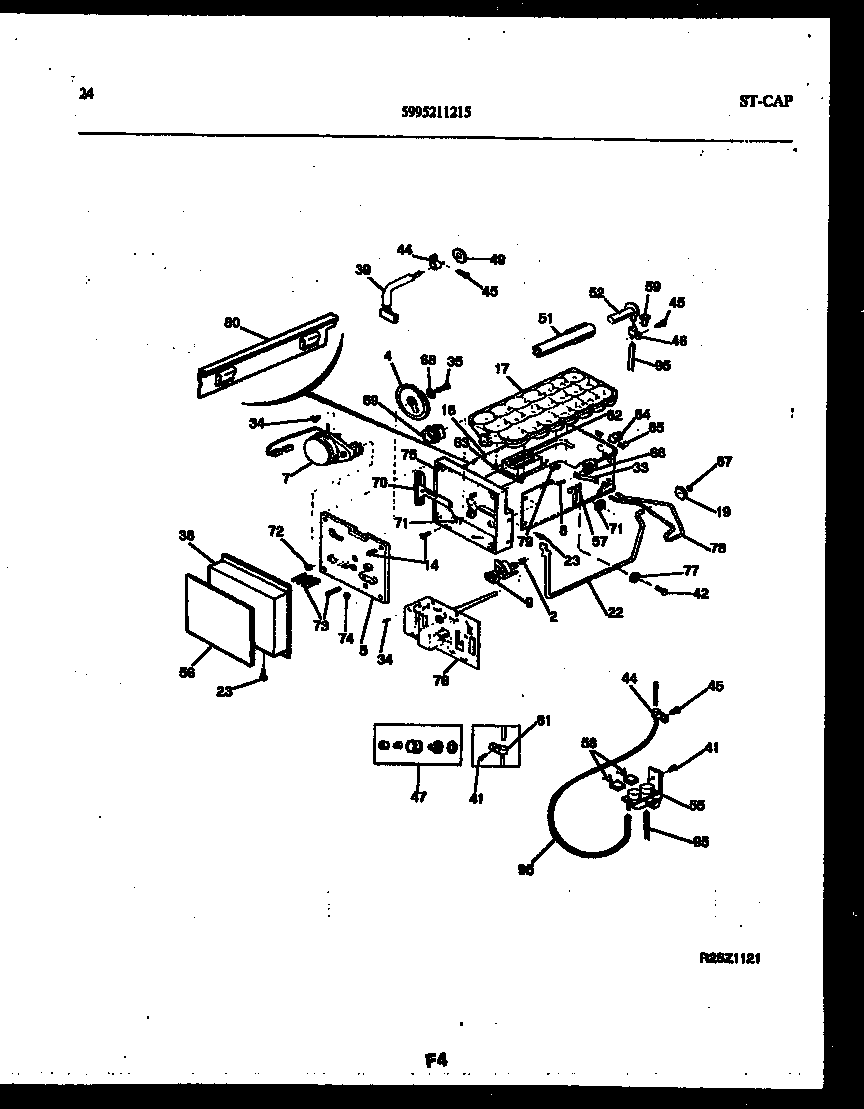

RS249NCD1 13 – ICE MAKER AND INSTALLATION PARTS

RS249NCD1 13 – ICE MAKER AND INSTALLATION PARTS

Written by

in

RS249NCD1 13 – ICE MAKER AND INSTALLATION PARTS

Products

PositionProduct
2WCI 5303001139
4WCI 5301124984
5PLATE-MOUNTING
6SCREW – TRANSFORMER (2) (NON-ILLUSTRATED)
7WCI 5301124982
9WCI 5301124983
14SCREW (5)
16WCI 5301138166
17ICE TRAY
19BEARING-GAUGE ARM
22SENSING ARM
23WCI 5303001020
33SPRING-TRAY
34WCI 5301124507
35WCI 5303001119
36WCI 5303015830
39WIRING HARNESS-ICE MAKER (UPPER)
415308000039 Frigidaire Refrigerator Screw
42WCI 5308012819
445308000133 Frigidaire Refrigerator Clamp
455304455651 Frigidaire Refrigerator Screw
465303001193 Frigidaire Refrigerator Clamp
47ADAPTER-WATER SPLY
495303001147 Frigidaire Refrigerator Plug-Harness Hole
51WCI 5308015765
52215456100 Frigidaire Refrigerator Water Inlet Tube
55ACAP-WATER VALVE (NON-ILLUSTRATED)
55WATER VALVE SOLENOID
56WCI 5303208861
57WCI 5308012818
58WIRING HARNESS-ICE & WATER (LOWER)
59WCI 5303001191
615304455846 Frigidaire Refrigerator Clamp
62WCI 5303001141
