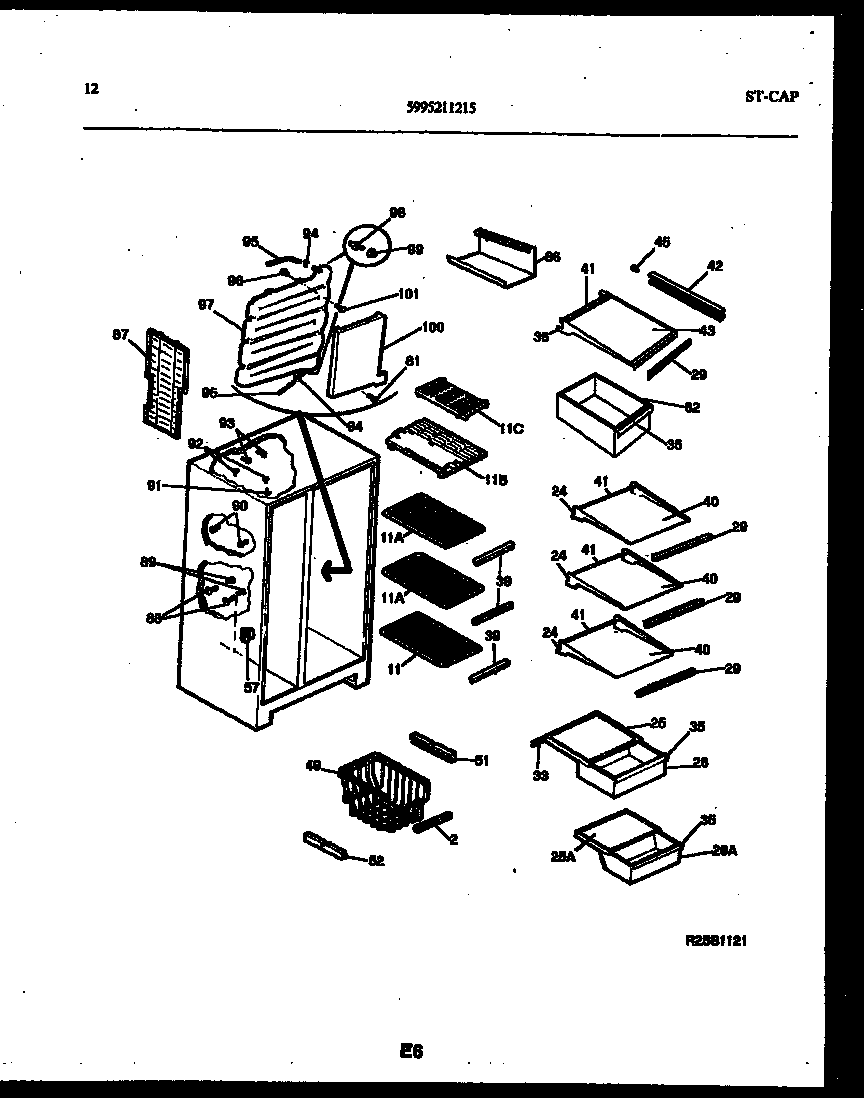

RS249NCH0 07 – SHELVES AND SUPPORTS

Products

PositionProduct
*55091CLIP-CANTILEVER SHLF
815304455650 Frigidaire Refrigerator Screw
86RACK – HANGING – EGG
87WCI 5308010353
88SUPPORT-SHELF (2)
89SCREW (2)
90ASCREW (2)
90WCI 5303001291
91SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
92SUPPORT-ICE ACCESS DR
93SUPPORT-SPEC BARREL (2)
94CLAMP-SUCTION TUBE (NON-ILLUSTRATED)
955308010366 Frigidaire Refrigerator P1-Water Inlet Tube
96SUPPORT-TANK (3)
97WCI 5303917026
98CONNECTOR – TUBE
99GROMMET-TANK
100WCI 5308010332
101131420300 Frigidaire Screw
