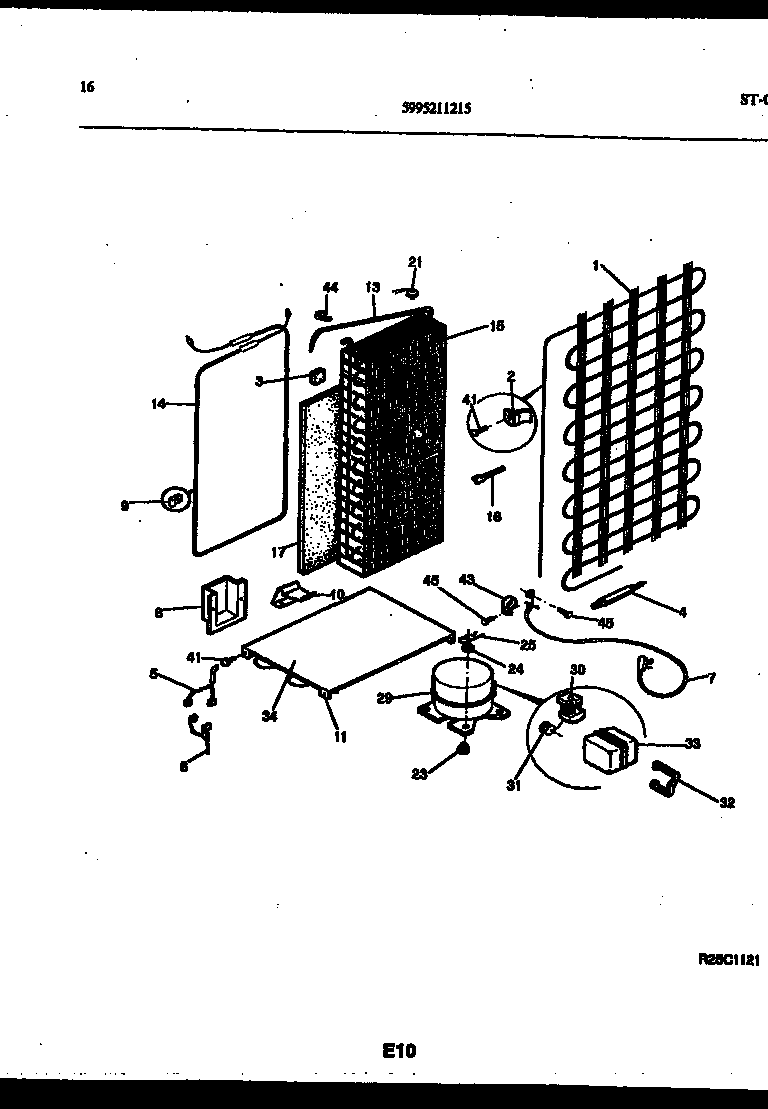

RS249NCH0 09 – SYSTEM AND AUTOMATIC DEFROST PARTS

RS249NCH0 09 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RS249NCH0 09 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI 5308017119
2BRACKET, MOUNTIN, CONDENSER, (4)
2AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
3WCI 5308000828
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 5303015098
6WCI 5308009616
7CORD-ELECTRIC POWER
8WCI 5303001197
9WCI 5308002777
10WCI 5308002780
11WCI 5308002782
13WCI 5308017565
14WCI 5303007568
15WCI 5303916605
15ATUBE-INLET (NOT ILLUSTRATED)
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303001235
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
29ACAPACITOR
29COMPRESSOR WITH ELECTRICALS
30RELAY-TL
31WCI 5303279434
325303006412 Frigidaire Refrigerator Cover Mounting Strap
34WCI 5308017118
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
