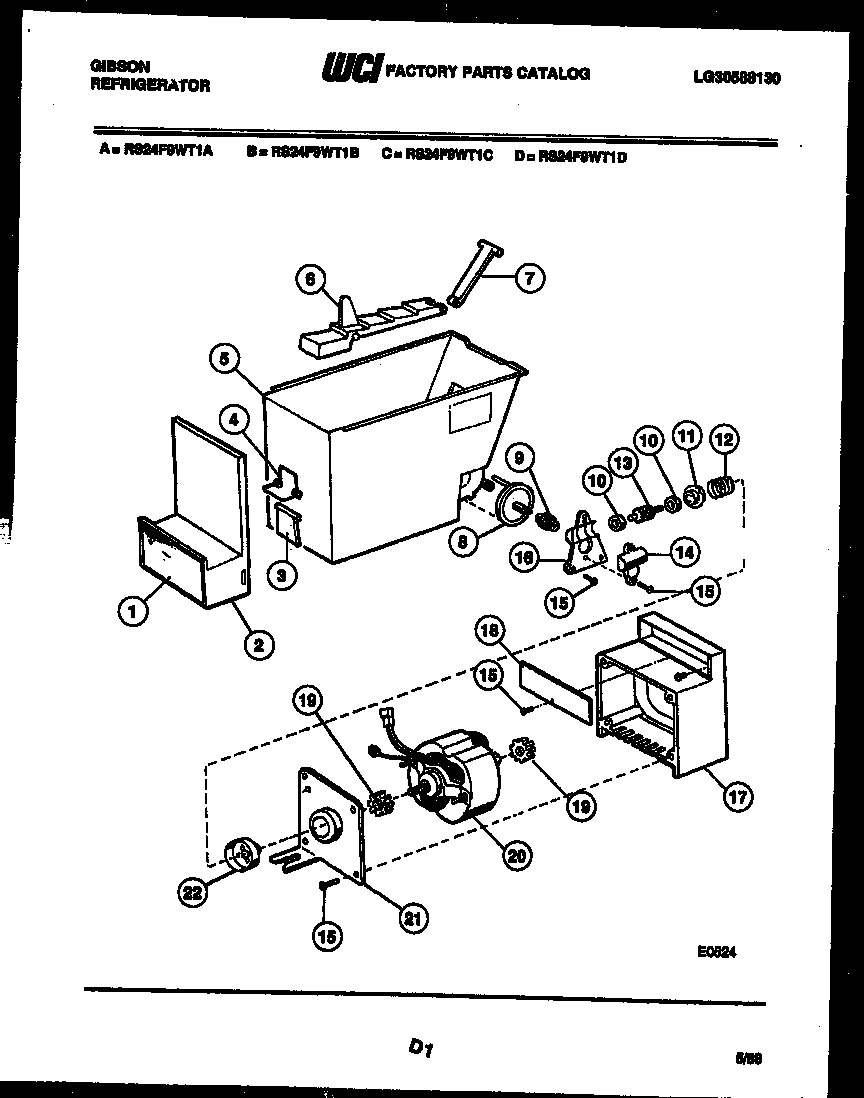

RS24F9WT1A 08 – ICE DISPENSER

Products

Position	Product
1	WCI G185970
2	WCI G174416-06
3	WCI G174407-01
4	SPRING-ICE DOOR
5	WCI G177213-04
6	WCI G174413-01
7	WCI G177697-01
8	DISC, ICE RAM DRIVE
9	WCI G174702
10	WCI G177695
11	COUPLING-ICE DISP CONT
12	SPRING-ILE DISP DRIVE
13	WCI G174406
14	COVER-HOUSING ICE RAM
15	5304455650 Frigidaire Refrigerator Screw
16	HOUSING, ICE RAM DRIVE
17	HOUSING-ICE DISP MOTOR
18	COVER-ICE DISP MOTOR
19	GROMMET-ICE DISP MOTOR (2)
20	MOTOR-ICE DISP RAM
21	BRACKET-ICE DISP MTR
22	COUPLING-ICE DISP MOTOR
