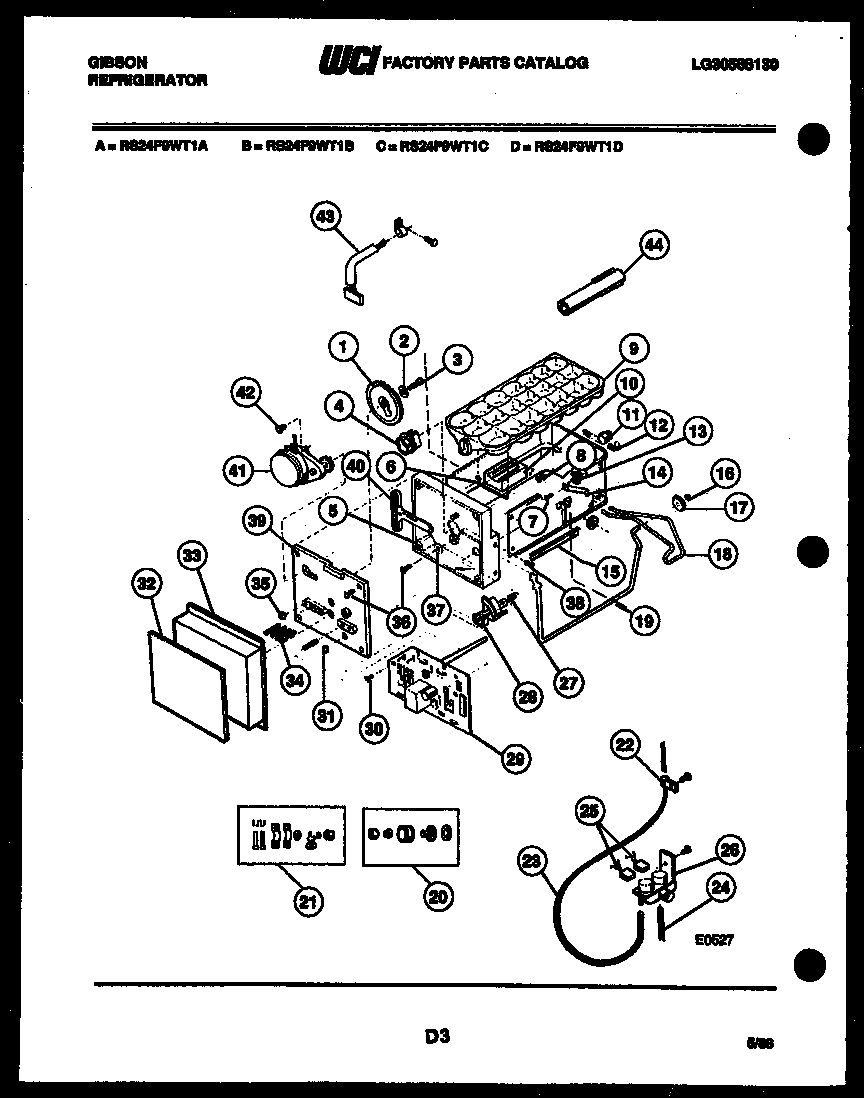

RS24F9WT1A 09 – ICE MAKER PARTS

Products

Position	Product
1	WCI G174484
2	WASHER-CRANK SHAFT
3	WCI G174444
4	WCI G174492
5	HOUSING-ICE MAKER
6	RETAINER, INSULATOR
7	WCI G174442
8	WCI G174417
9	ICE TRAY
10	WCI G174479
11	TRAY-PIVOT (NON-ILLUSTRATED)
12	WCI G174435
13	NUT-PUSH
14	SPRING-TRAY
15	WCI G175135
16	RETAINER RING
17	BEARING-GAUGE ARM
18	WIRE-SHUT OFF
19	SENSING ARM
20	WCI G159415
21	WCI G99428
22	240396801 Frigidaire Refrigerator Tube Clamp
24	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
25	WCI G188236
26	WCI G189174
27	WCI G174485
28	WCI G174497
29	PC BOARD
31	CLIP
32	WCI G185971
33	WCI G177709-06
34B	GUIDE, ICE MAKER TO DIVIDER
34A	WCI G170839
34	CAM FOLLOWER
35	NUT-HEX
36	SCREW (4)
37	WCI G174432
38	WCI G169729
39	PLATE, MOUNTING
40	RACK, GEAR
41	MOTOR-ICE MAKER
42	SCREW, MOTOR TO PLATE (2)
43	WIRING HARNESS-ICE MAKER-UPPER
44	TUBE-FILLER EXTENSION
