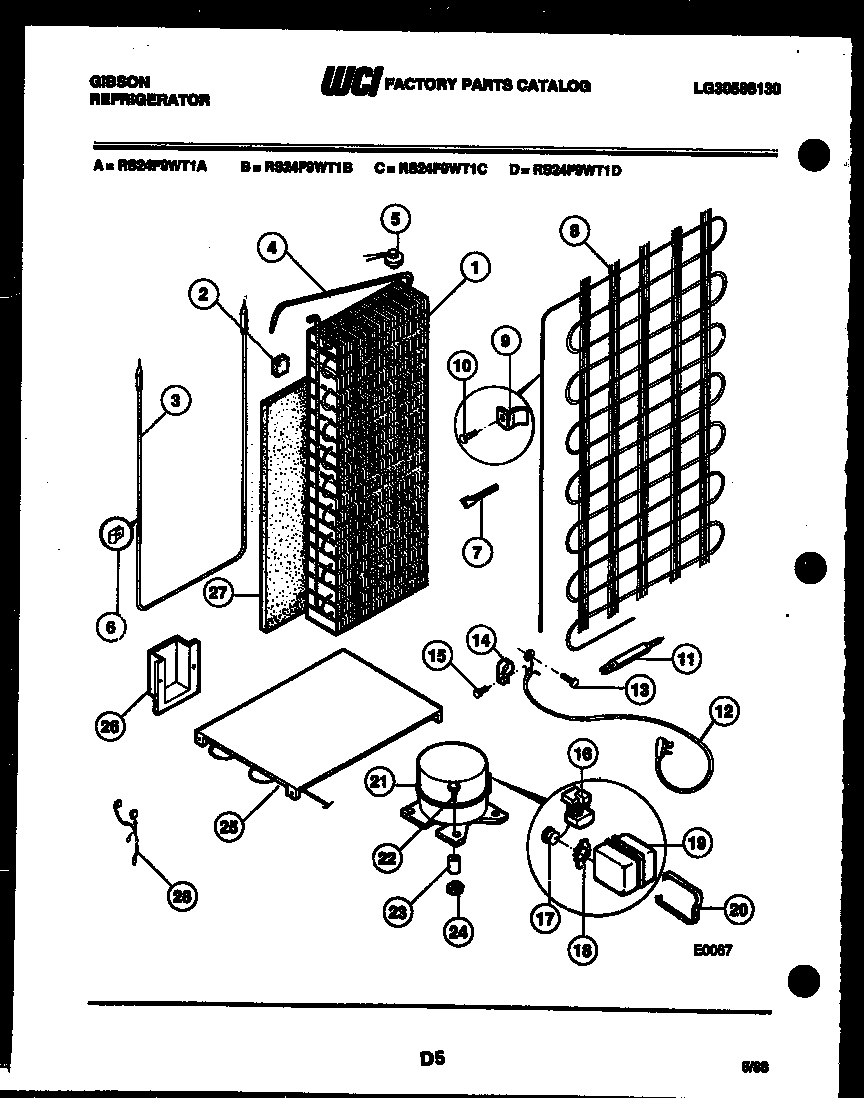

RS24F9WT1A 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

RS24F9WT1A 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RS24F9WT1A 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*79230WCI G189379
1WCI G190339
2WCI G169493
3WCI G175351
4HEAT, EXCHANGE
55303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
6WCI G167363
75308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
8WCI G169757
9BRACKET, COND. MTG (4)
105308000039 Frigidaire Refrigerator Screw
115303305677 Frigidaire Replacement Filter Dryer Filters
12CORD, SERVICE
145303001199 Frigidaire Refrigerator Wiring Harness Clamp
155304455651 Frigidaire Refrigerator Screw
16WCI G182225-05
17WCI G152989
18RETAINER
19COVER
205303006412 Frigidaire Refrigerator Cover Mounting Strap
21AWCI G186120
21WCI G189461
22SCREW – 1/4-20 (3) COMP. MTG.
23SLEEVE COMP MTG (3)
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25BBRACKET-DEFROST PAN MTG (NON-ILLUSTRATED)
25C218843801 Frigidaire Refrigerator Screw
25WCI G171126
25AWCI G171111
26WCI G183584
27WCI G169641
28WIRING HARNESS-COMPR & LIGHTS
