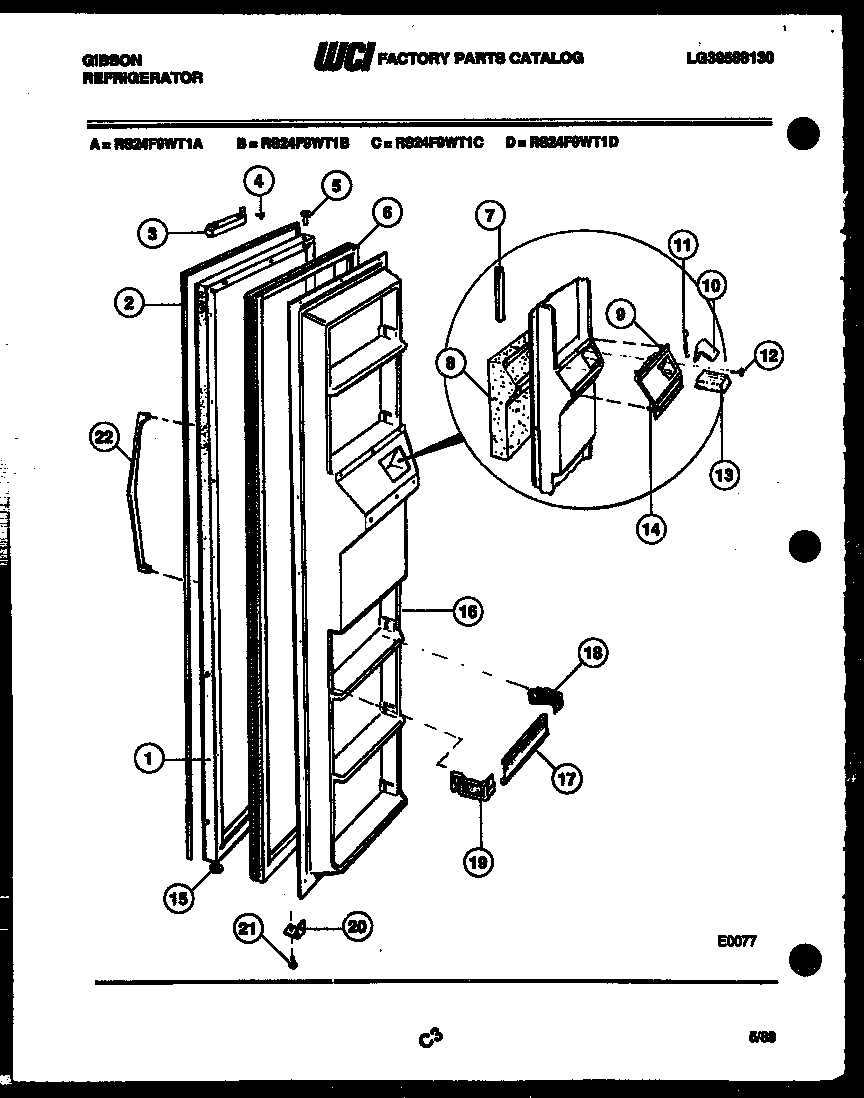

RS24F9WT1B 02 – FREEZER DOOR PARTS

Products

Position	Product
*78767	WCI G176752
*78769	ANCHOR NUT (2) (NON-ILLUSTRATED)
*78768	WCI G185565
1	WCI G188318
1	WCI G188318-09
1A	WCI G152308-01
1	WCI G188318-11
1	WCI G188318-10
1	WCI G188318-08
2	WCI G167404-09
3	DOOR CLOSER
4	WCI G169729
5	WCI G183139
6	WCI G180551-06
7	WCI G177720
8	WCI G187880
9	WCI G179017
10	WCI G175040-05
11	SPRING-FLIPPER
12	5304455650 Frigidaire Refrigerator Screw
13	WCI G185981
14A	PUSH NUT (6) (NON-ILLUSTRATED)
14	WCI G174402-05
15	BUSHING-LWR HINGE
16	WCI G175385-02
17	WCI G154541-49
18	WCI G170016-02
19	WCI G170015-02
20	BUMPER-LIGHT SW.
21	5304455651 Frigidaire Refrigerator Screw
22	WCI G163552-01
