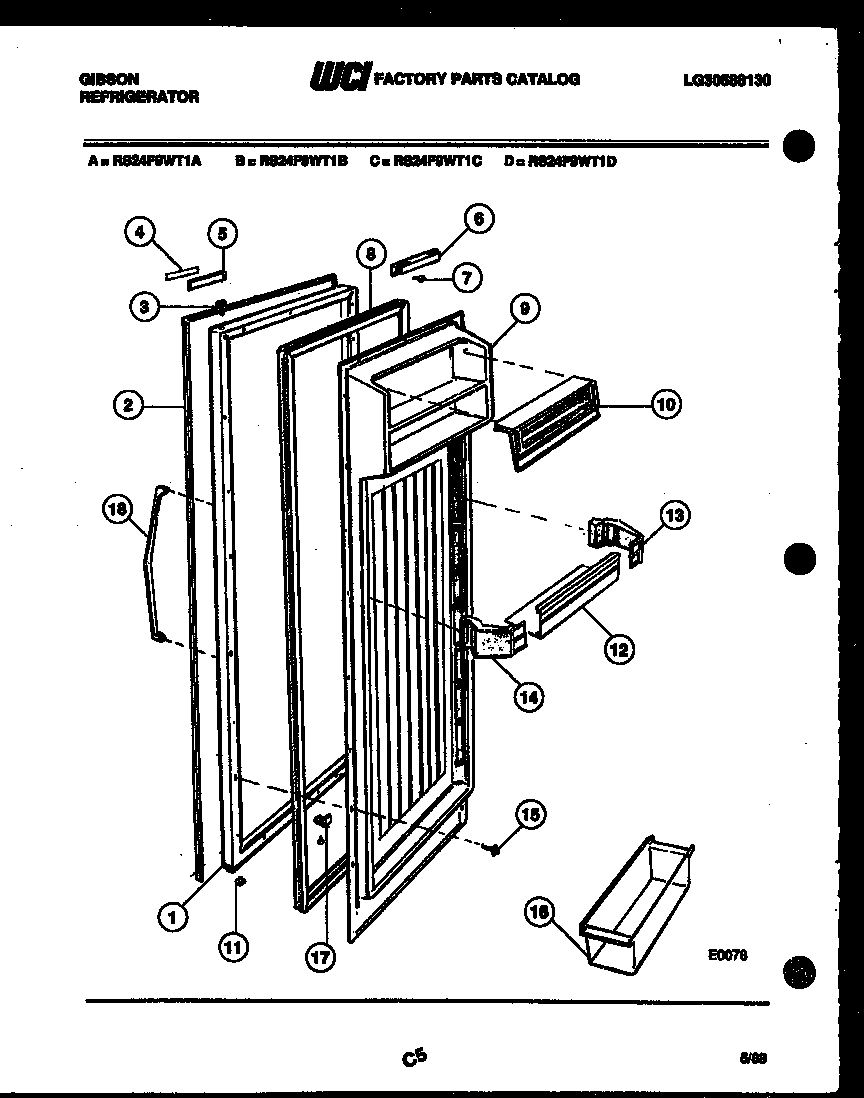

RS24F9WT1C 03 – REFRIGERATOR DOOR PARTS

RS24F9WT1C 03 – REFRIGERATOR DOOR PARTS

Written by

in

RS24F9WT1C 03 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
*78797WCI G176752
*78798ANCHOR NUT (2) (NON-ILLUSTRATED)
*78798WCI G185565
1WCI G177745-10
1REFRIGERATOR DOOR-WHEAT
1REFRIGERATOR DOOR-AVOC
1WCI G177745-11
1AWCI G152308-01
1WCI G177745
2WCI G167404-08
3WCI G183139
4ALABEL-UPPER (NON-ILLUSTRATED)
4LABEL, LOWER
5NAMEPLATE
6DOOR CLOSER
7WCI G169729
8WCI G180551-02
9WCI G171411-02
10WCI G170930-14
11BEARING, HINGE (3)
12WCI G164109-21
12AWCI G101890
12BWCI G167115
13SUPPORT-SHELF RH (4)
14SUPPORT-SHELF LH (4)
16WCI G173948-27
17BUMPER-LIGHT SW.
17A5304455651 Frigidaire Refrigerator Screw
18WCI G163552-01
