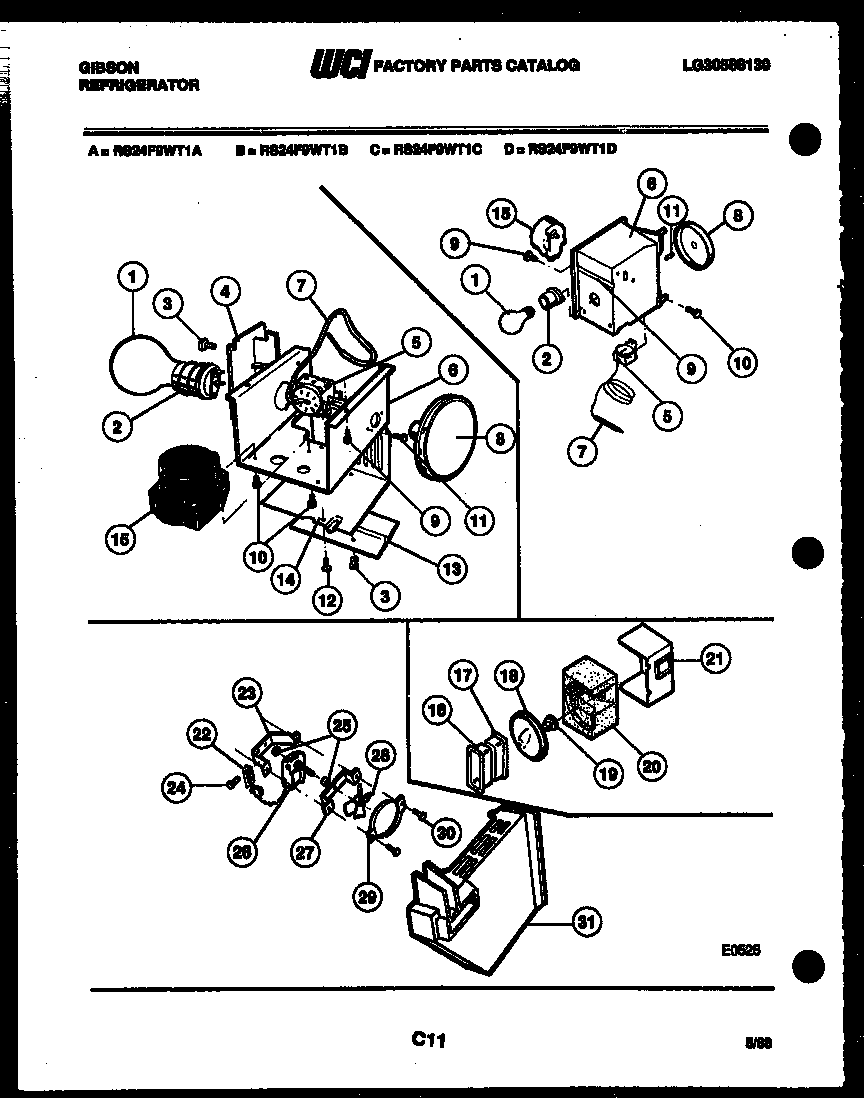

RS24F9WT1C 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

Position	Product
*79017	FOAM TAPE-COVER
*79020	WCI G162703
*79018	WCI 3015098
1	316538904 Frigidaire Oven Lamp Light
2	SOCKET LIGHT
5	WCI G162205-05
6B	WCI G165434
6A	WCI G189359
7	TUBE
8	WCI G164906-01
9	5304455852 Frigidaire Refrigerator Screw
10	5304455649 Frigidaire Refrigerator Screw
11	WCI G107080
15	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16	WCI G166802
17	WCI G166803
17A	WCI G167582
18	KNOB, DAMPER CONT.
19	WCI G185373
20	WCI G164575
21	WCI G164523
22	WCI G164571
23	WCI G185303
24	5304455651 Frigidaire Refrigerator Screw
25	G187559 Frigidaire Refrigerator Bushing
26	5300158289 Frigidaire Evaporator Fan Motor
27	WCI G185302
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	RING, FAN ORIFICE
30	5304455650 Frigidaire Refrigerator Screw
31	WCI G187033-01
