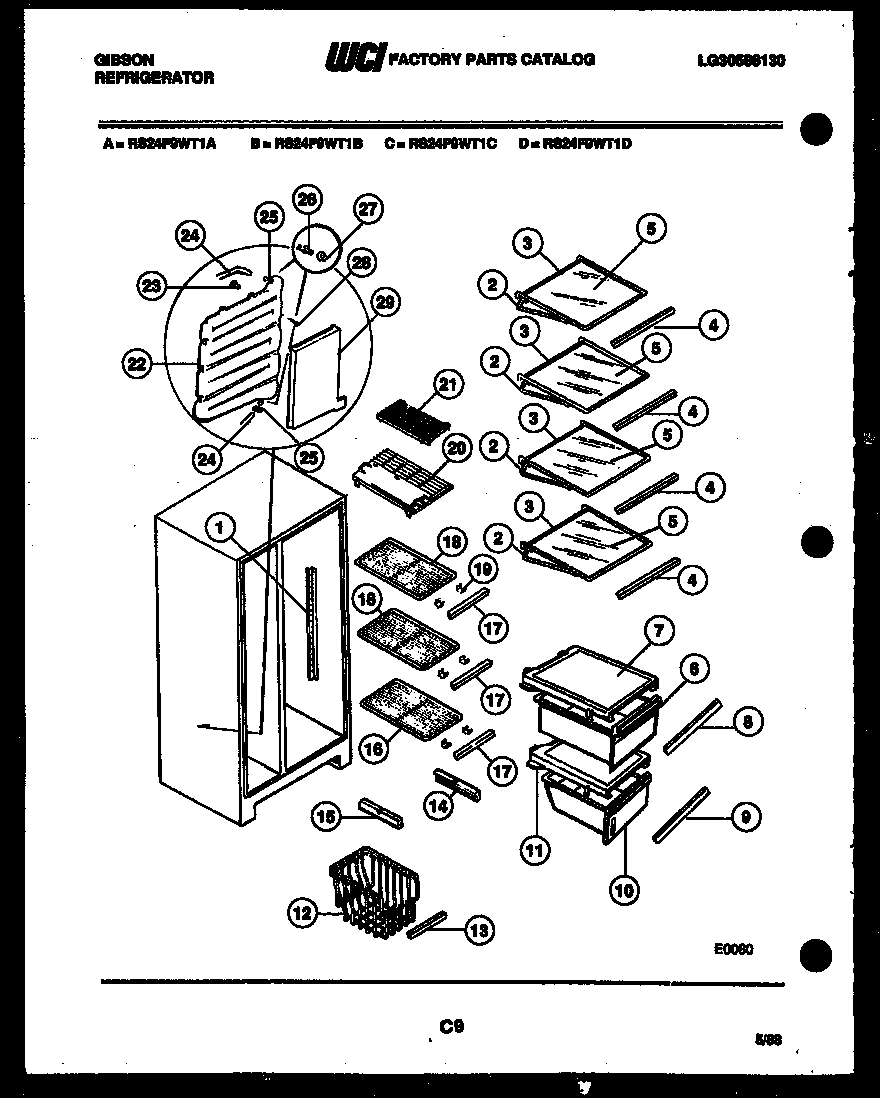

RS24F9WT1D 05 – SHELVES AND SUPPORTS

RS24F9WT1D 05 – SHELVES AND SUPPORTS

Written by

in

RS24F9WT1D 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1A5304455852 Frigidaire Refrigerator Screw
1CHANNEL-RS & LS
2WCI G186156-04
3WCI G172409-01
4WCI G172410-01
5WCI G171654-42
6WCI G179709-03
7AGASKET-COVER UPR (2) (NON-ILLUSTRATED)
7COVER-UPR PAN
8TRIM, UPPER PAN
9TRIM, LOWER PAN
10WCI G179710-02
11COVER-LWR PAN
12BASKET-FREEZER
13WCI 3017946
14HANGER-BASKET RS
15HANGER-BASKET LS
16WCI 3017947
17ATRIM – CLIP ON (3)
18WCI 3017949
19A5304509705 Frigidaire Refrigerator Grommet
20WCI G174571-01
20ALABEL-SHELF-LOWER (NON-ILLUSTRATED)
21WCI G174556-01
21ALABEL-SHELF-UPPER (NON-ILLUSTRATED)
22TANK-WATER
23WCI G163938
245308010366 Frigidaire Refrigerator P1-Water Inlet Tube
25WCI G166705
26WCI G186058
27WCI G186057
28131420300 Frigidaire Screw
29WCI G163925-02
