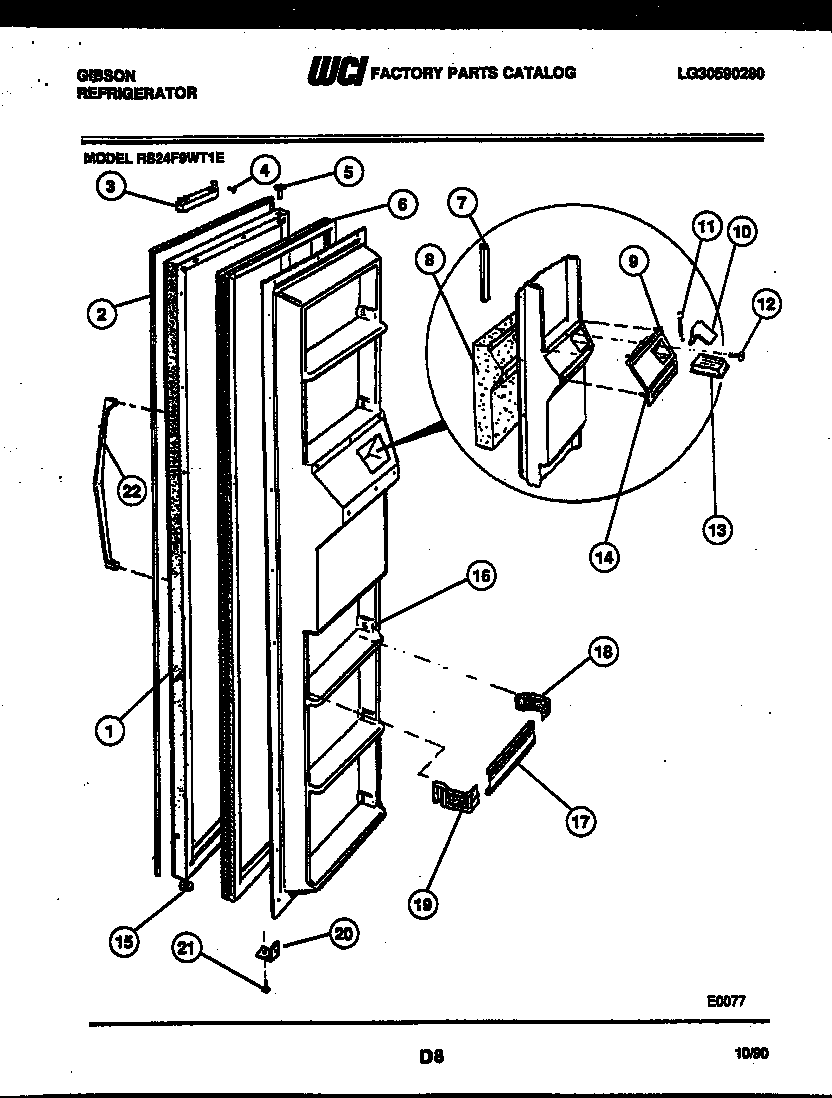

RS24F9WT1E 02 – FREEZER DOOR PARTS

Products

Position	Product
*22355	WCI G176752
*22357	WCI G185565
1	WCI G188318-10
1A	WCI 5315230801
1	WCI G118318-11
1	WCI G188318-08
1	WCI G188318-09
1	WCI G188318
2	WCI G167404-09
3	WCI 5303200272
4	WCI 3001020
5	WCI 5303001022
6	GASKET-FREEZER DOOR
7	WCI 5303001046
8	WCI 5308017045
9	WCI 5303001048
10	WCI G175040-05
11	SPRING-FLIPPER
12	5304455650 Frigidaire Refrigerator Screw
13	WCI 5303211961
14A	NUT, SELF-THREADING, 1/8
14	WCI G174402-05
15	BUSHING-LOWER HINGE
16	WCI G175385-02
17	WCI 5315454147
18	SUPPORT RH (5)
19	SUPPORT LH (5)
20	WCI 5308000790
21	218843801 Frigidaire Refrigerator Screw
22	DOOR HANDLE
