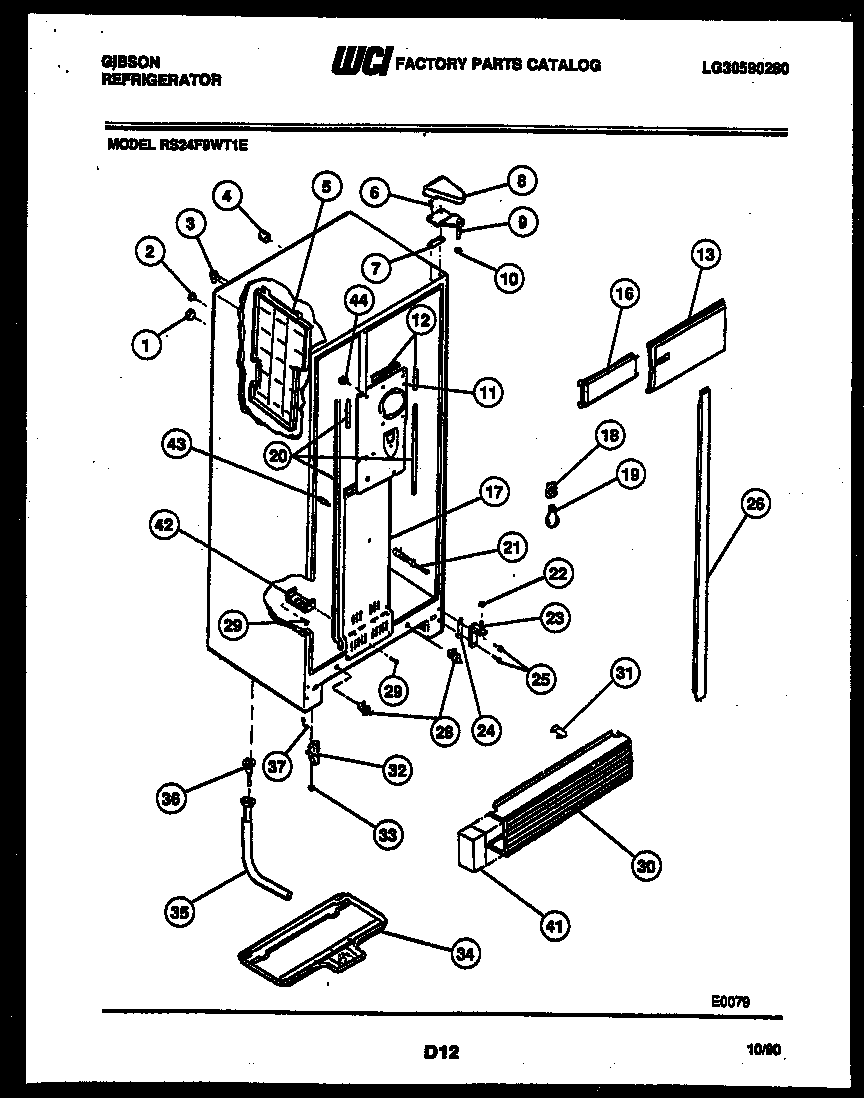

RS24F9WT1E 04 – CABINET PARTS

Products

PositionProduct
*22376TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*22376WCI 5303001288
1WCI 5303001286
2WCI 5303001287
3215456100 Frigidaire Refrigerator Water Inlet Tube
4TUBE-RUBBER
5WCI 5308010353
6241710601 Frigidaire Refrigerator Screw
7SHIM – UPPER HINGE
8COVER – HINGE-WHEAT
8COVER-UPPER HINGE, ALMOND
8COVER-HINGE-AVOCADO
8WCI 5303001666
8COVER-UPPER HINGE, WHITE
9WCI 5308012934
9AWCI 5303001062
10WCI 5308000186
11ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
11COVER-COIL UPPER
11B5303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303001219
13WCI 3015073
13AWCI 5303001213
16WCI G174712-01
17WCI 3001232
18218906802 Frigidaire Light Lamp Socket
19316538904 Frigidaire Oven Lamp Light
20WCI 5303001233
21DAMPER, MEAT KEEPER
22WASHER, .28 X .62 X .19, NYLON
23BWCI 5303001273
23HINGE-BOTTOM
23AHINGE-BOTTOM LS
24BWCI 5300077210
24SHIM-BTM HINGE (3)
24AWCI 5308000013
25SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
26BWCI 5303001281
26AWCI 5300169100
26WCI 5303916447
26WCI 5303916444
26WCI 3916446
26WCI 3916445
26WCI 5303916448
285303289051 Frigidaire Refrigerator Light Switch
295304455650 Frigidaire Refrigerator Screw
30WCI 5303001032
31CLIP, GRILLE (2)
32ASCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
32ROLLER-FRONT (2)
33SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
34WCI 5303001026
35WCI 5303209723
36WCI 5308000853
37WCI 5308010289
37ANUT, 7/16 X 20, NYLON
41COVER-BOTTOM HINGE
42WCI 5308000738
43WCI 5303001250
44SUPPORT-COIL COVER
