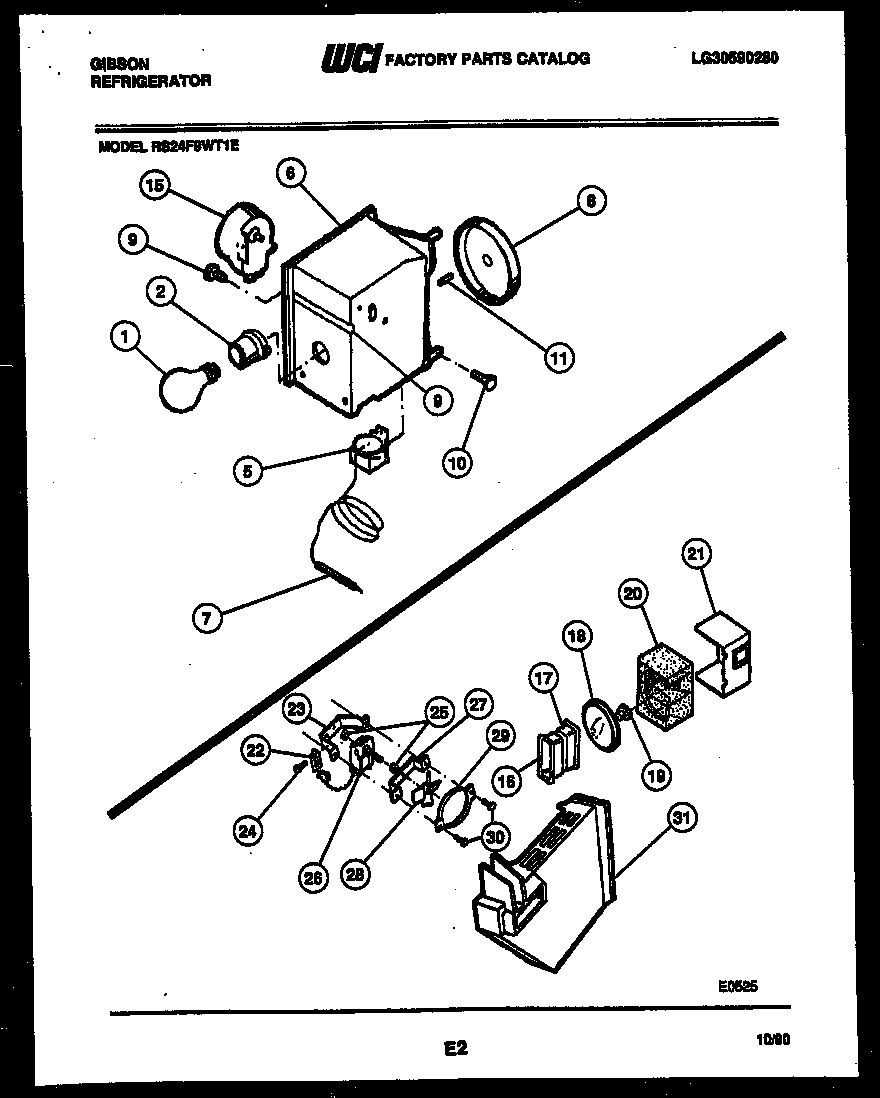

RS24F9WT1E 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

Position	Product
*22389	WCI 5303001231
*22389	WCI 5303015098
*22389	FOAM TAPE-COVER
1	316538904 Frigidaire Oven Lamp Light
2	SOCKET-LIGHT/LAMP
5	WCI 5308000068
6	WCI 5308017561
6A	WCI 3001269
7	TUBE
8	WCI 5308010380
9	5304455852 Frigidaire Refrigerator Screw
10	5304455649 Frigidaire Refrigerator Screw
11	WCI 5303001260
15	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16	WCI 5303001276
17	WCI 5303001277
17A	WCI 5303001280
18	WCI 5316521701
19	WCI 5300185373
20	WCI 5308000771
21	WCI 5303211383
22	WCI 5308000107
23	WCI 5303001227
24	5304455651 Frigidaire Refrigerator Screw
25	G187559 Frigidaire Refrigerator Bushing
26	5300158289 Frigidaire Evaporator Fan Motor
27	WCI 5303001226
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
28A	WASHER-NYLON,3/16 X 5/8 OD
29	RING-FAN ORIFICE
30	5304455650 Frigidaire Refrigerator Screw
31	WCI 5308015764
