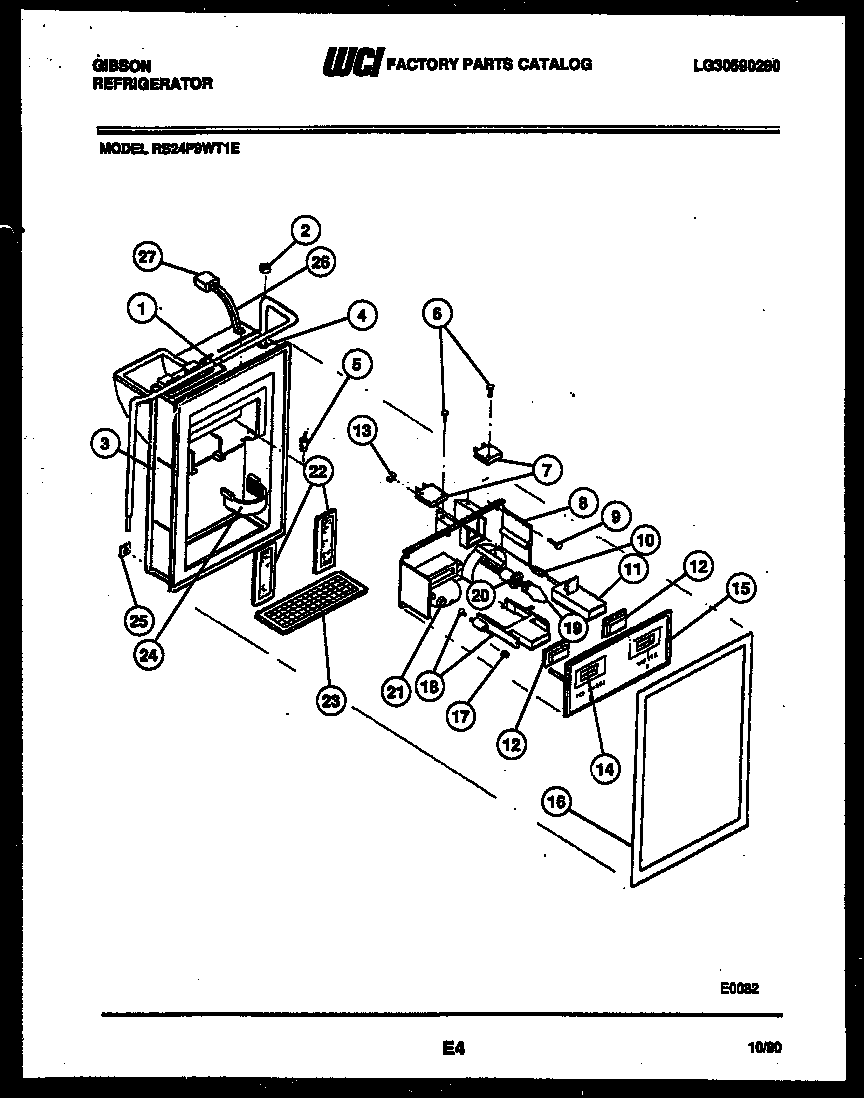

RS24F9WT1E 07 – ICE DOOR, DISPENSER AND WATER TANK

RS24F9WT1E 07 – ICE DOOR, DISPENSER AND WATER TANK

Written by

in

RS24F9WT1E 07 – ICE DOOR, DISPENSER AND WATER TANK

Products

PositionProduct
*22395WCI 5318653301
1TUBE-WATER INLET & PILOT ASSY
2WCI 5303001066
3WCI 5308015588
4WCI 5303211547
5WCI 5308010326
6SCREW (4)
7WCI 5303001078
8PLATE-SWITCH MTG
9SCREW (4)
10SPRING-WATER ACTUATOR
11WCI 5303001077
12WCI G177645-01
13WCI 5302832214
14WCI G182653-01
15WCI G182644-01
16WCI G177721-02
17WCI 5303001081
18ACTUATOR & CUP ASSY-ICE
19WCI 5304506475
20SOCKET-LIGHT BULB
21WCI 5303001074
22PAD-FILL (2)
23WCI 5303208909
24WCI 5318000402
25NUT, SELF-THREADING, 1/8
26WCI 5303001082
27PLUG-HARNESS BOTTOM
