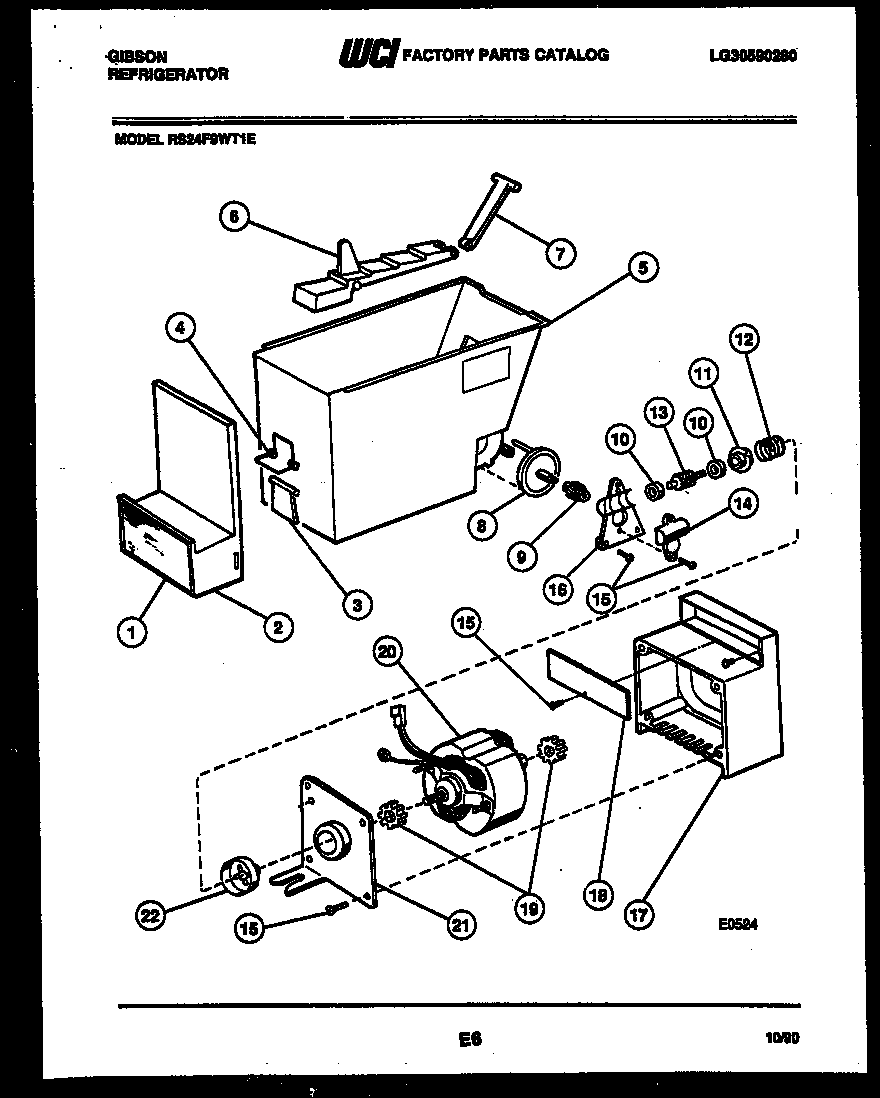

RS24F9WT1E 08 – ICE DISPENSER

Products

Position	Product
1A	LABEL-ICE DISPENSER
1	WCI G185970
2	WCI G174416-05
3	WCI 5317440701
4	SPRING-ICE DOOR
5	WCI G177213-04
6	WCI 5301123547
7	WCI 5303205890
8	WCI 5301123568
9	WORM GEAR-ICE RAM
10	WCI 5301123508
11	COUPLING-ICE DISP CONTAINER
12	WCI 5301123767
13	WORM-ICE RAM
14	COVER-HOUSING ICE RAM
15	5304455650 Frigidaire Refrigerator Screw
16	WCI 5300174408
17	HOUSING-ICE DISP MTG
18	COVER-ICE DISP MTR
19	GROMMET-ICE DISP MTR (2)
20	WCI 5308017049
21	WCI 5303001106
22	WCI 5301123771
