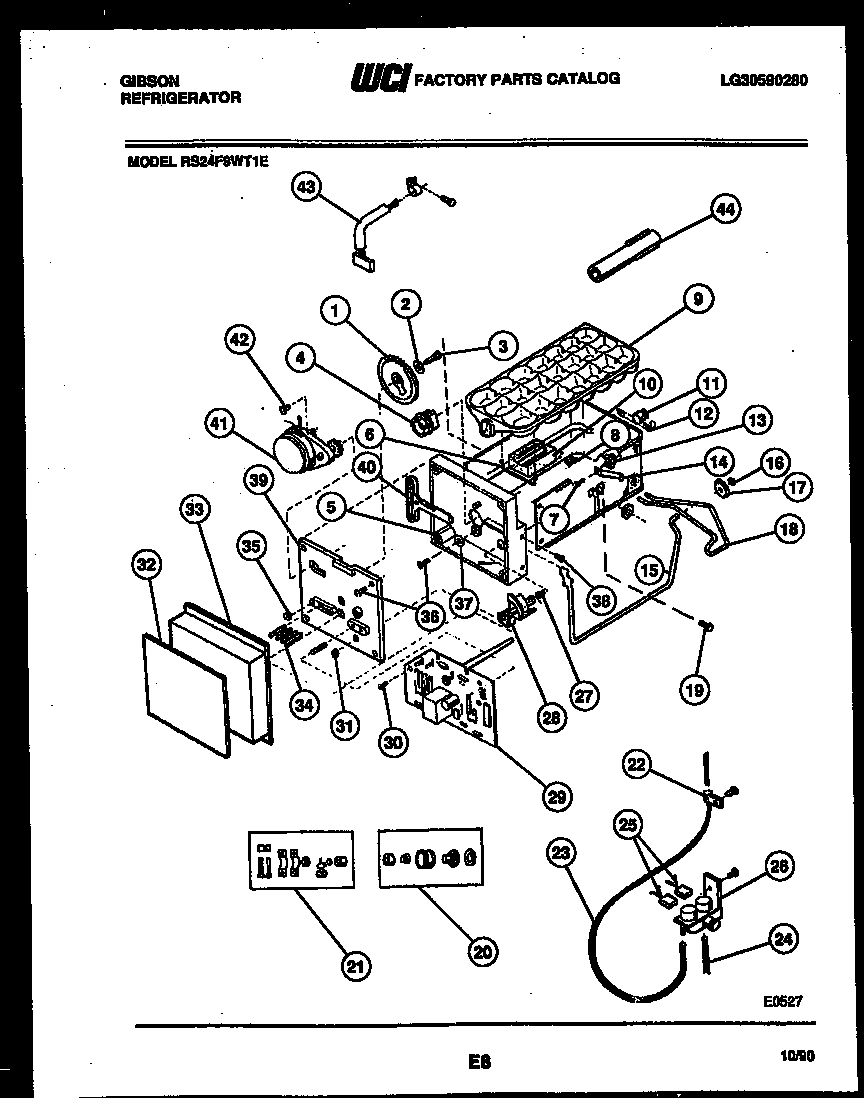

RS24F9WT1E 09 – ICE MAKER PARTS

Products

Position	Product
*22405	5303001147 Frigidaire Refrigerator Plug-Harness Hole
1	WCI 5301124984
2	WCI 5303001117
3	WCI 5303001119
4	WCI 5301124972
5	HOUSING-ICE MAKER
6	WCI 5301138379
7	SCREW - TRANSFORMER (2) (NON-ILLUSTRATED)
8	RETAINER-SHUT OFF WIRE (NON-ILLUSTRATED)
9	ICE TRAY
10	WCI 5303001141
11	WCI 5300618683
12	WCI 5303001132
13	PUSHNUT
14	SPRING-TRAY
15	WCI 5300175315
16	RETAINING RING (NON-ILLUSTRATED)
17	BEARING-GAUGE ARM
18	WIRE-SHUT OFF
19	SENSING ARM
20	ADAPTER-WATER SPLY
21	WCI 5308000247
22	5308000133 Frigidaire Refrigerator Clamp
24	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
24A	215456100 Frigidaire Refrigerator Water Inlet Tube
24B	WCI 5303001191
25	WIRING HARNESS-ICE & WATER (LOWER)
26	WATER VALVE SOLENOID
26A	CAP-WATER VALVE (NON-ILLUSTRATED)
27	WCI 5303001139
28	WCI 5301124983
29	PRINTED CIRCUIT BOARD
31	RETAINING RING
32	WCI G185971
33	WCI 5317770906
34A	WASHER-NYLON,3/16 X 5/8 OD
34	FOLLOWER-CAM (PIN)
34B	WCI 5308012818
35	NUT - HEX 10-32 LH
36	SCREW (5)
37	WASHER
38	WCI 3001020
39	PLATE-MOUNTING
40	WCI 5303001136
41	WCI 5301124982
42	WCI 5301124507
43	WIRING HARNESS-ICE MAKER (UPPER)
44	WCI 5308015765
