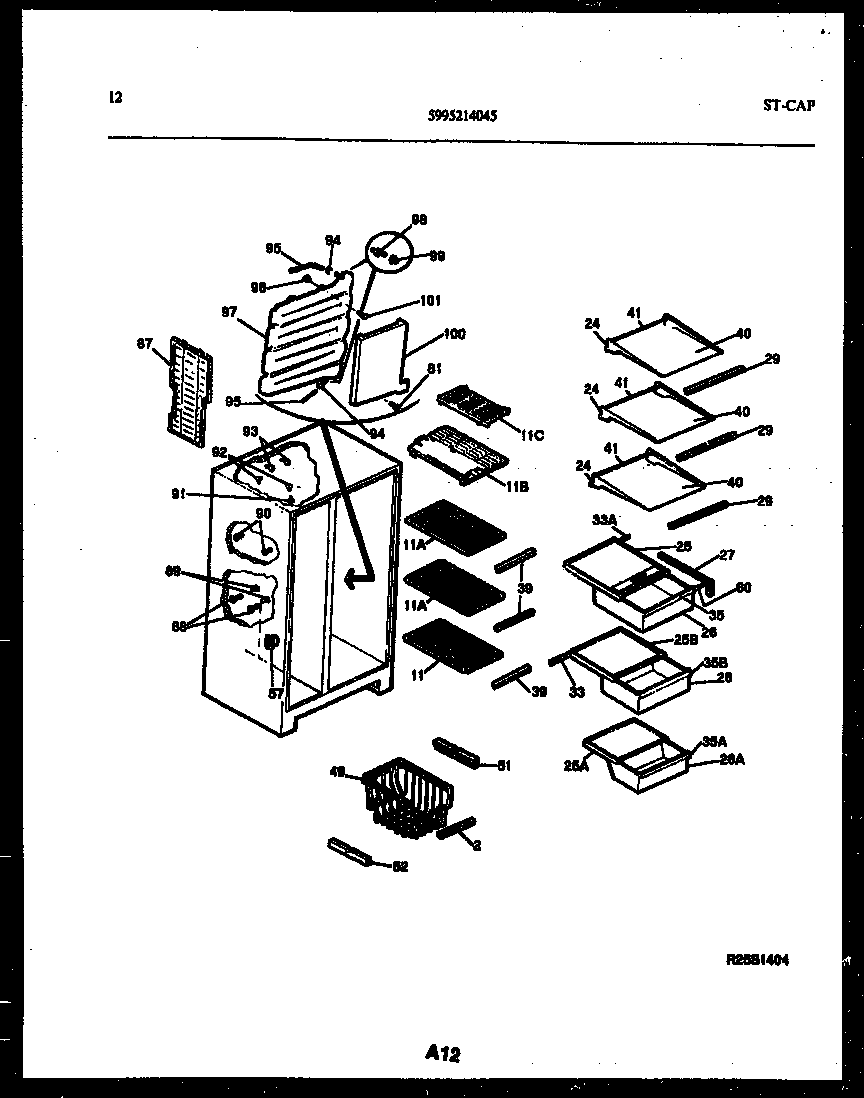

RS24F9WX1C 07 – SHELVES AND SUPPORTS

Products

PositionProduct
*45102WCI 5308008250
*45102WCI 5308008251
*45101CLIP-CANTILEVER SHLF
90WCI 5303001291
90ASCREW (2)
91SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
92SUPPORT-ICE ACCESS DR
93SUPPORT-SPEC BARREL (2)
94CLAMP-SUCTION TUBE (NON-ILLUSTRATED)
955308010366 Frigidaire Refrigerator P1-Water Inlet Tube
96SUPPORT-TANK (3)
97WCI 5303917026
98CONNECTOR – TUBE
99GROMMET-TANK
100WCI 5308010332
101131420300 Frigidaire Screw
