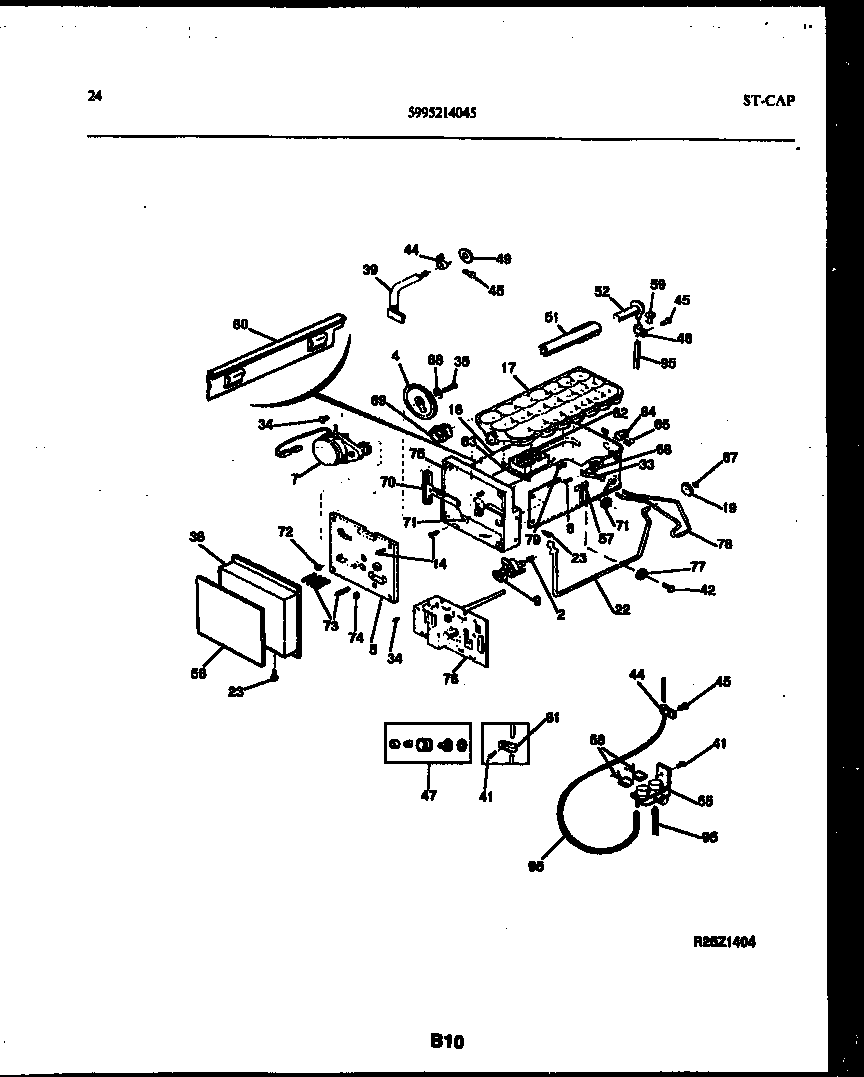

RS24F9YX1C 13 – ICE MAKER AND ICE MAKER INSTALLATIO

Products

PositionProduct
*45135HOLDER-CABLE
*45136WCI 5308000247
615304455846 Frigidaire Refrigerator Clamp
62WCI 5303001141
63WCI 5301138379
64WCI 5300618683
65WCI 5303001132
66PUSHNUT
67RETAINING RING (NON-ILLUSTRATED)
68WCI 5303001117
69WCI 5301124972
70WCI 5303001136
71WASHER
72NUT – HEX 10-32 LH
73FOLLOWER-CAM (PIN)
74RETAINING RING
75HOUSING-ICE MAKER
76PRINTED CIRCUIT BOARD
77WASHER-NYLON,3/16 X 5/8 OD
78WIRE-SHUT OFF
79RETAINER-SHUT OFF WIRE (NON-ILLUSTRATED)
80WCI 5300175135
955308010366 Frigidaire Refrigerator P1-Water Inlet Tube
