RS2533SW 11 – REFRIGERATOR DOOR

RS2533SW 11 – REFRIGERATOR DOOR

Written by

in

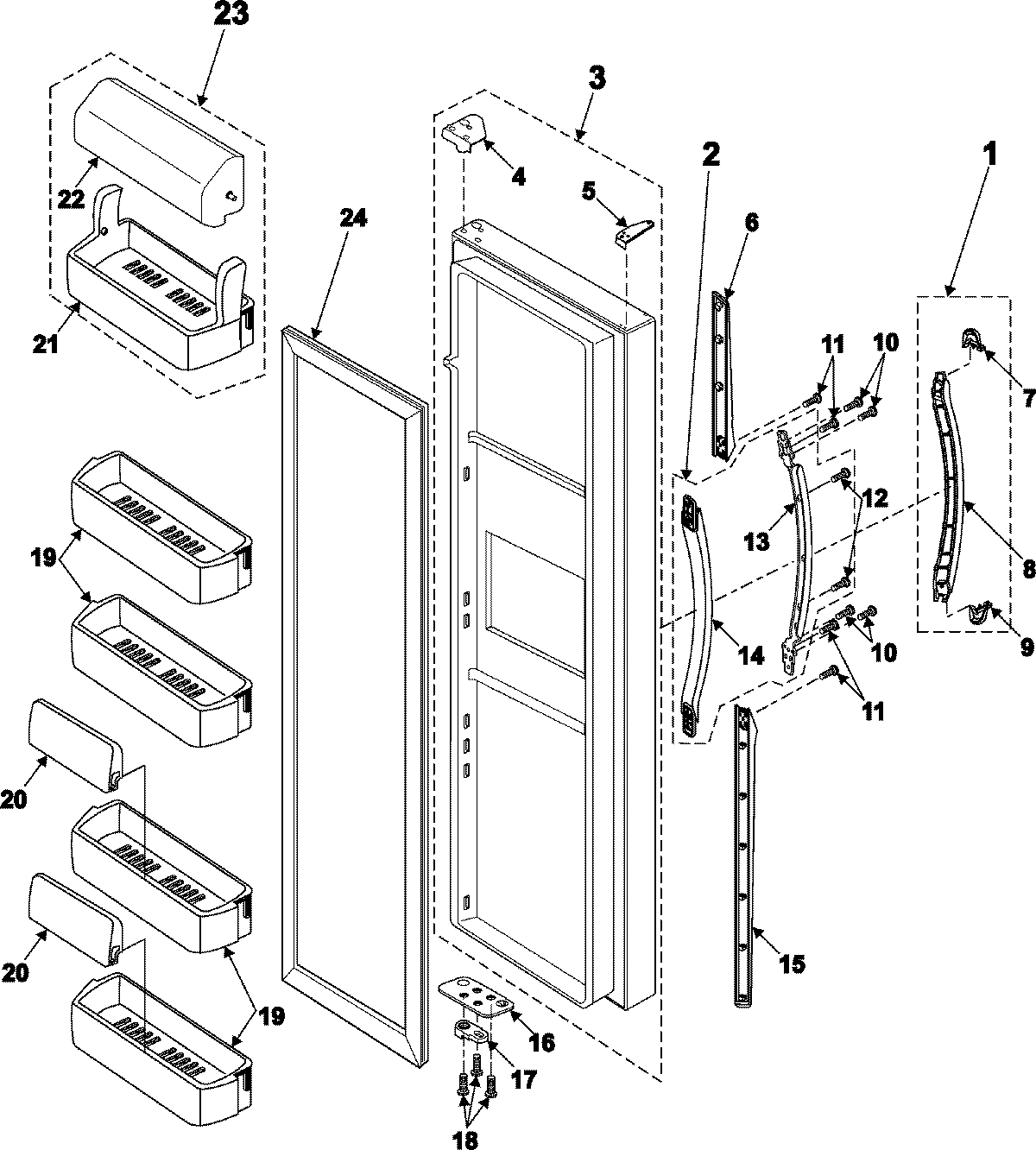

RS2533SW 11 – REFRIGERATOR DOOR

Products

PositionProduct
1MAY DA97-00704H
2MAY DA97-00703A
3MAY DA91-01606C
5SEE NOTE GROUND WIRE, GREEN
6MAY DA64-00418B
7MAY DA64-00416B
8MAY DA64-00413F
9MAY DA64-00415B
10MAY 6002-000213
11MAY 6002-000613
12MAY 6002-000227
13MAY DA61-00309A
14MAY DA64-00414B
15MAY DA64-00417B
16MAY DA61-00430A
17DA66-00344A Samsung Refrigerator Cam Hinge Riser Low
18MAY 6001-000716
19MAY DA63-00828D
20MAY DA71-00090A
21MAY DA63-00836D
22MAY DA63-00825A
23MAY DA97-00697D
24MAY DA97-01800D
