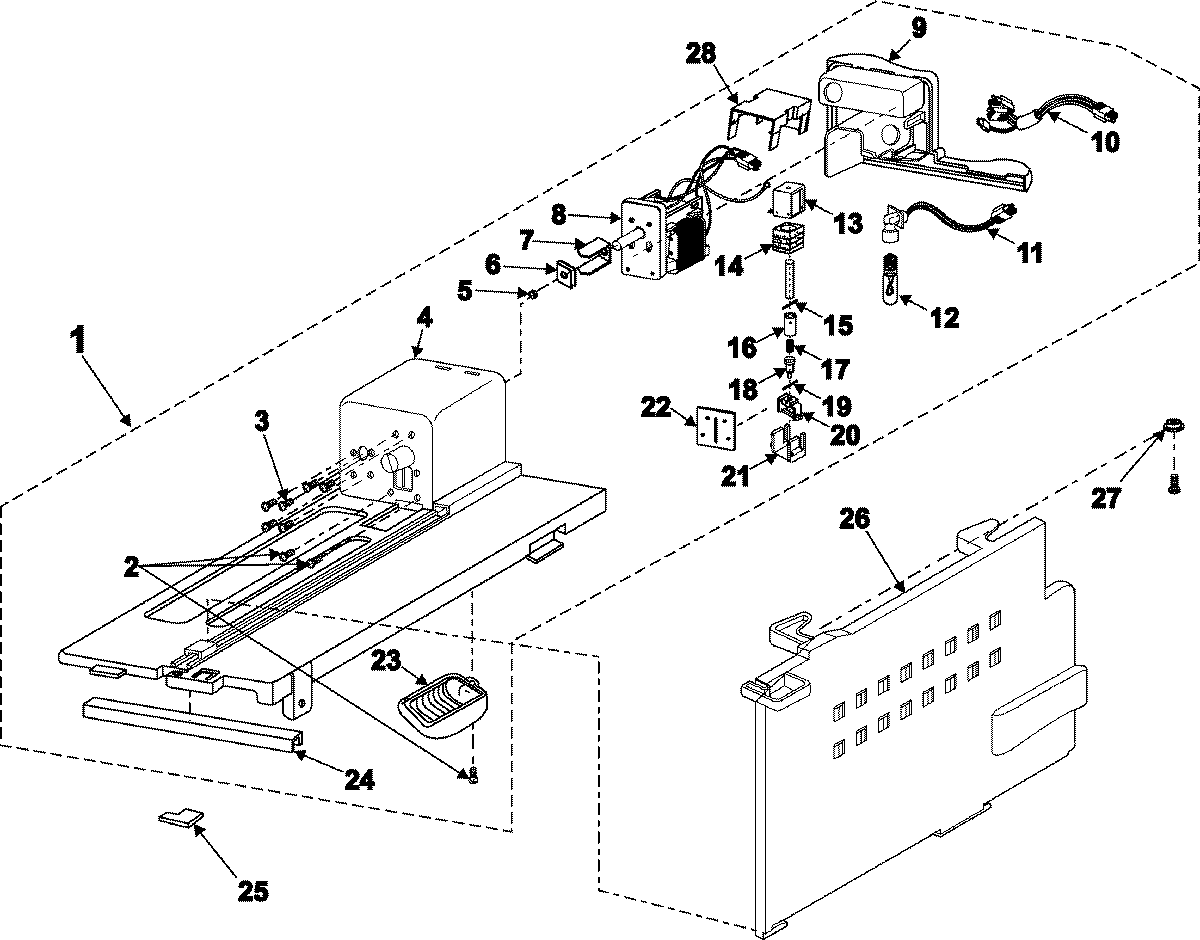

RS2534VQ 01 – ENCLOSURE ASSEMBLY

RS2534VQ 01 – ENCLOSURE ASSEMBLY

Written by

in

RS2534VQ 01 – ENCLOSURE ASSEMBLY

Products

PositionProduct
1MAY DA97-00705A
2MAY 6002-000471
3MAY DA60-00001B
4MAY DA61-00262E
5MAY DA60-30108A
6DA71-00163A Samsung Refrigerator Nut Fixer
7MAY DA70-20017A
8MAY DA31-00039F
9MAY DA63-00793B
10DA96-00036A Samsung Assembly Harness Em
11MAY DA47-00112C
12MAY 4713-001197
13DA74-40151G Samsung Refrigerator Ice Dispenser Solinoid Valve
14MAY DA72-60348A
15MAY DA60-90137A
16MAY DA63-90008A
17MAY DA61-20140A
18MAY DA66-90003A
19MAY DA60-90137B
20MAY DA65-20107A
21MAY DA61-60001A
22MAY DA73-00168A
23MAY DA63-00785A
24MAY DA61-00239A
25MAY DA67-00770B
26MAY DA67-00763B
27MAY DA61-01797A
28SEE NOTE GROUND WIRE, GREEN
