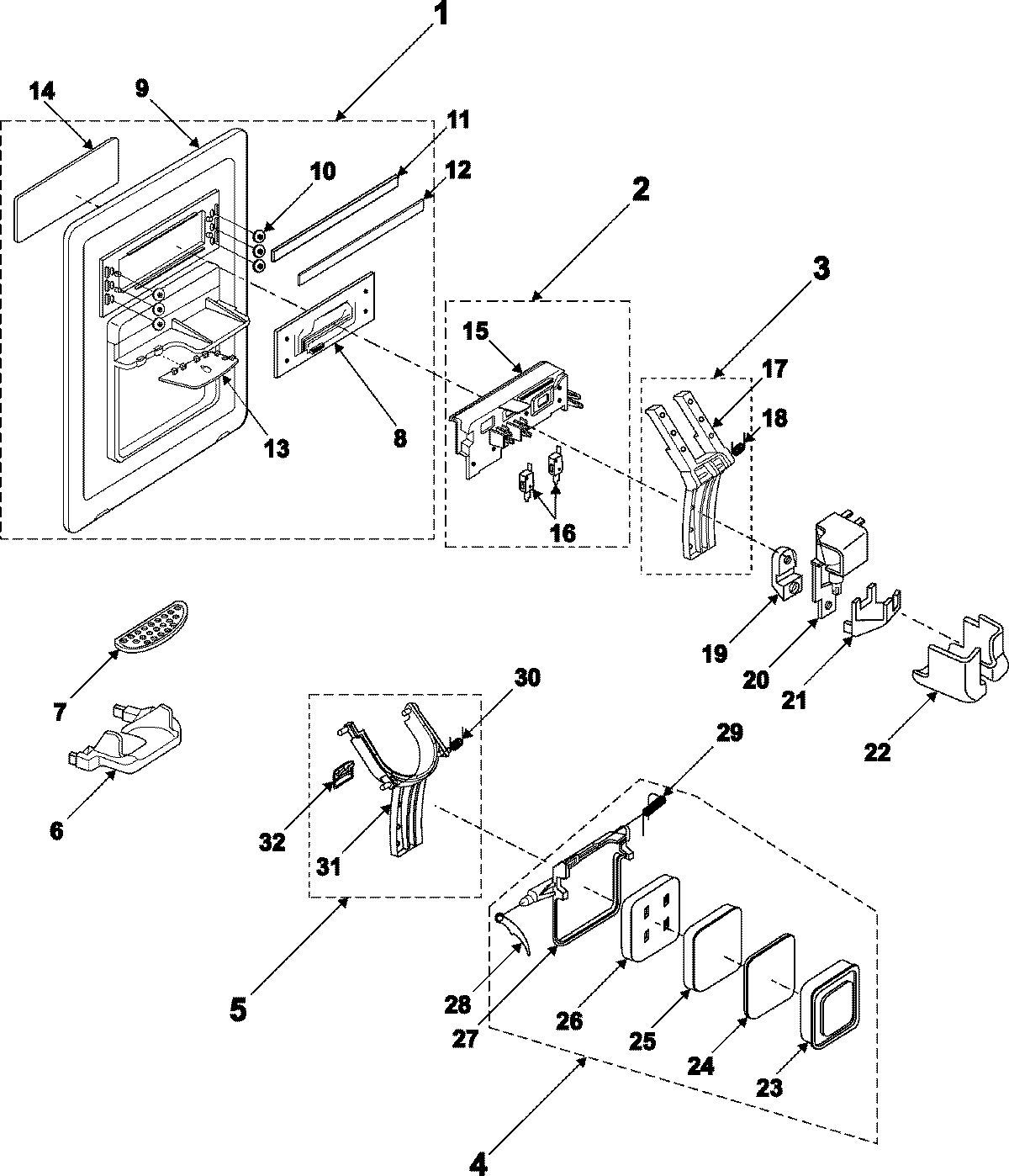

RS2534VQ 02 – FOUNTAIN

Products

Position	Product
1	MAY DA97-01533T
2	DA97-00409D Samsung Refrigerator Rear PCB Panel Cover Assembly
6	MAY DA61-01587A
7	MAY DA63-00843M
8	MAY DA41-00204C
10	MAY DA64-00740B
11	MAY DA72-00427K
13	MAY DA63-00994B
14	MAY DA63-01284C
15	DA63-00816C Samsung Refrigerator Cover PCB Panel Rear
16	MAY DA34-00011A
18	MAY DA61-00338A
19	MAY DA61-00319A
20	DA74-40154F Samsung Refrigerator Valve Solenoid
21	MAY DA61-00316A
22	MAY DA63-01047A
23	MAY DA63-01823A
25	MAY DA63-00846A
27	MAY DA63-00844A
28	MAY DA61-00775A
29	MAY DA61-00565A
30	MAY DA61-00337A
31	SEE NOTE GROUND WIRE, GREEN
32	MAY DA66-00156B
