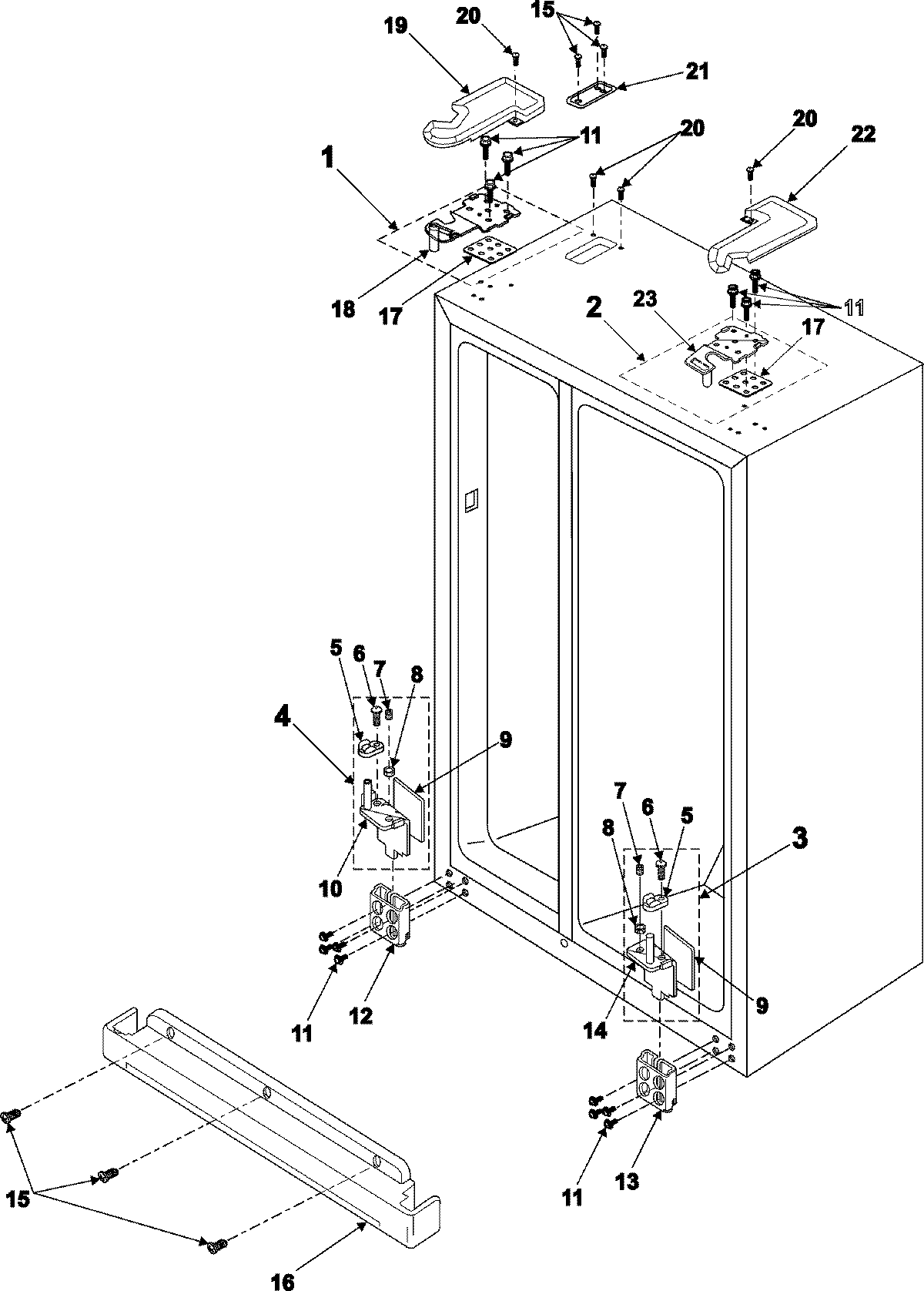

RS2534VQ 06 – HINGES

RS2534VQ 06 – HINGES

Written by

in

RS2534VQ 06 – HINGES

Products

Position	Product
1	MAY DA97-02337B
2	MAY DA97-02338B
3	MAY DA97-01763A
4	MAY DA97-01760A
5	MAY DA66-00268A
6	MAY 6003-001435
7	MAY 6011-001442
8	MAY 6021-001125
9	MAY DA63-50207C
10	MAY DA61-01607A
11	MAY 6009-001255
12	MAY DA97-02243A
13	MAY DA97-02244A
15	MAY 6002-001197
17	MAY DA63-50192A
18	MAY DA61-01603B
20	MAY 6002-000471
21	MAY DA63-01275A
22	SEE NOTE GROUND WIRE, GREEN
23	MAY DA61-01604B
