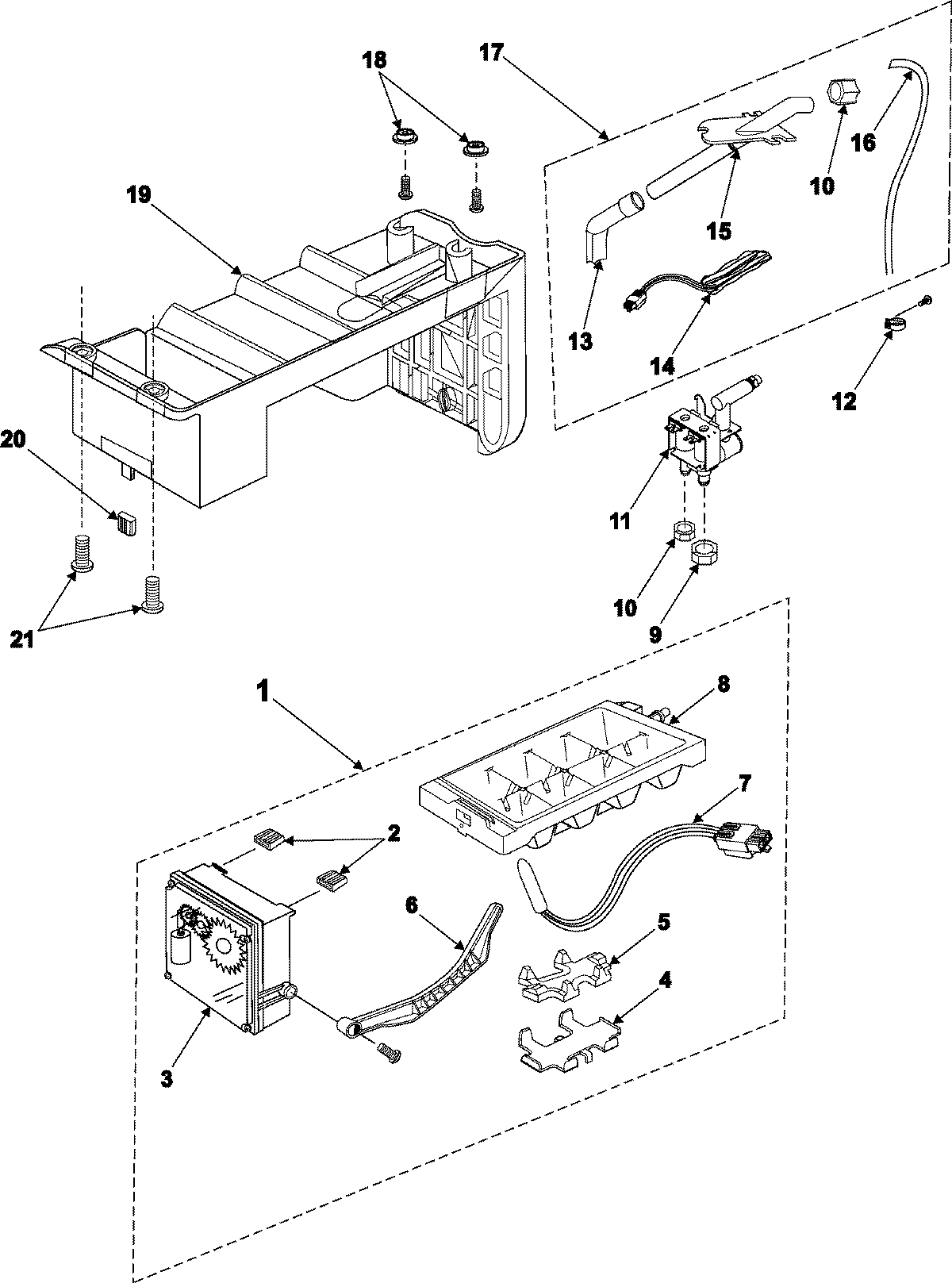

RS2534VQ 08 – ICEMAKER

Products

Position	Product
1	MAY DA97-00258C
2	DA61-70254A Samsung Refrigerator Supt-Gasket Nbr Ice-Make
3	SEE NOTE GROUND WIRE, GREEN
4	DA63-02183A Samsung Sensor Cover
5	MAY DA61-01799A
6	MAY DA61-00524A
7	MAY DA61-00453A
8	DA63-01453B Samsung Refrigerator Ice Tray A Top Half
9	MAY DA60-30105A
10	MAY DA60-30104A
11	MAY DA74-40149D
12	MAY DA65-20110B
13	MAY DA63-01291A
14	DA47-00110C Samsung Refrigerator Heater Water Pipe
15	MAY DA97-00707A
16	MAY DA73-00070K
17	MAY DA97-00708B
18	MAY DA61-01797A
19	MAY DA61-00244B
20	MAY DA71-20270A
21	MAY 6002-001204
