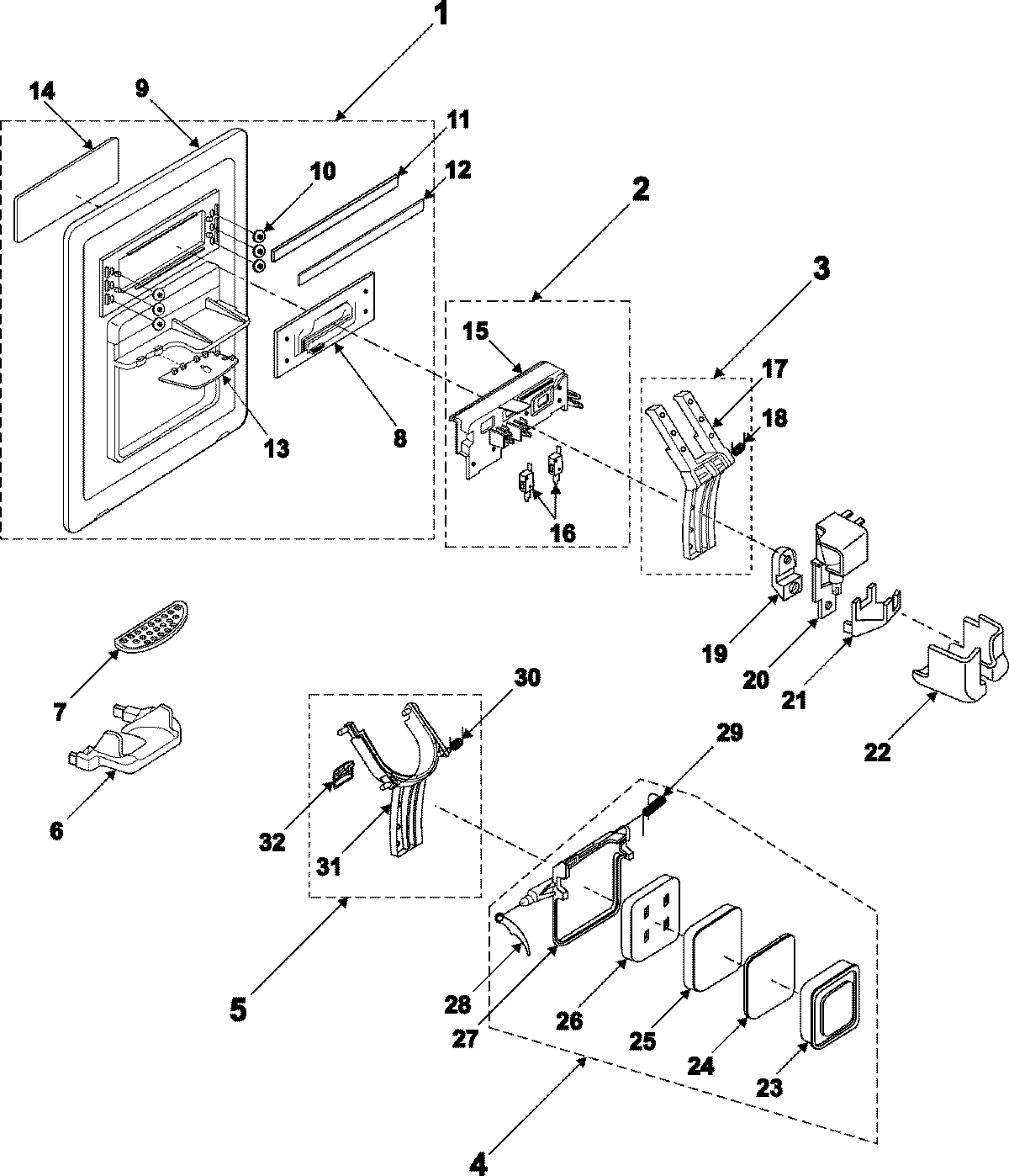

| 1 | MAY DA97-01533Q |
| 2 | DA97-00409D Samsung Refrigerator Rear PCB Panel Cover Assembly |
| 3 | MAY DA97-00546C |
| 5 | DA97-00545C Samsung Refrigerator Assembly Lever Disp-Ice |
| 6 | MAY DA61-01587A |
| 7 | MAY DA63-00843E |
| 8 | MAY DA41-00204B |
| 9 | MAY DA63-00815B |
| 10 | MAY DA64-00740B |
| 11 | MAY DA72-00427K |
| 13 | MAY DA63-00994B |
| 14 | MAY DA63-01169R |
| 15 | DA63-00816C Samsung Refrigerator Cover PCB Panel Rear |
| 16 | MAY DA34-00011A |
| 17 | MAY DA66-00197C |
| 18 | MAY DA61-00338A |
| 19 | MAY DA61-00319A |
| 20 | DA74-40154F Samsung Refrigerator Valve Solenoid |
| 21 | MAY DA61-00316A |
| 22 | MAY DA63-01047A |
| 23 | MAY DA63-01823A |
| 25 | MAY DA63-00846A |
| 26 | SEE NOTE GROUND WIRE, GREEN |
| 27 | MAY DA63-00844A |
| 28 | MAY DA61-00775A |
| 29 | MAY DA61-00565A |
| 30 | MAY DA61-00337A |
| 31 | MAY DA66-00196C |
| 32 | MAY DA66-00156B |
