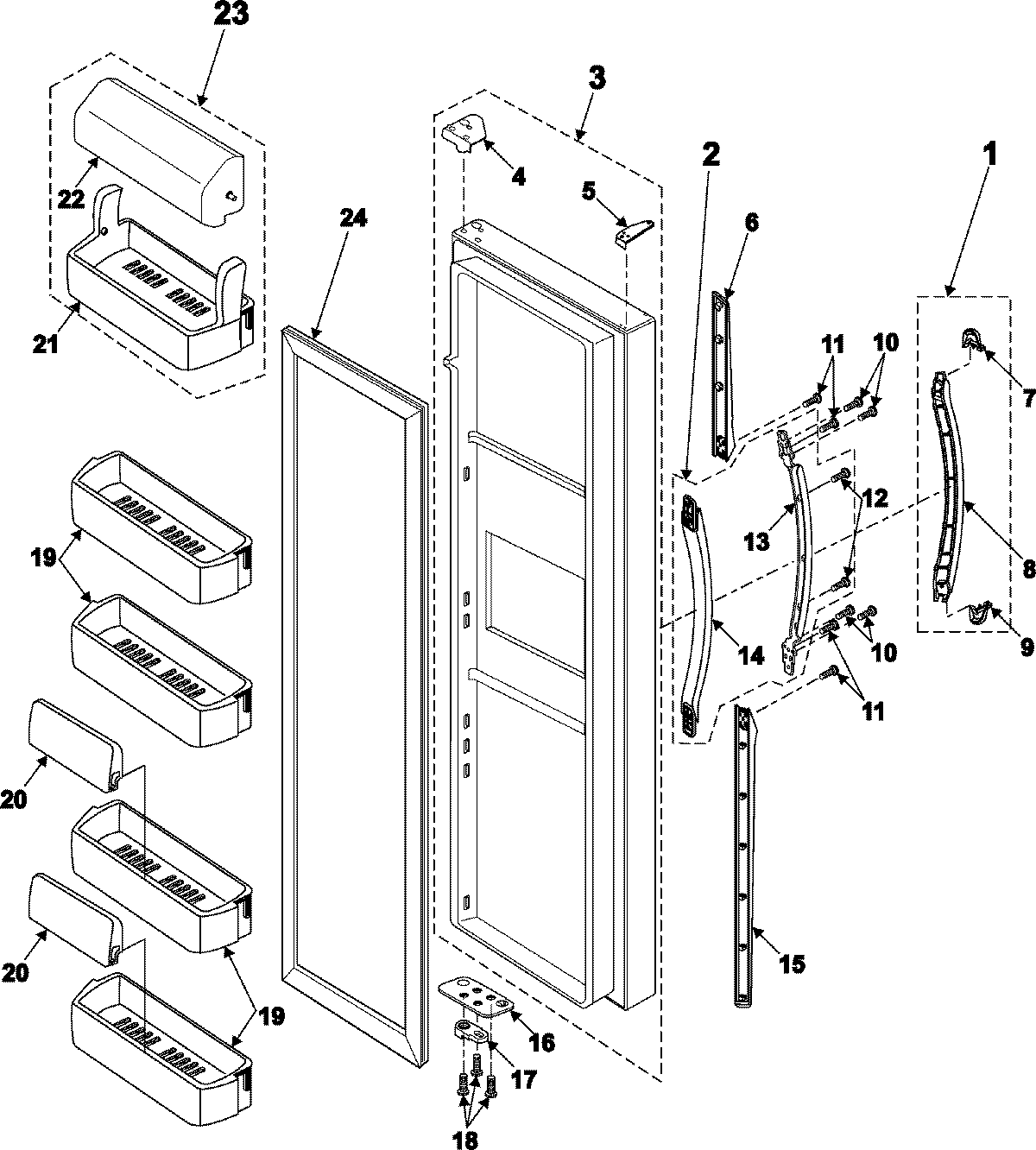

RS2556BB 11 – REFRIGERATOR DOOR

RS2556BB 11 – REFRIGERATOR DOOR

Written by

in

RS2556BB 11 – REFRIGERATOR DOOR

Products

PositionProduct
1MAY DA97-00704P
2MAY DA97-00703G
3MAY DA91-01606N
5SEE NOTE GROUND WIRE, GREEN
6MAY DA64-00418H
7MAY DA64-00416D
8MAY DA64-00413K
9MAY DA64-00415D
10MAY 6002-000213
11MAY 6002-000613
12MAY 6002-000227
13MAY DA61-00309A
14MAY DA64-00414H
15MAY DA64-00417H
16MAY DA61-00430A
17DA66-00344A Samsung Refrigerator Cam Hinge Riser Low
18MAY 6001-000716
19MAY DA97-01824A
20MAY DA61-01588A
21MAY DA63-00836D
22MAY DA63-00825B
23MAY DA97-00697E
24MAY DA97-01800D
