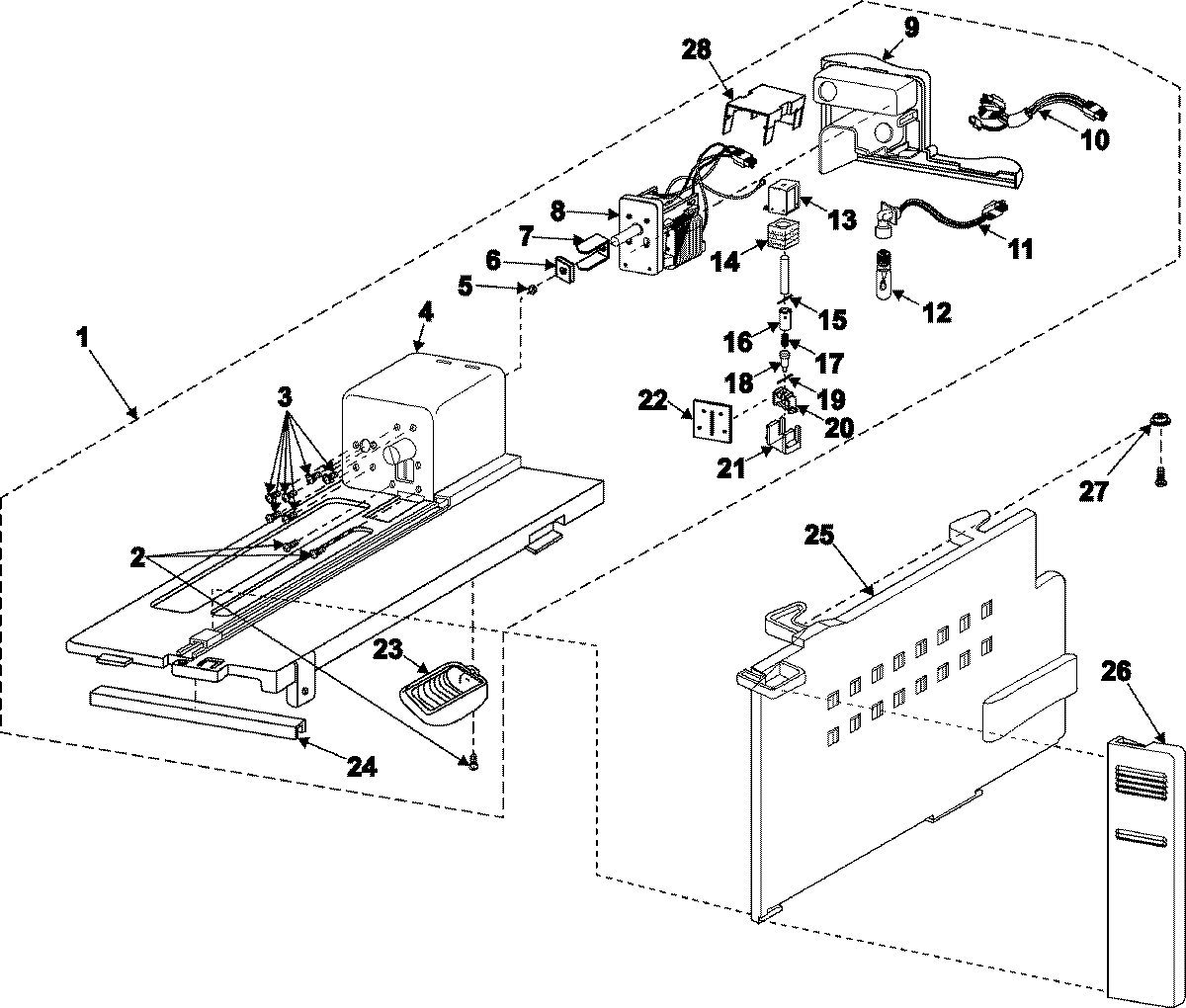

RS2578BB 01 – ENCLOSURE ASSEMBLY

Products

Position	Product
1	MAY DA97-00705A
2	MAY 6002-000471
3	MAY DA60-00001B
4	MAY DA61-00262E
5	MAY DA60-30108A
6	DA71-00163A Samsung Refrigerator Nut Fixer
7	MAY DA70-20017A
8	MAY DA31-00039F
9	MAY DA63-00793B
10	DA96-00036A Samsung Assembly Harness Em
11	MAY DA47-00112C
12	MAY 4713-001197
13	DA74-40151G Samsung Refrigerator Ice Dispenser Solinoid Valve
14	MAY DA72-60348A
15	MAY DA60-90137A
16	MAY DA63-90008A
17	MAY DA61-20140A
18	MAY DA66-90003A
19	MAY DA60-90137B
20	MAY DA65-20107A
21	MAY DA61-60001A
22	MAY DA73-00168A
23	MAY DA63-00785A
24	MAY DA61-00239A
25	MAY DA67-00763B
26	MAY DA63-00784D
27	MAY DA61-01797A
28	SEE NOTE GROUND WIRE, GREEN
