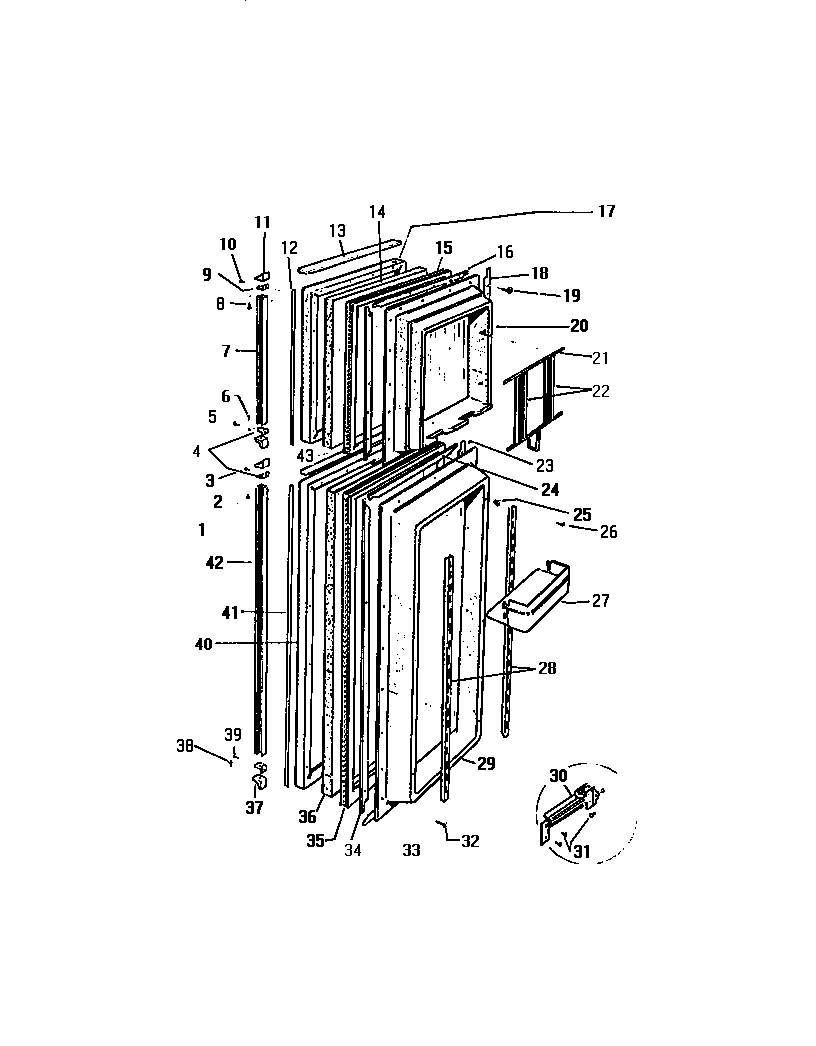

RS259ESD1 02 – FREEZER DOOR ASSEMBLY

Products

Position	Product
1	WCI R900621
3	WCI 404206
7	WCI D7570503
9	WCI 188C433H01
11	WCI D7551701
12	WCI R900288
13	WCI R900205
14	WCI R900284
15	WCI R900285
17D	WCI R900506
18	WCI R900348
20	WCI R900286
21	WCI C8905301
22	WCI C8771824
23	WCI R900246
24	WCI R900338
25	WCI M29201
26	WCI C460310
27	WCI R900248
28	WCI C3627203
29	WCI R900250
30	WCI C620070
31	SCREW (4)
32	218843801 Frigidaire Refrigerator Screw
33	WCI R900283
34	WCI R900247
35	WCI R900249
36	WCI R900264
37	END CAP
38	WCI C401801
39	WCI C404206
40D	WCI R900511
41	WCI R900252
42	WCI D7570502
43	WCI R900347
