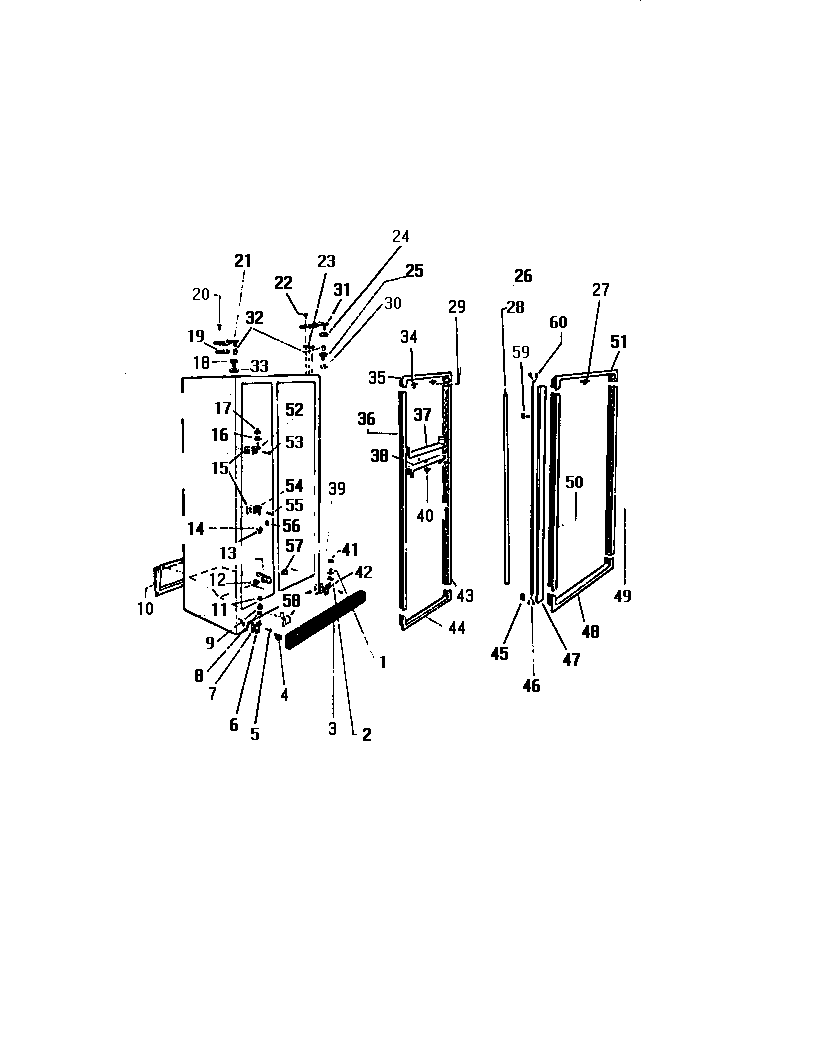

RS259ESH2 06 – BREAKERS, CABINET HINGES & TOE GRIL

RS259ESH2 06 – BREAKERS, CABINET HINGES & TOE GRIL

Written by

in

RS259ESH2 06 – BREAKERS, CABINET HINGES & TOE GRIL

Products

Position	Product
3	WCI C460499
4	WCI M117301
5	WCI C505792
6	WCI R500160
10	WCI C460730
12	WCI A3189501
13	WCI A3187701
15	WCI R900171
15B	WCI R900173
15A	WCI R900172
21	WCI R900424
22	SCREW (4 REQ.)
23B	WCI R900416
23A	WCI R900415
23	WCI R900414
24	WASHER NYLON .054
24A	WASHER NYLON .093
25A	WCI C8852202
25	BEARING OPEN END
28	WCI A3298011
29	WCI R900244
31	WCI R900423
34	WCI B5743601
34A	COVER, SWITCH -2
35	WCI D3953104
36	WCI D7511102
37	WCI D7424401
38	WCI D7424402
39A	WCI C62694
39	WCI C62693
40	WCI C3680304
41	WCI R900491
42	WCI R900159
43	WCI D7511002
44	WCI D3952402
45	WCI A3120801
46	WCI C8867001
47C	WCI C8810404
48	WCI D3952603
49	WCI D7510802
50	WCI D7510902
51	WCI D3952505
52	WCI B5698003
54	WCI R900147
55	WCI Q407702
56	WCI C460348
57	WCI A3187801
58	WCI 85619901
59	WCI C460476
60	WCI B5608001
