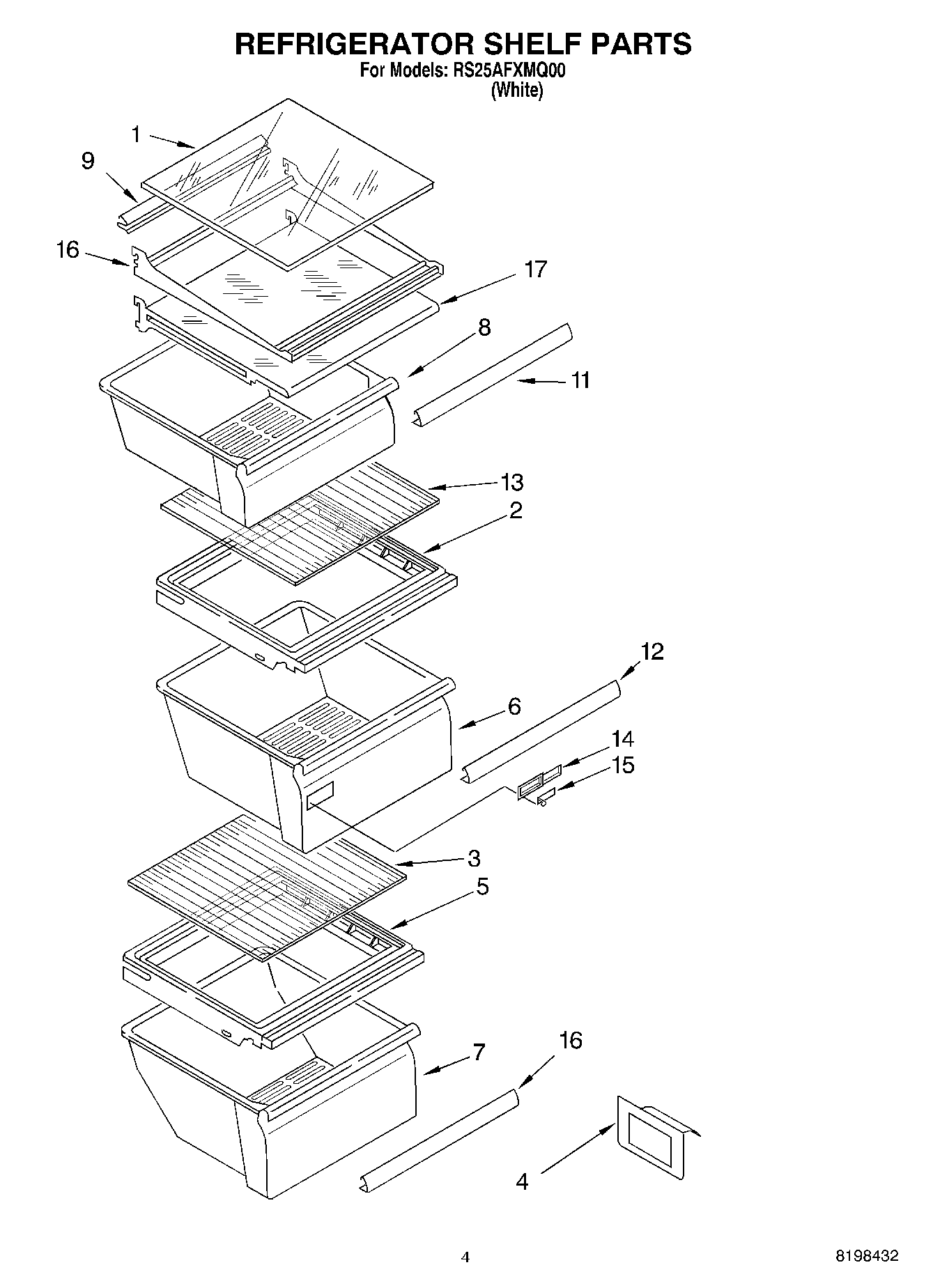

RS25AFXMQ00 03 – REFRIGERATOR SHELF PARTS

RS25AFXMQ00 03 – REFRIGERATOR SHELF PARTS

Written by

in

RS25AFXMQ00 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Shelf, Cantilever (3)
2W10508993 Whirlpool Refrigerator Cover Pan
42179350 Whirlpool Refrigerator Deflector
5Cover, Meat Pan
6PAN-CRISPR
7WP2188664 Whirlpool Dishwasher Meat Crisper Pan
8W11497323 Whirlpool Snack Pan
9Retainer
10Glass (3)
11WP2179243 Whirlpool Refrigerator Pan Trim
13W10864399 Whirlpool Glass Shelf
14WP2179343 Whirlpool Refrigerator Control Body
15WP2179342 Whirlpool Refrigerator Slide
16WP2179234 Whirlpool Refrigerator Pan Trim
17Shelf, Snack Bin
