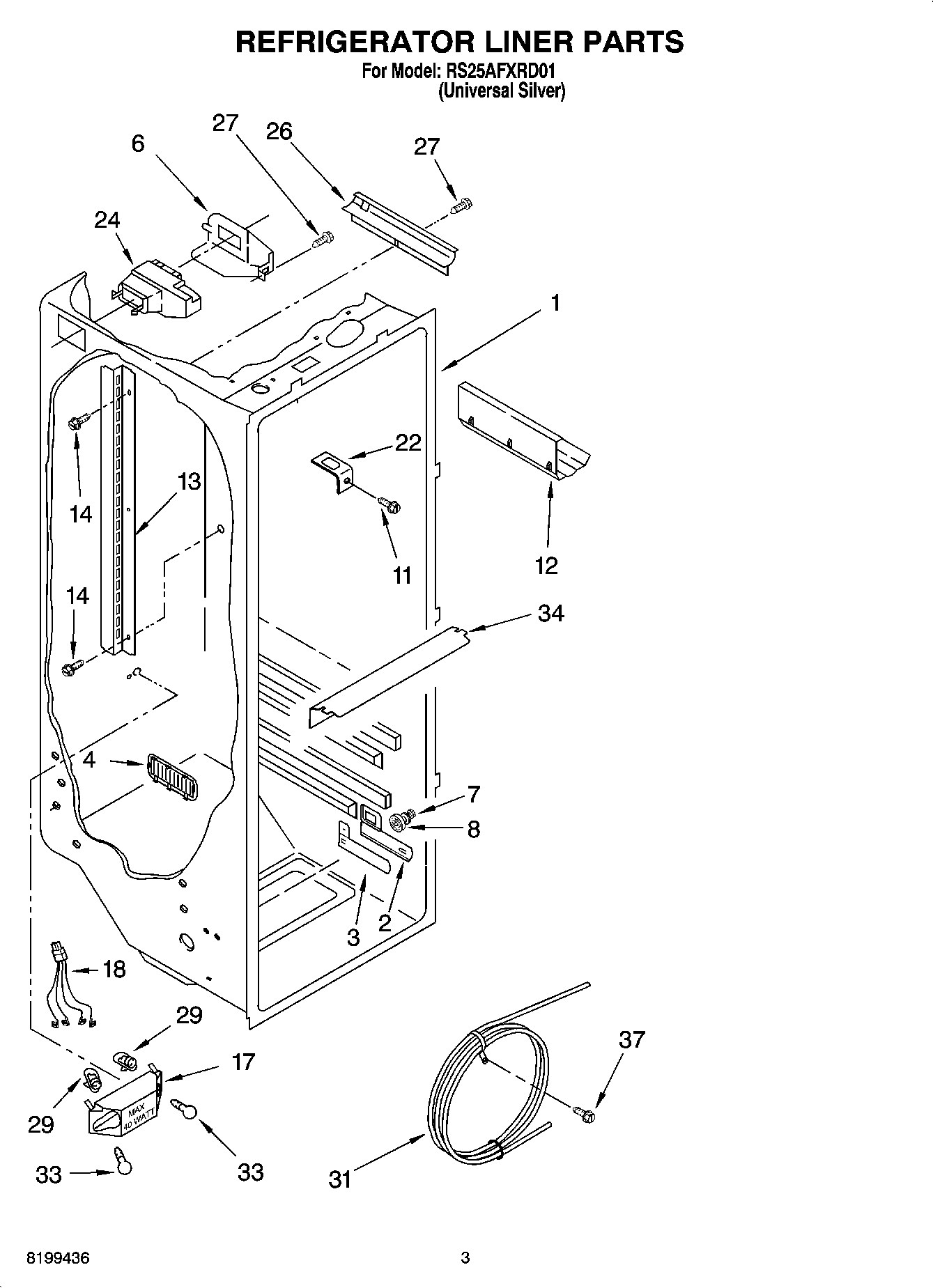

RS25AFXRD01 02 – REFRIGERATOR LINER PARTS

RS25AFXRD01 02 – REFRIGERATOR LINER PARTS

Written by

in

RS25AFXRD01 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
62152019 Whirlpool Refrigerator Cover
7WP3-24004-109 Whirlpool Refrigerator Screw
8W11223328 Whirlpool Refrigerator Shelf Stud
11WP488488 Whirlpool Refrigerator Screw
12W10777924 Whirlpool Refrigerator Wine Rack
13Ladder, Shelf
14WP489478 Whirlpool Refrigerator Screw
17Bracket, Dual Crisper Light
182311637 Whirlpool Refrigerator Wire Harness
22WP2256085 Whirlpool Refrigerator Retainer
24WPW10151374 Whirlpool Refrigerator Diffuser
262150331 Whirlpool Refrigerator Wire Cover
27W10759522 Whirlpool Screw
294387478 Whirlpool Refrigerator Light Socket
31WP2256126 Whirlpool Refrigerator Reservoir
33RANGE ONLY 40W 120V APPL BULB
34Light Lens
37Screw (2)
