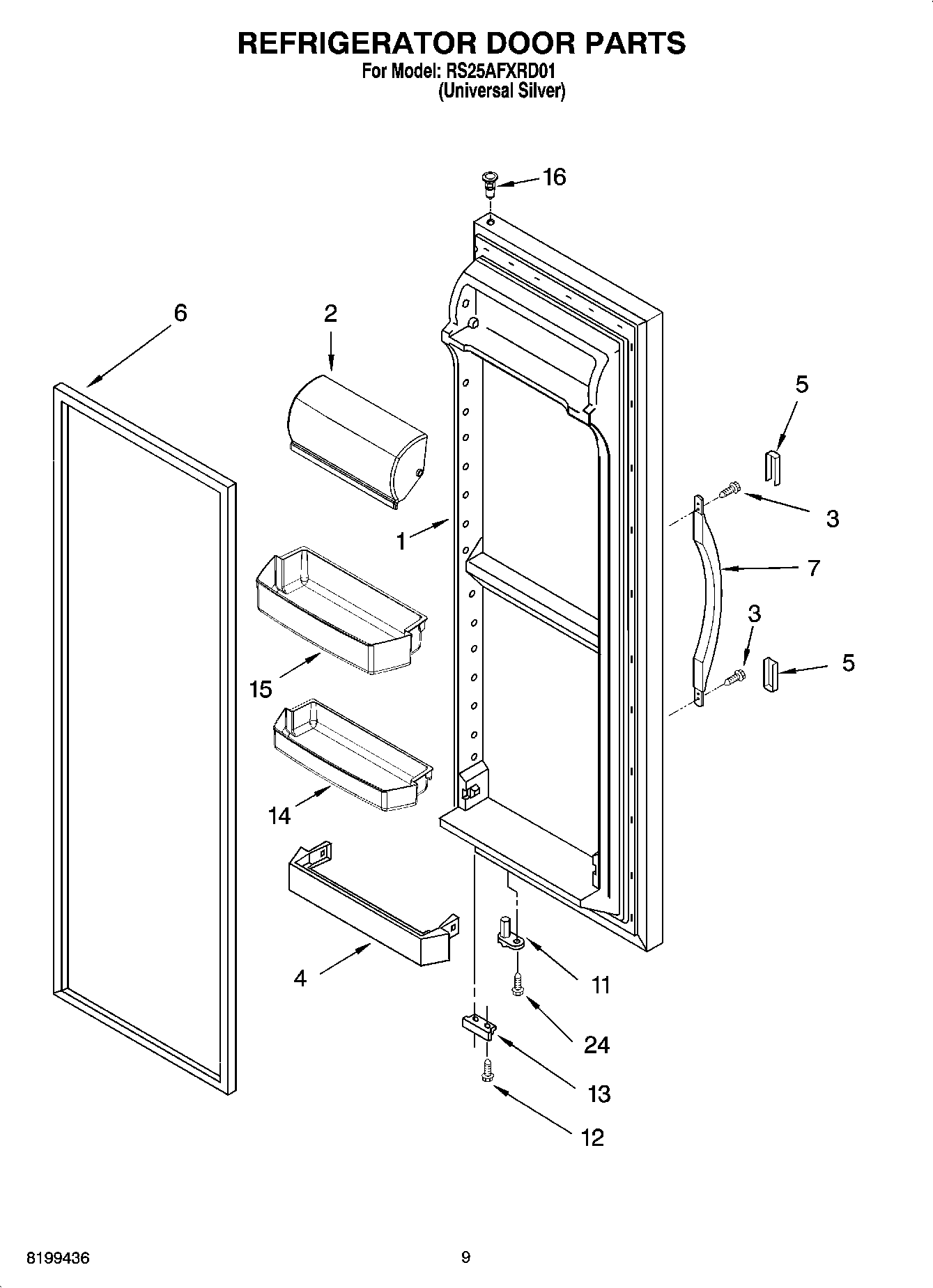

RS25AFXRD01 06 – REFRIGERATOR DOOR PARTS

RS25AFXRD01 06 – REFRIGERATOR DOOR PARTS

Written by

in

RS25AFXRD01 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 8) (Universal Silver)
2WP2256101 Whirlpool Dairy Door
3WP489491 Whirlpool Refrigerator Screw
4WP2177962K Whirlpool Refrigerator Door Trim
5Cover, Trim (Black)
62159083 Whirlpool Gasket Door
7WP2186649B Whirlpool Refrigerator Handle
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13WP2206629B Whirlpool Refrigerator Bracket
14WP2187197K Whirlpool Refrigerator Cantilever Bin
15WP2187172 Whirlpool Refrigerator Door Shelf Bin
16Thimble, Top (For Stainless Steel Models)
24WP3400012 Whirlpool Refrigerator Screw
