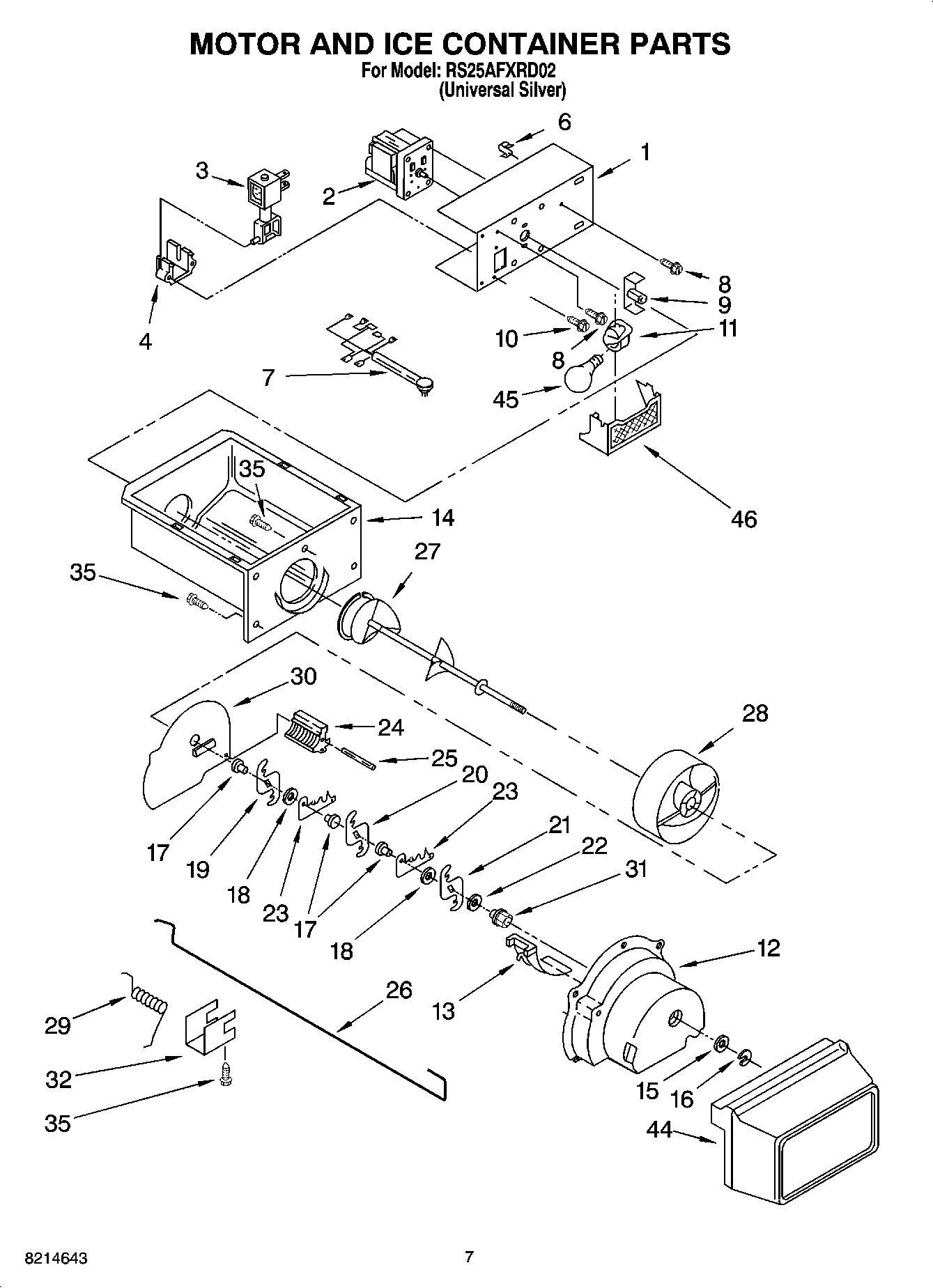

RS25AFXRD02 05 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	Bracket, Motor
2	WP2188242 Whirlpool Refrigerator Motor
3	WP2152713 Whirlpool Refrigerator Solenoid
4	W10850503 Whirlpool Refrigerator Guide
6	WP1115374 Whirlpool Refrigerator Clip
7	2311639 Whirlpool Refrigerator Dispenser Wiring Harness
8	WP489399 Whirlpool Refrigerator Screw
9	COUPLING AUGER MOTOR
10	WP489478 Whirlpool Refrigerator Screw
11	4387478 Whirlpool Refrigerator Light Socket
12	WPW10185018 Whirlpool Refrigerator Housing
13	WP1119017 Whirlpool Refrigerator Deflector
14	WPW10670845 Whirlpool Refrigerator Ice Container
15	489234 Whirlpool Refrigerator Washer
16	WP489236 Whirlpool Refrigerator Ring
17	WP1119005 Whirlpool Refrigerator Spacer
18	WP1119007 Whirlpool Refrigerator Spacer
19	W10278731 Whirlpool Refrigerator Blade
20	W10278732 Whirlpool Refrigerator Blade
21	W10278733 Whirlpool Refrigerator Blade
22	WP489235 Whirlpool Refrigerator Washer
23	Blade, Fixed (2)
24	2157405 Whirlpool Refrigerator Blade Block
25	489229 Whirlpool Refrigerator Roll Pin
26	W11596045 Whirlpool Refrigerator Control Arm
27	W10422851 Whirlpool Ice Maker Bucket Auger
28	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
29	1119020 Whirlpool Refrigerator Spring
30	W10852691 Whirlpool Refrigerator Baffle
31	WP1119018 Whirlpool Refrigerator Bearing
32	1119021 Whirlpool Refrigerator Clip
35	WP488787 Whirlpool Refrigerator Screw
44	Front Cover, Ice Container
45	RANGE ONLY 40W 120V APPL BULB
46	WP2171706 Whirlpool Refrigerator Light Lens
100	WPW10312300 Whirlpool Refrigerator Ice Container
