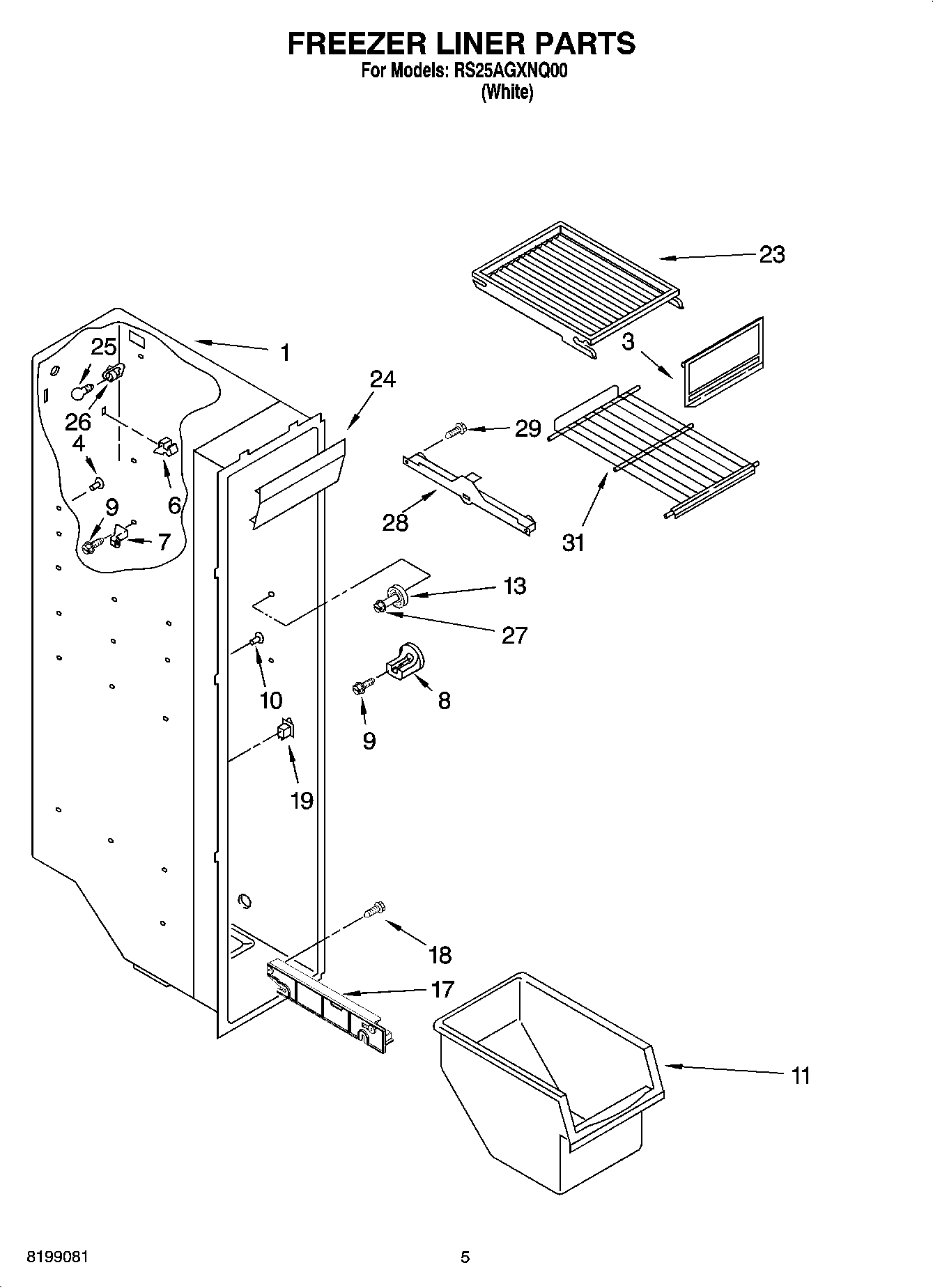

RS25AGXNQ00 04 – FREEZER LINER PARTS

RS25AGXNQ00 04 – FREEZER LINER PARTS

Written by

in

RS25AGXNQ00 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
3WP2171713 Whirlpool Refrigerator Ice Door
4WP941839 Whirlpool Refrigerator Button Plug
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Stud, Rear
9W10142289 Whirlpool Air Conditioner Screw
10Grommet
11WP2182971 Whirlpool Refrigerator Freezer Bin
13WP2196483 Whirlpool Refrigerator Shelf Stud
17Slide, Basket (Left Side)
17WP2261449 Whirlpool Refrigerator Track
18W10759522 Whirlpool Screw
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
23Shelf, Top Compartment
242171705 Whirlpool Refrigerator Light Lens
25RANGE ONLY 40W 120V APPL BULB
264387478 Whirlpool Refrigerator Light Socket
27WP3400806 Whirlpool Screw
28W10845585 Whirlpool Refrigerator Track
28W10845583 Whirlpool Refrigerator Track
29718257 Whirlpool Dishwasher Screw
31WP2174267 Whirlpool Refrigerator Wire Shelf
31Shelf (2)
