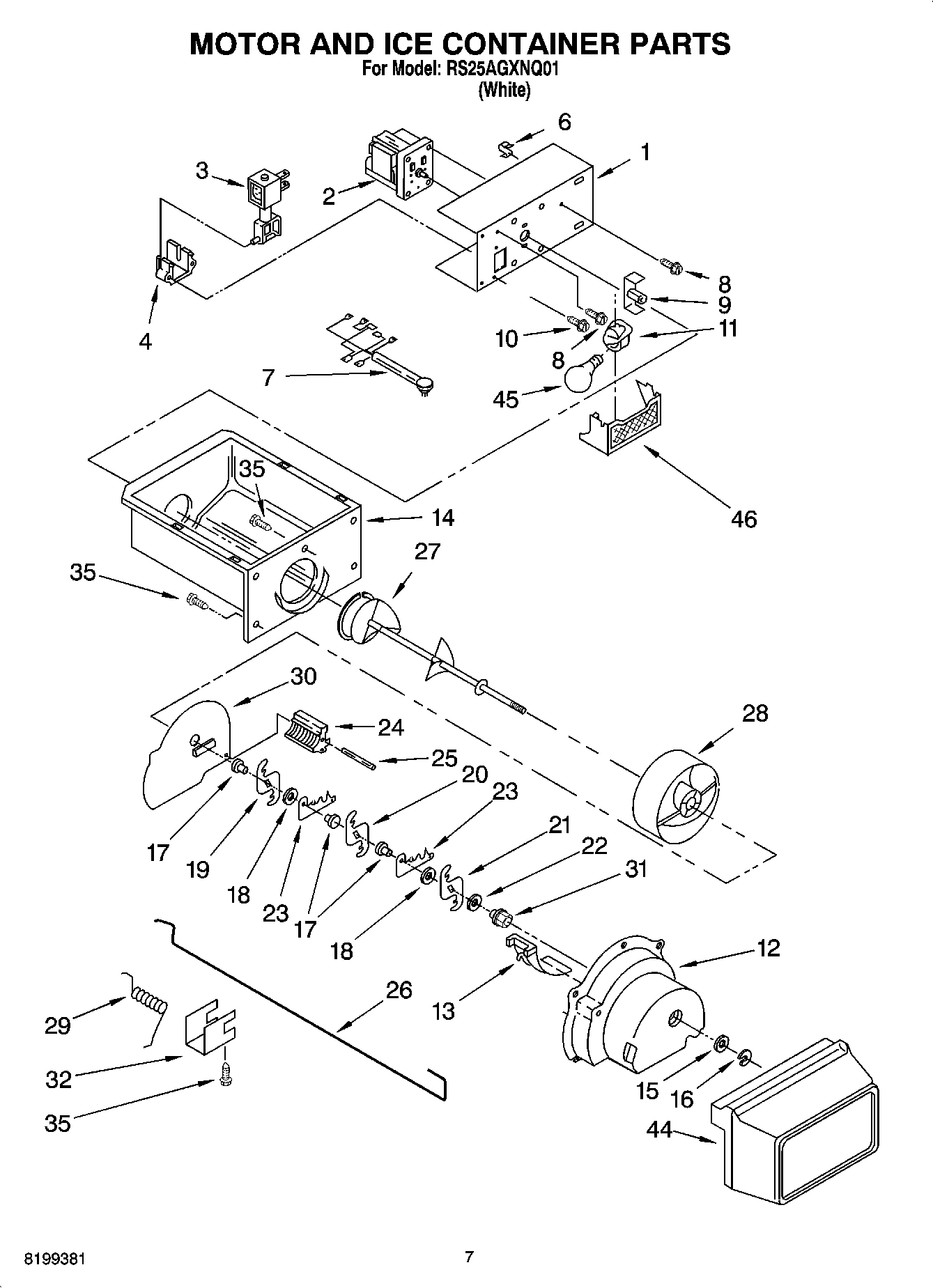

RS25AGXNQ01 05 – MOTOR AND ICE CONTAINER PARTS

RS25AGXNQ01 05 – MOTOR AND ICE CONTAINER PARTS

Written by

in

RS25AGXNQ01 05 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1Bracket, Motor
2WP2188242 Whirlpool Refrigerator Motor
3WP2152713 Whirlpool Refrigerator Solenoid
4W10850503 Whirlpool Refrigerator Guide
6WP1115374 Whirlpool Refrigerator Clip
72311639 Whirlpool Refrigerator Dispenser Wiring Harness
8WP489399 Whirlpool Refrigerator Screw
9COUPLING AUGER MOTOR
10WP489478 Whirlpool Refrigerator Screw
114387478 Whirlpool Refrigerator Light Socket
12WPW10185018 Whirlpool Refrigerator Housing
13WP1119017 Whirlpool Refrigerator Deflector
14WPW10670845 Whirlpool Refrigerator Ice Container
15489234 Whirlpool Refrigerator Washer
16WP489236 Whirlpool Refrigerator Ring
17WP1119005 Whirlpool Refrigerator Spacer
18WP1119007 Whirlpool Refrigerator Spacer
19W10278731 Whirlpool Refrigerator Blade
20W10278732 Whirlpool Refrigerator Blade
21W10278733 Whirlpool Refrigerator Blade
22WP489235 Whirlpool Refrigerator Washer
23Blade, Fixed (2)
242157405 Whirlpool Refrigerator Blade Block
25489229 Whirlpool Refrigerator Roll Pin
26W11596045 Whirlpool Refrigerator Control Arm
27W10422851 Whirlpool Ice Maker Bucket Auger
284388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
291119020 Whirlpool Refrigerator Spring
30W10852691 Whirlpool Refrigerator Baffle
31WP1119018 Whirlpool Refrigerator Bearing
321119021 Whirlpool Refrigerator Clip
35WP488787 Whirlpool Refrigerator Screw
44Front Cover, Ice Container
45RANGE ONLY 40W 120V APPL BULB
46WP2171706 Whirlpool Refrigerator Light Lens
