RS25AGXNQ02 06 – REFRIGERATOR DOOR PARTS

RS25AGXNQ02 06 – REFRIGERATOR DOOR PARTS

Written by

in

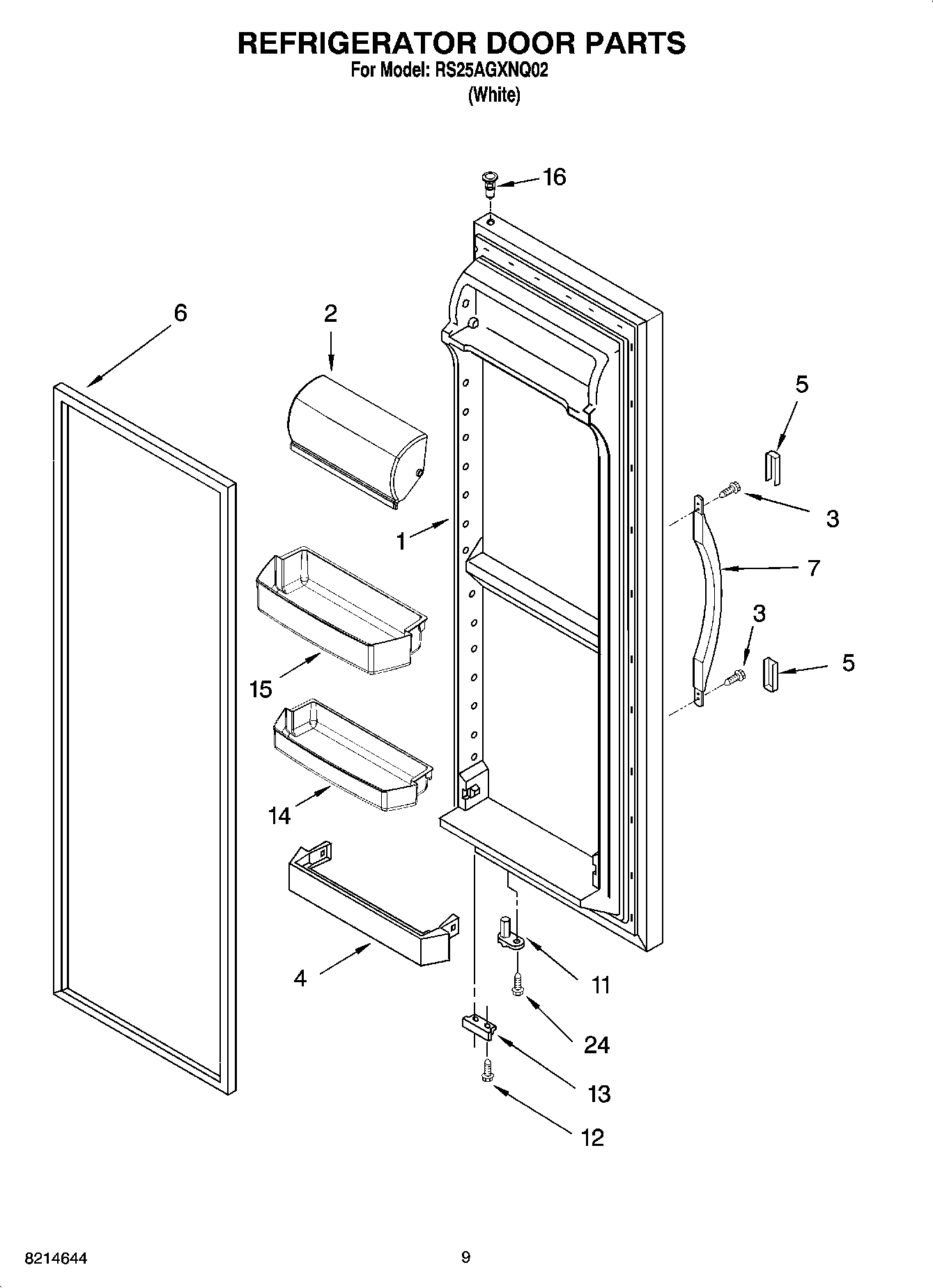

RS25AGXNQ02 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 6) )(WHITE)
2WP2256101 Whirlpool Dairy Door
3WP489491 Whirlpool Refrigerator Screw
4WP2177962K Whirlpool Refrigerator Door Trim
5WP2193353W Whirlpool Refrigerator Trim Handle
62159075 Whirlpool Door Gasket Seal
7Handle, Center (White)
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13WP2206629B Whirlpool Refrigerator Bracket
14WP2187197K Whirlpool Refrigerator Cantilever Bin
15WP2187172 Whirlpool Refrigerator Door Shelf Bin
16WP2182181 Whirlpool Refrigerator Thimble
24WP3400012 Whirlpool Refrigerator Screw
