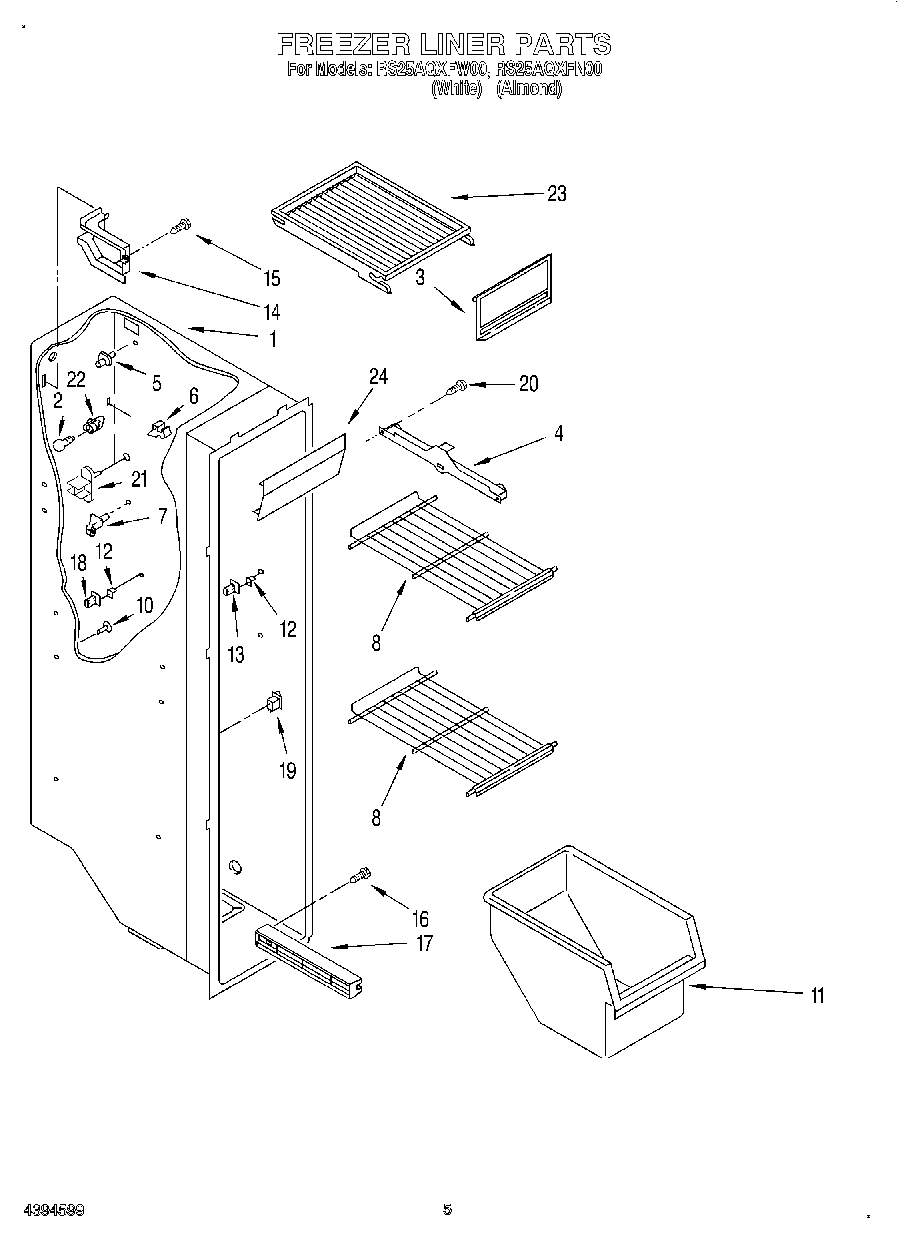

RS25AQXFN00 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	RANGE ONLY 40W 120V APPL BULB
3	WP2171713 Whirlpool Refrigerator Ice Door
4	W10845583 Whirlpool Refrigerator Track
4	W10845585 Whirlpool Refrigerator Track
5	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	WP2174267 Whirlpool Refrigerator Wire Shelf
8	Shelf (2)
10	Grommet
11	WP2182971 Whirlpool Refrigerator Freezer Bin
12	Stud, Support
13	Stud, Front R.S.
14	Cover, Wiring
15	SCREW
16	W11693756 Whirlpool Screw Assembly
17	Slide, Basket (Left Side (2))
17	Slide, Basket (Right Side (2))
18	Stud, Rear R.S.
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	718257 Whirlpool Dishwasher Screw
21	Stud, Shelf (4)
22	4387478 Whirlpool Refrigerator Light Socket
23	Shelf, Top Compartment
24	2171705 Whirlpool Refrigerator Light Lens
