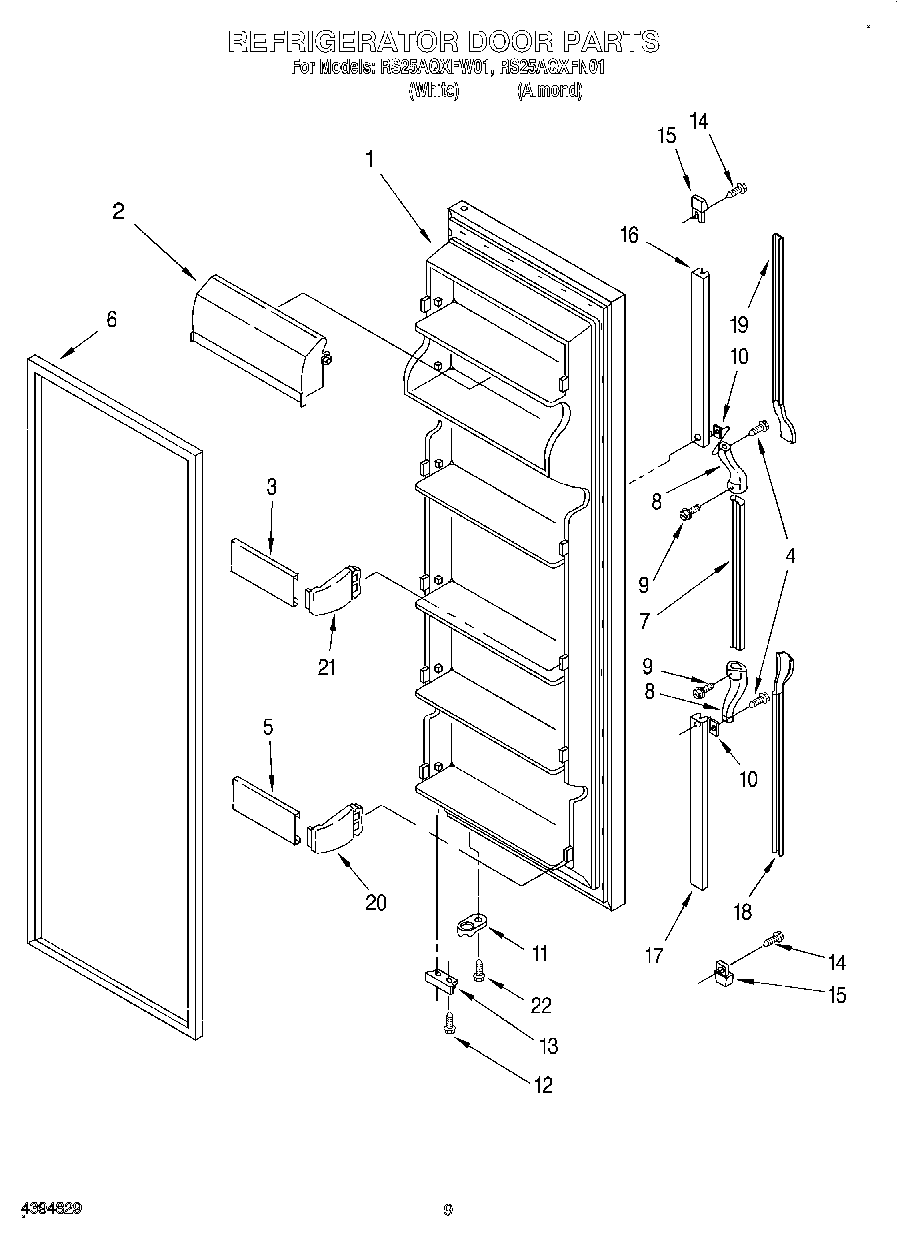

RS25AQXFN01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Almond)
2	WP2256101 Whirlpool Dairy Door
3	Trim, Door Shelf
4	WP489463 Whirlpool Refrigerator Screw
5	WP2256010 Whirlpool Door Shelf Trim
6	2159075 Whirlpool Door Gasket Seal
7	Handle, Center (White)
7	Handle, Center (Almond)
8	End Cap, Center Handle
9	Screw
10	Shim
11	4318165 Whirlpool Refrigerator Door Closure Cam Kit
12	WP489483 Whirlpool Screw
13	Bracket, Door Stop (Chrome)
14	WP3400852 Whirlpool Refrigerator Screw
15	End Cap (2)
16	Retainer, Top
17	Retainer, Bottom
18	Insert, Bottom (Almond)
18	Insert, Bottom (White)
19	Insert, Top (White)
19	Insert, Top (Almond)
20	ENDCAP
21	WP2195915 Whirlpool Door Shelf Support
22	WP3400012 Whirlpool Refrigerator Screw
