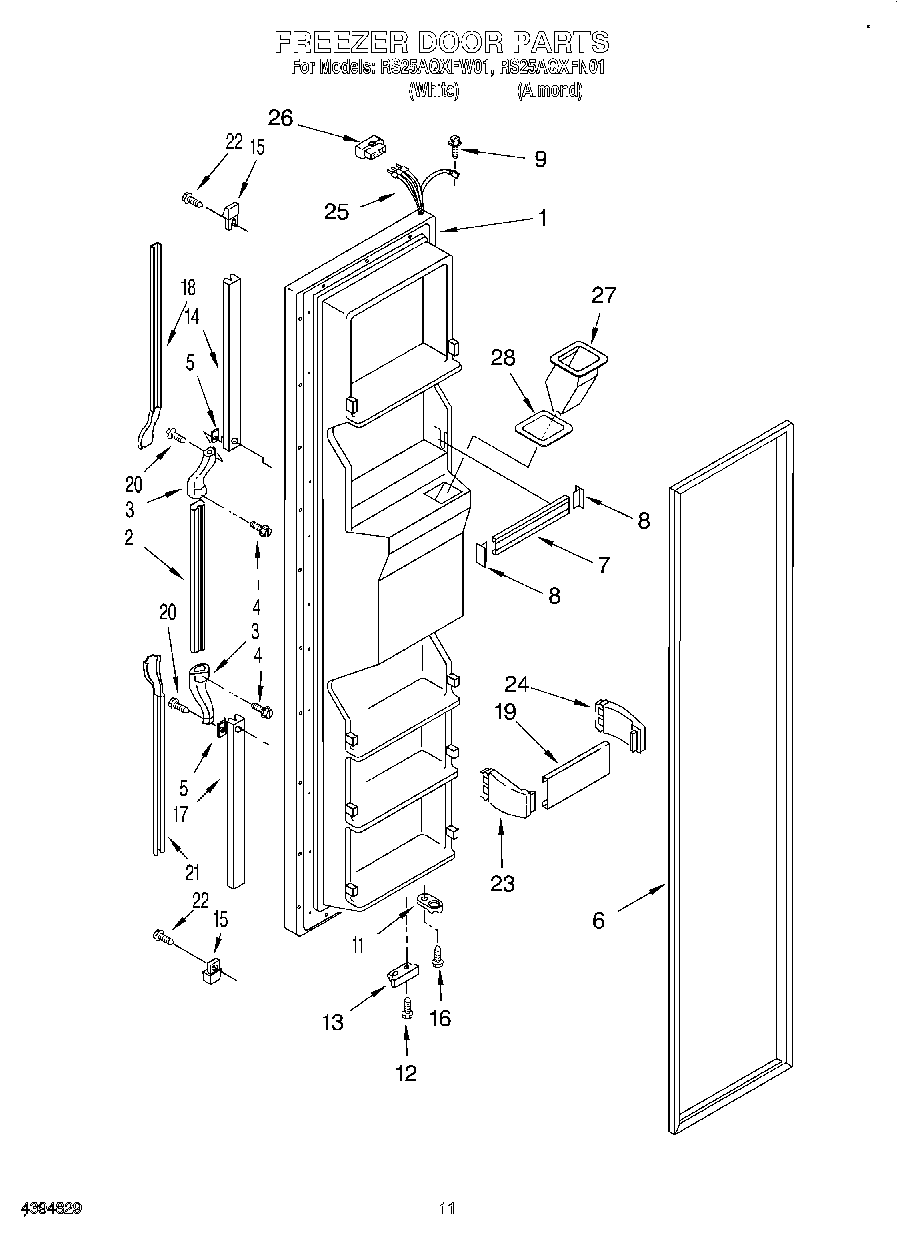

RS25AQXFW01 07 – FREEZER DOORadmin2025-04-26T12:48:32+00:00RS25AQXFW01 07 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door (White) |
| 1 | Freezer Door (Almond (Includes Item No.6 And Dispenser Front Parts)) |
| 2 | Handle, Center (White) |
| 2 | Handle, Center (Almond) |
| 3 | End Cap, Center Handle |
| 4 | Screw |
| 5 | Shim |
| 6 | 2159074 Whirlpool Door Gasket Seal |
| 7 | WPW10307490 Whirlpool Door Trim Assembly |
| 8 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 9 | WP489128 Whirlpool Refrigerator Screw |
| 11 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 12 | WP489483 Whirlpool Screw |
| 13 | Bracket, Door Stop (Chrome) |
| 14 | Retainer, Top |
| 15 | End Cap (2) |
| 16 | WP3400012 Whirlpool Refrigerator Screw |
| 17 | Retainer, Bottom |
| 18 | Insert, Top (White) |
| 18 | Insert, Top (Almond) |
| 19 | Trivet, Shelf (4) |
| 20 | WP489463 Whirlpool Refrigerator Screw |
| 21 | Insert, Bottom (Almond) |
| 21 | Insert, Bottom (White) |
| 22 | WP3400852 Whirlpool Refrigerator Screw |
| 23 | WP2195917K Whirlpool Refrigerator Endcap |
| 24 | ENDCAP |
| 25 | Wiring Harness |
| 26 | WP2154473 Whirlpool Refrigerator Connector |
| 27 | Chute, Ice |
| 28 | Seal, Housing |
