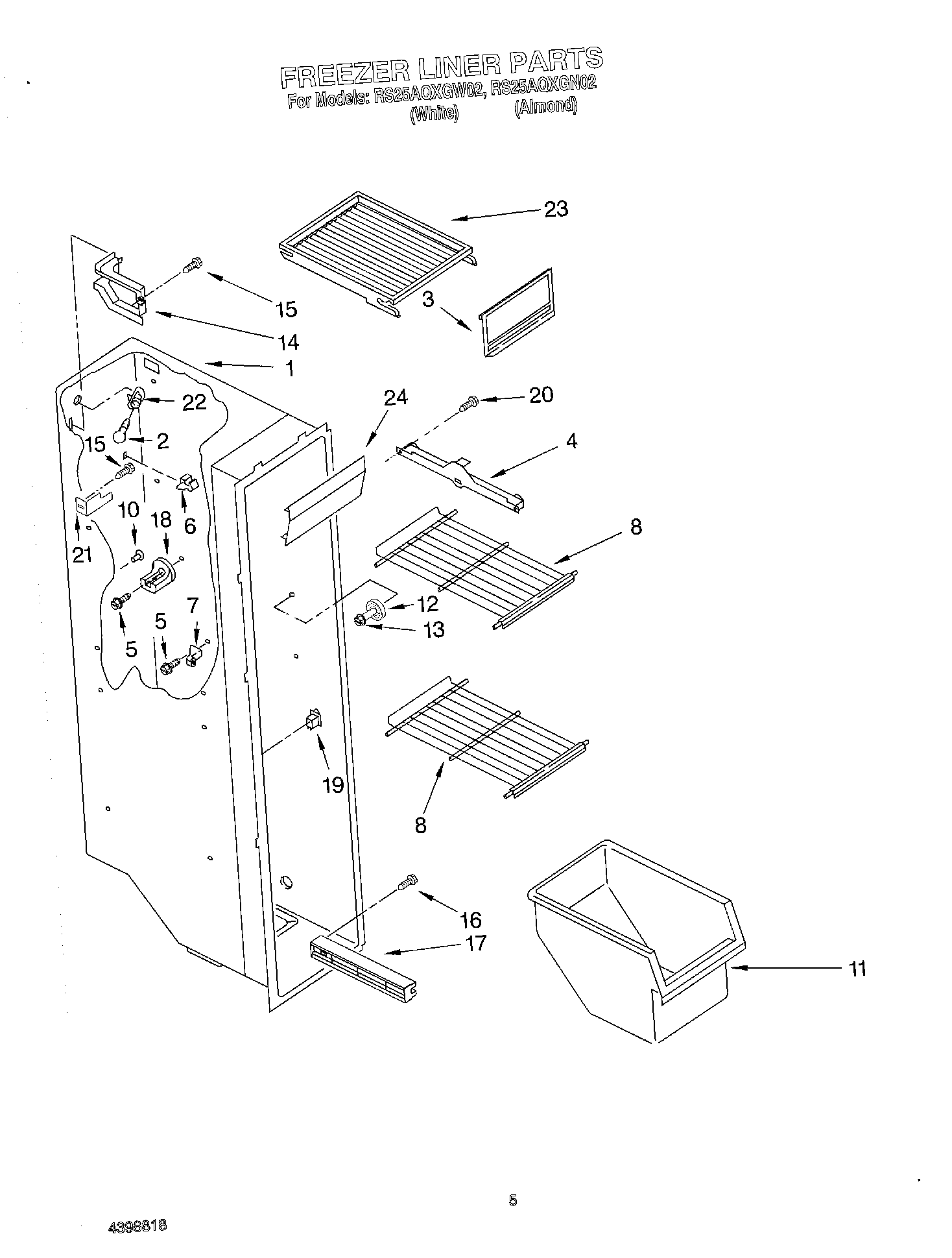

RS25AQXGN02 04 – FREEZER LINER

RS25AQXGN02 04 – FREEZER LINER

Written by

in

RS25AQXGN02 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2RANGE ONLY 40W 120V APPL BULB
3WP2171713 Whirlpool Refrigerator Ice Door
4W10845583 Whirlpool Refrigerator Track
4W10845585 Whirlpool Refrigerator Track
5W10142289 Whirlpool Air Conditioner Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8WP2174267 Whirlpool Refrigerator Wire Shelf
8Shelf (2)
10Grommet
11WP2182971 Whirlpool Refrigerator Freezer Bin
12WP2196483 Whirlpool Refrigerator Shelf Stud
13WP3400806 Whirlpool Screw
14Cover, Wiring
15SCREW
16W10759522 Whirlpool Screw
17Slide, Basket (Right Side (2))
17Slide, Basket (Left Side (2))
18Stud, Rear
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20718257 Whirlpool Dishwasher Screw
21Bracket, Fill Tube
224387478 Whirlpool Refrigerator Light Socket
23Shelf, Top Compartment
242171705 Whirlpool Refrigerator Light Lens
