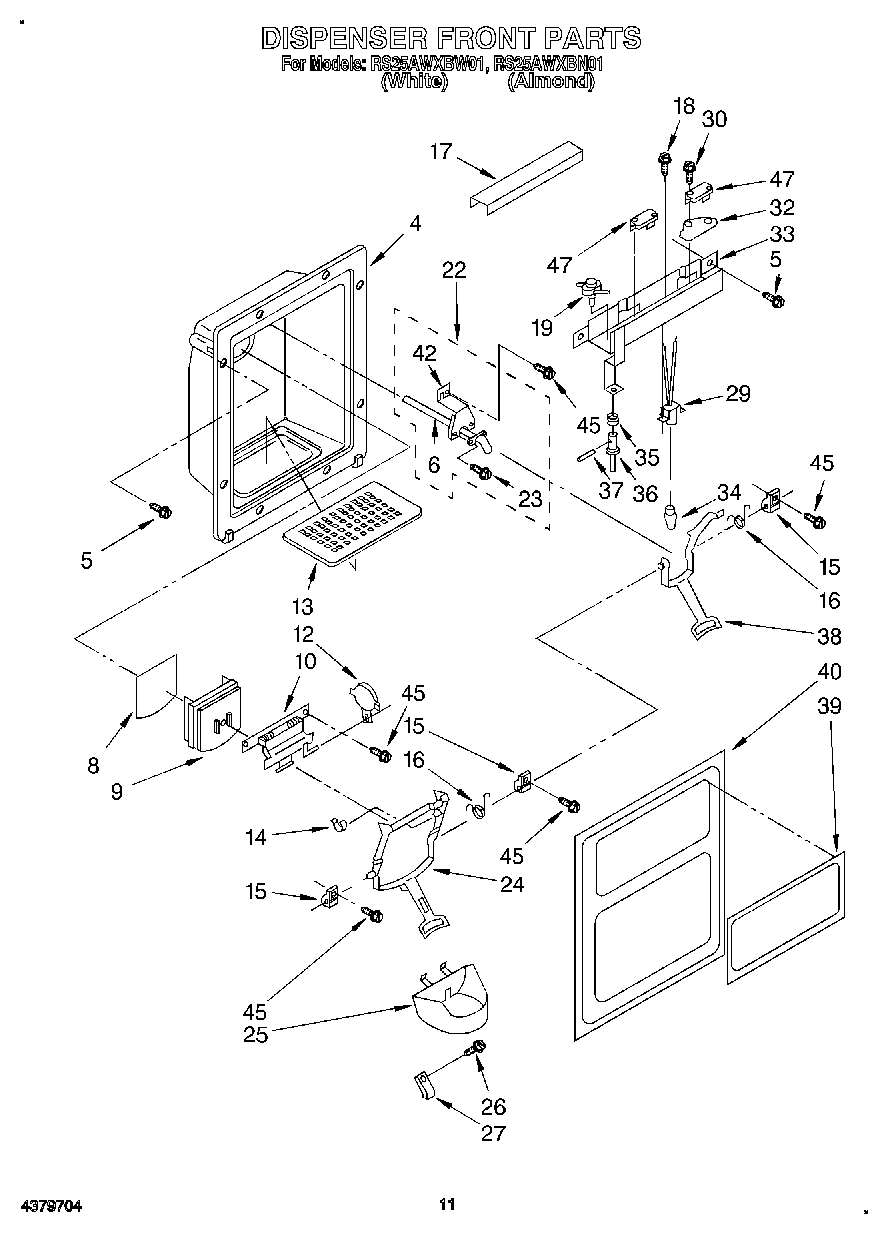

RS25AWXBW01 08 – DISPENSER FRONT

Products

Position	Product
4	Housing, Dispenser (Not a Serviceable Part)
5	W11693756 Whirlpool Screw Assembly
6	Tube, Water (See Item No.22)
8	Shield, Ice Door
9	WP2180353 Whirlpool Dispenser Door
10	Door Mechanism Assembly
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow (White)
13	Grille, Overflow (Almond)
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
19	Switch, Light
22	WP4388152 Whirlpool Refrigerator Fitting
23	WP965173 Whirlpool Dishwasher Screw
24	Lever, Ice Dispenser (Almond)
24	Lever Assembly, Ice Dispenser (White)
25	Guide, Ice (White)
25	Guide, Ice (Almond)
26	Screw
27	Stop, Glass (White)
27	Stop, Glass (Almond)
29	Socket, Lamp
30	Screw
32	Insulator, Switch (2)
33	Bracket, Control
34	WP22002263 Whirlpool Dryer 10W Light Bulb
35	Spring, Plunger
36	Plunger
37	Pin, Retainer
38	Lever, Water Dispenser (Almond)
38	Lever Assembly, Water Dispenser (White)
39	Plaque, Front Cover (White)
39	Plaque, Front Cover (Almond)
40	Front Cover, Housing (Includes Item 39) (White)
40	Front Cover, Housing (Includes Item 39) (Almond)
42	Bracket, Water
45	WP3400906 Whirlpool Refrigerator Screw
47	WP2162361 Whirlpool Switch
