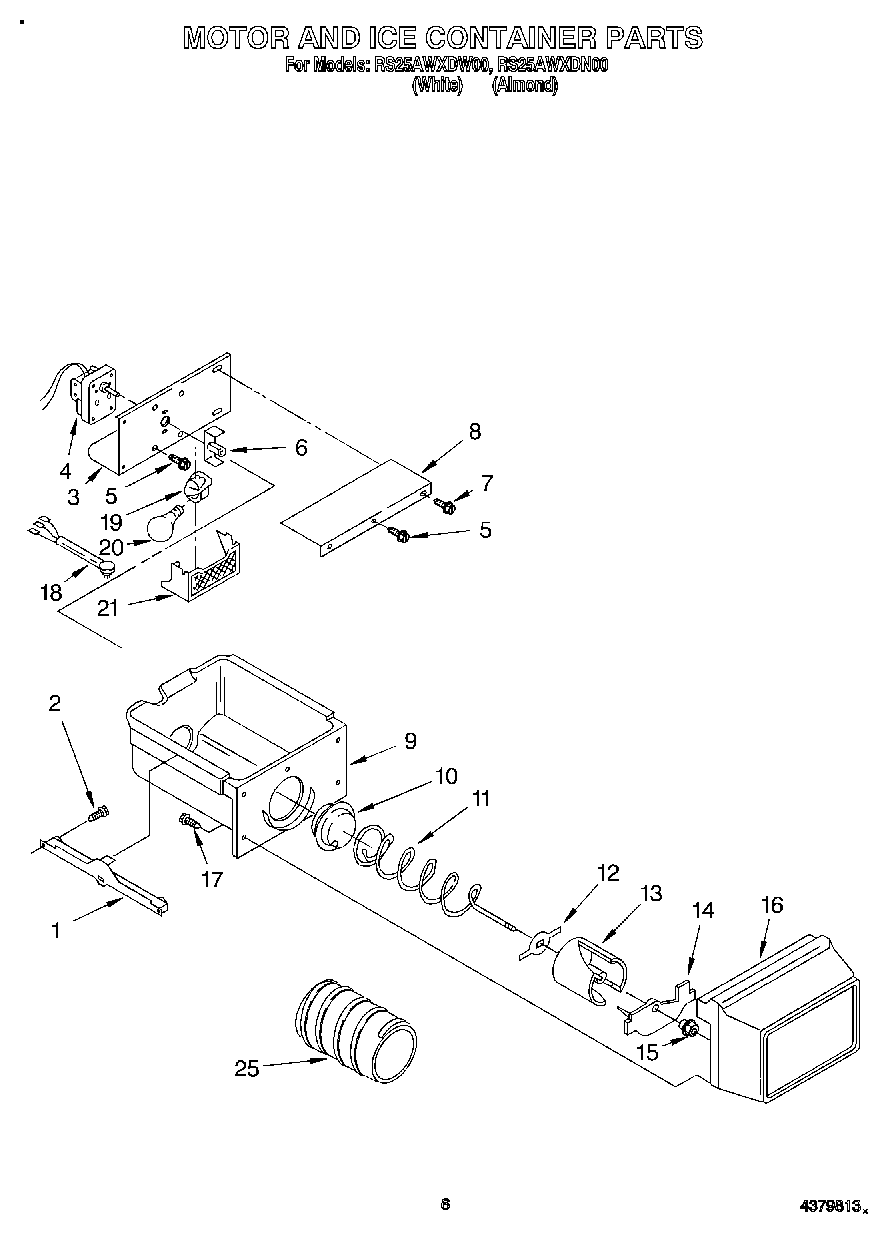

RS25AWXDW00 05 – MOTOR AND ICE CONTAINER

RS25AWXDW00 05 – MOTOR AND ICE CONTAINER

Written by

in

RS25AWXDW00 05 – MOTOR AND ICE CONTAINER

Products

PositionProduct
1W10845585 Whirlpool Refrigerator Track
1W10845583 Whirlpool Refrigerator Track
2718257 Whirlpool Dishwasher Screw
3Bracket, Ice Dispenser
4Motor
5WP489399 Whirlpool Refrigerator Screw
6COUPLING AUGER MOTOR
7WP489478 Whirlpool Refrigerator Screw
8Cover, Motor
9WPW10670845 Whirlpool Refrigerator Ice Container
10W10749708 Whirlpool Refrigerator Coupling
11Conveyor
124388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
14Baffle
15Nut, Bearing
16Front Cover
17WP488787 Whirlpool Refrigerator Screw
18Wiring Assembly, Ice Dispenser
194387478 Whirlpool Refrigerator Light Socket
20RANGE ONLY 40W 120V APPL BULB
21WP2171706 Whirlpool Refrigerator Light Lens
254317870 Whirlpool Refrigerator Auger Sleeve
